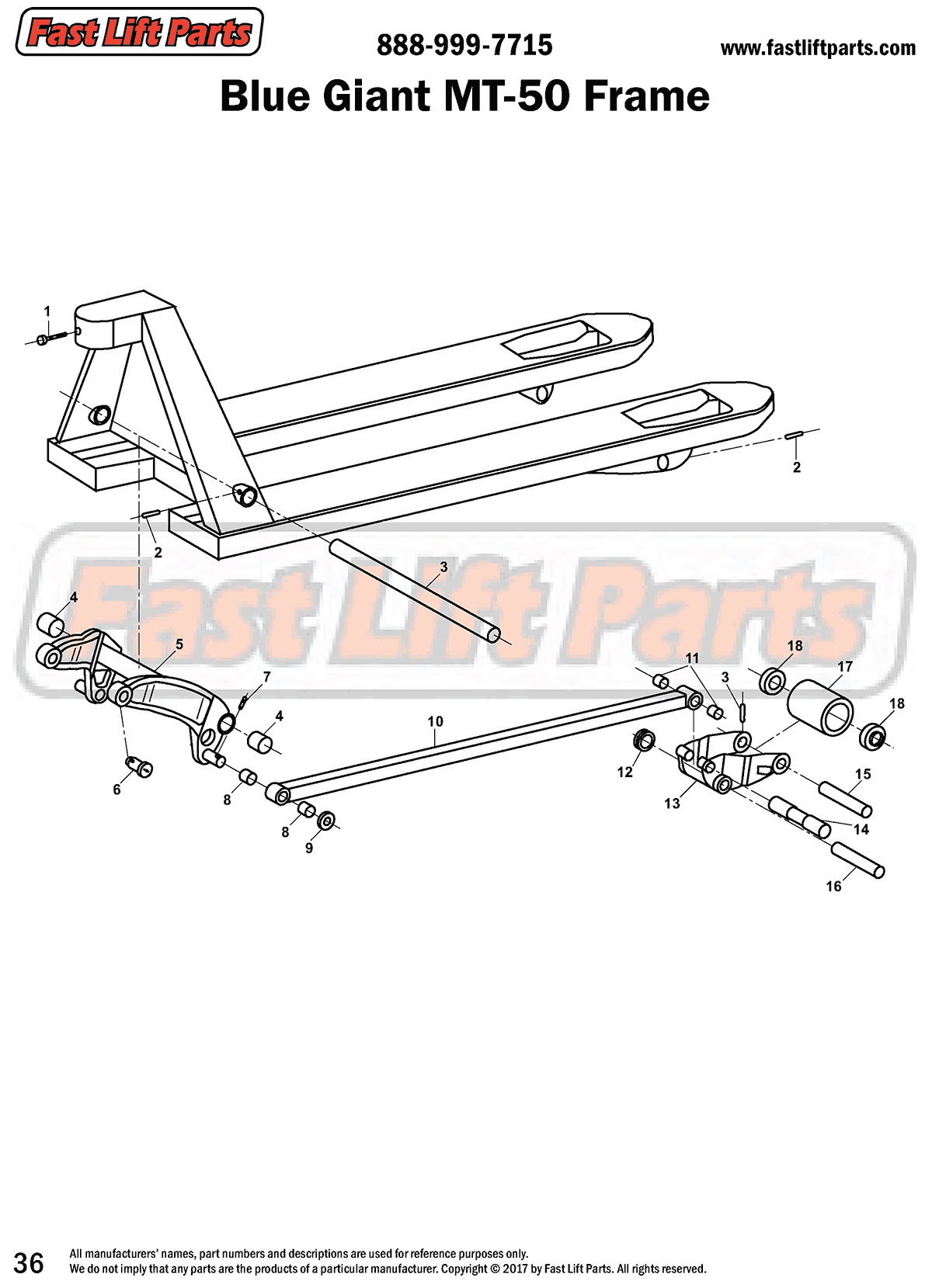

  • Blue Giant MT-50 Frame Line Drawing
1 of 1

Blue Giant

*Blue Giant MT-50 Frame

Identify your part using this line drawing of the frame.

Locate a part on the hydraulic unit.

  1. BG 906-0100 Bolt
  2. BG 906-0076 Roll Pin
  3. BG 906-0074 Lifting Link Shaft
  4. BG 906-0017 Bushing
  5. No Longer Available
  6. BG 906-0046 Shoulder Pin
  7. BG 906-0042 Cotter Pin
  8. BG 906-0018 Bushing
  9. BG 906-0048 Washer
  10. BG 906-0085 Push Rod
  11. BG 906-0022 Bushing
  12. BG 906-0004 Exit Roller
  13. BG 906-0095 Load Roller Bracket
  14. BG 906-0015 Push Rod Axle
  15. BG 906-0013 Load Roller Axle
  16. BG 906-0014 Pivot Axle
  17. Load Roller Assembly Options
  18. BG 906-0041 Ball Bearing

This item is either out of stock or cannot be ordered online. Please call to confirm price, availability, and/or freight costs.
