*Blue Giant PT-50/PT-55 Hydraulic Unit

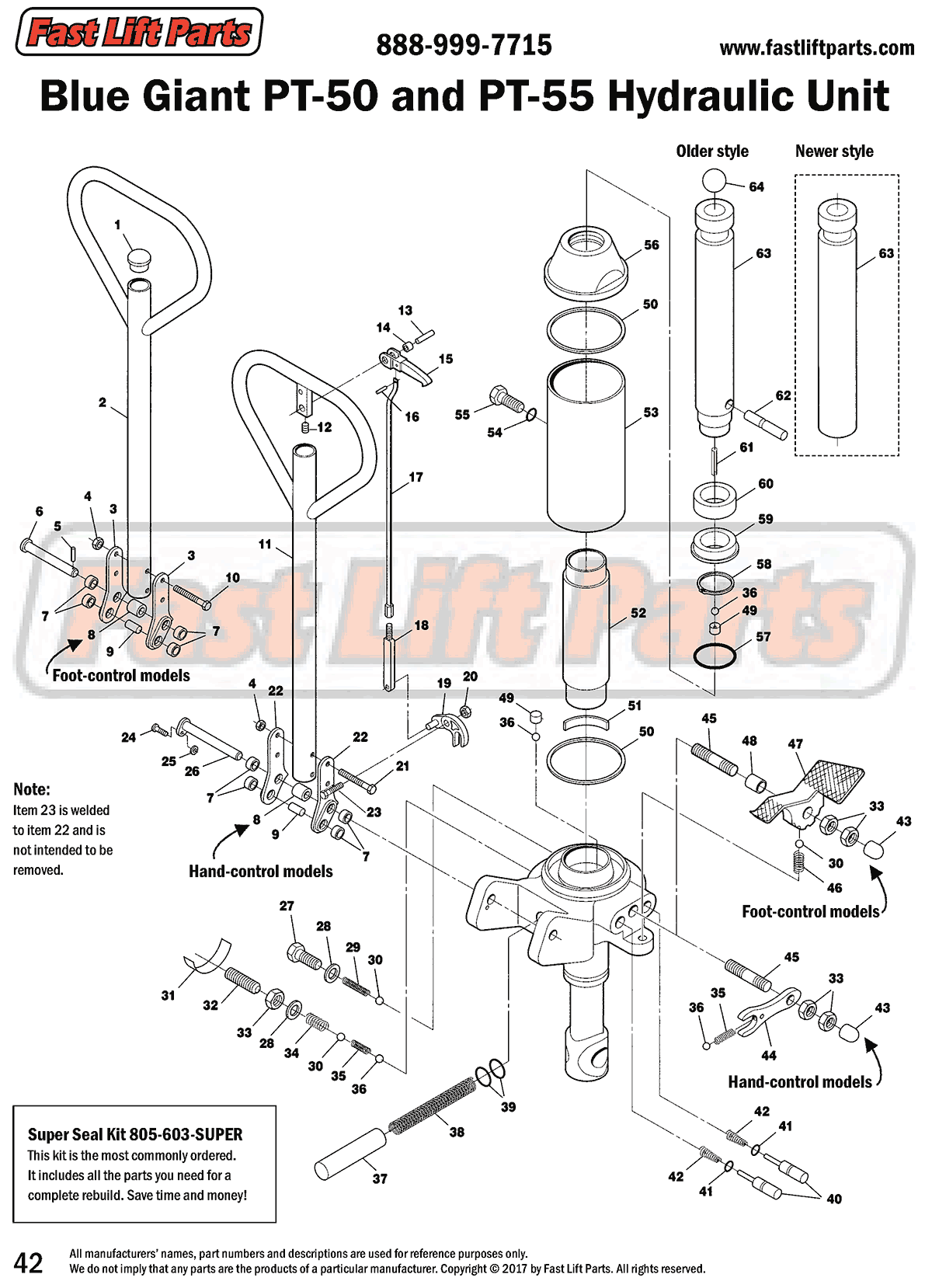

Identify your part using this line drawing of the Hydraulic Unit.

Locate a part on the frame.

  1. BG 037-011 Handle Plug
  2. BG 796-463 Handle Frame
  3. BG 805-621-M Handle Bracket
  4. BG 011-552 Nut
  5. BG 013-010 Roll Pin
  6. BG 107-797 Handle Pin
  7. BG 018-001 Bushing
  8. BG 108-314 Roller
  9. BG 108-319 Pin
  10. BG 010-094 Bolt
  11. BG 794-476 Handle Frame
  12. BG 014-016 Set Screw-Newer
    BG 014-002 Set Screw-Older
  13. BG 108-219 Pin
  14. BG 108-222 Spacer
  15. BG 108-216 Control Lever
  16. BG 104-063 Roll Pin
  17. BG 792-425 Control Rod
  18. BG 792-424 Lower Control Rod
  19. BG 108-217 Release Lever
  20. BG 011-569 Nut
  21. BG 010-082 Bolt
  22. BG 805-621-M Handle Bracket
  23. BG 010-095 Screw
  24. BG 012-254 Shim
  25. BG 794-364 Handle Pin
  26. BG 010-031 Screw Plug
  27. BG 104-008 Washer
  28. BG 104-064 Spring
  29. BG 105-734 Ball
  30. BG 036-069 Tape Seal
  31. BG 014-046 Screw Plug
  32. BG 011-520 Nut
  33. BG 104-006 Spring
  34. BG 104-065 Spring
  35. BG 105-733 Ball
  36. BG 103-315 Piston
  37. BG 104-021 Spring
  38. BG 036-043 O-Ring
  39. BG 797-489 Valve
  40. BG 036-035 O-Ring
  41. BG 104-066 Spring
  42. BG 037-017 Plastic Cover
  43. BG 108-215 Pedal Plate
  44. BG 104-072 Stud
  45. BG 104-060 Spring
  46. BG 797-490 Foot Pedal
  47. BG 018-075 Bushing
  48. BG 104-069 Ball Retainer
  49. BG 106-566 Washer
  50. BG 106-903 Magnetic Tape
  51. No Longer Available
  52. No Longer Available
  53. BG 107-781 O-Ring
  54. BG 010-054 Screw
  55. No Longer Available
  56. BG 036-042 O-Ring
  57. BG 013-036 Snap Ring
  58. BG 036-038 U-Cup (Older Style)
    BG 036-206 U-Cup (Newer Style)
  59. BG 104-071 Sleeve
  60. BG 104-063 Roll Pin
  61. BG 104-070 Pin
  62. No Longer Available
  63. BG 018-523 Ball
