BT

*BT L 2000/L 2300 Hydraulic Unit

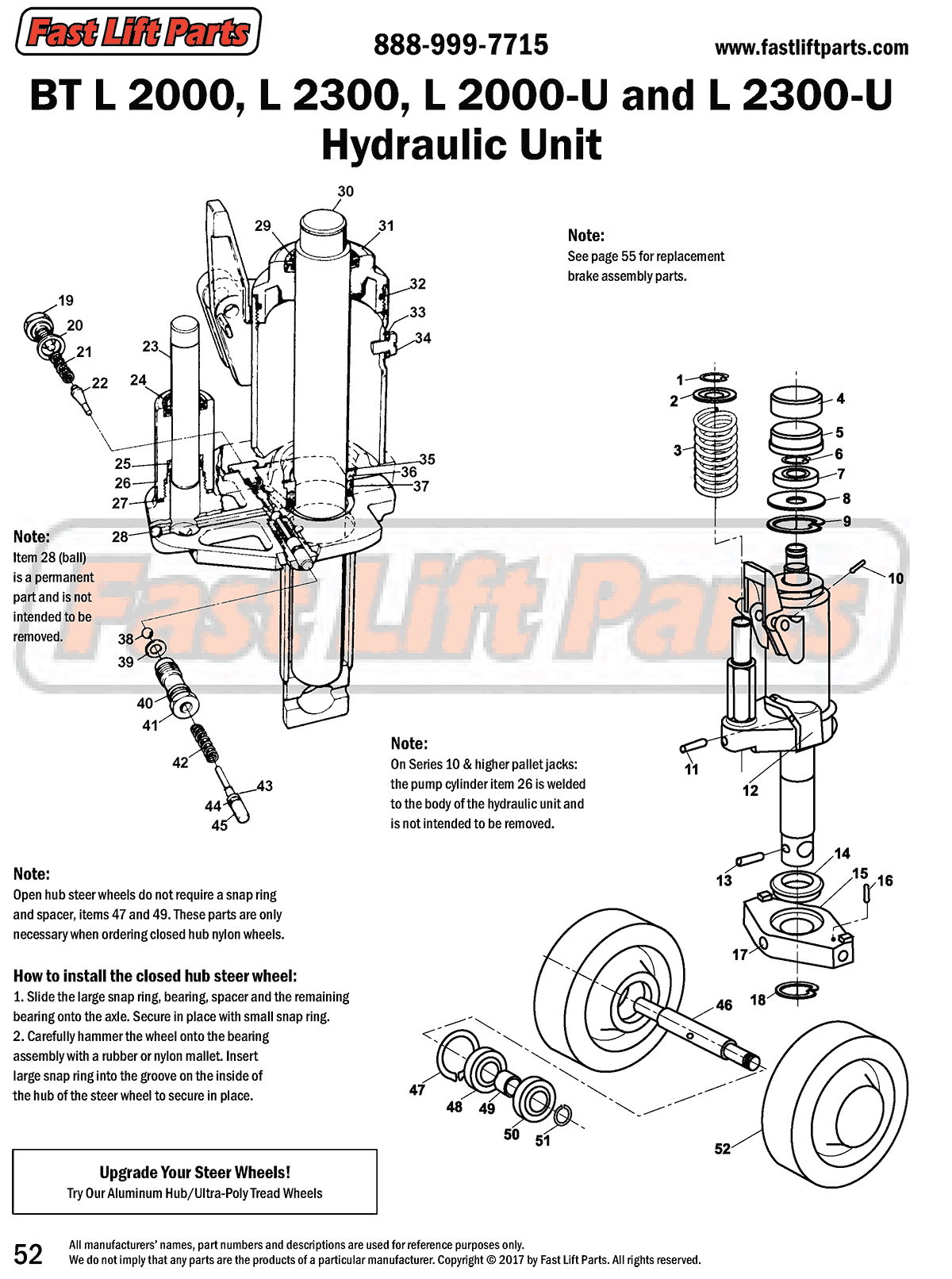

Identify your part using this line drawing of the Hydraulic Unit.

Locate a part on the frame.

  1. BT 20043 Snap Ring
  2. BT 47450 Washer
  3. BT 65245 Spring
  4. BT 47997 Insert
  5. BT 47996 Bearing Cap, Steel
    BT 47996 Bearing Cap, Steel
    BT 164675 Bearing Cap, Nylon
  6. BT 20041 Snap Ring
  7. BT 20018 Bearing
  8. BT 47995 Washer
  9. BT 20076 Snap Ring
  10. BT 20071 Roll Pin
  11. BT 20104 Roll Pin
  12. BT 47070 Release Lever
  13. BT 20868 Roll Pin
  14. BT 22052 Traverse Bearing
  15. BT 47092 Traverse
  16. BT 20001 Roll Pin
  17. BT 20026 Grease Fitting
  18. BT 20011 Snap Ring
  19. BT 43713 Screw Plug
  20. BT 37218 Washer
  21. BT 39106 Spring
  22. BT 47049 Valve
  23. BT 47043 Piston
    BT 130168 Piston (series 10-12)
  24. BT 21060 Scraper
  25. BT 21065 U-Cup (Series 10)
    BT 22033 U-Cup
  26. BT 47042 Pump Cylinder
  27. BT 47044 Washer
  28. BT 20066 Scraper
  29. BT 47985 Ram
  30. BT 47037 Top Nut
  31. BT 21024 O-Ring
  32. BT 21742 Washer
  33. BT 20345 Filler Plug
  34. BT 20101 Snap Ring
  35. BT 47039 Bushing
  36. BT 22034 U-Cup
  37. BT 20065 Ball
  38. BT 47050 Washer
  39. BT 22032 O-Ring
  40. BT 129209 Release Pin Guide
  41. BT 47071 Spring
  42. BT 49513 Spring Guide
  43. BT 22318 Scraper
  44. BT 47051 Release Pin
  45. BT 47144 Steer Wheel Axle
  46. BT 20923 Snap Ring
  47. BT 22123 Bearing
  48. BT 47149 Spacer
  49. BT 20332 Bearing
  50. BT 20019 Snap Ring
  51. Steer Wheel Assembly Options

Kits:

BT 131866-AM Aftermarket Hydraulic Unit Assembly

BT 22311-AM Seal Kit (Use for BT 131866-AM ONLY)
