*BT LHM 230 Frame

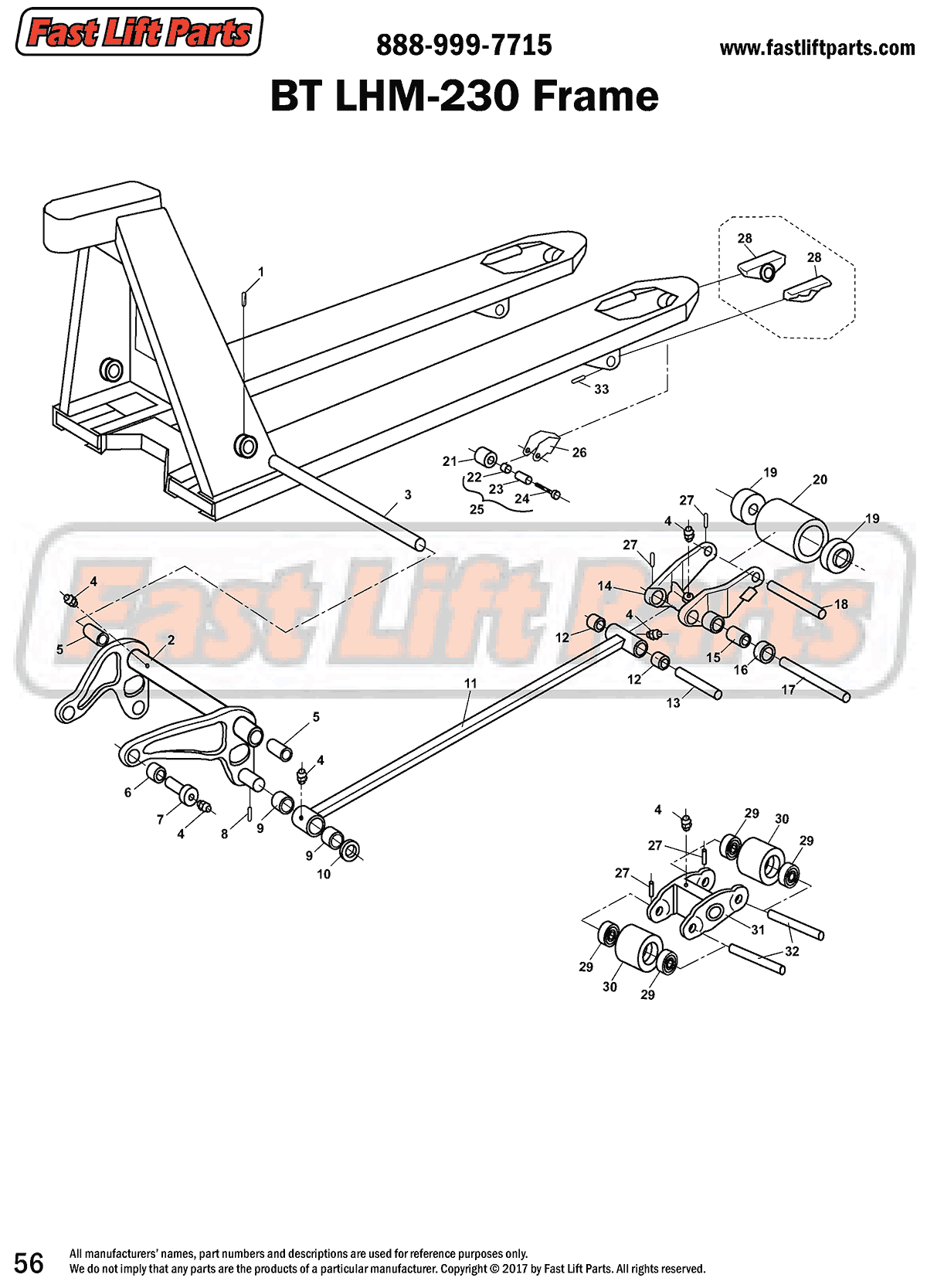

Identify your part using this line drawing of the frame.

Locate a part on the hydraulic unit.

  1. BT 22128 Roll Pin
  2. BT 47157 Lifting Link, 27 inch Wide Jack
  3. BT 64183 Lifting Link, 27 inch Wide Jack
  4. BT 27662 Grease Fitting
  5. BT 47167 Bushing
  6. BT 30018 Bushing
  7. BT 166701 Shoulder Pin
  8. BT 20001 Roll Pin
  9. BT 51805 Bushing
  10. BT 20013 Washer
  11. BT 157213 Push Rod, 48 inch Forks
  12. BT 47117 Bushing
  13. BT 126131 Push Rod Axle
  14. BT 149466 Load Roller Bracket
  15. BT 51805 Bushing
  16. BT 66367 Exit Roller
  17. BT 47134 Pivot Axle
  18. BT 47133 Load Roller Axle
    BT 179393 SS Load Wheel Axle, Wet App
  19. BT 167630 Bearing
  20. Load Roller Assembly Options
  21. BT 47150 Entry Roller
  22. BT 20433 Nut
  23. BT 47151 Sleeve
  24. BT 21385 Bolt
  25. BT 21385-A Entry Roller Assembly
  26. BT 47110 Entry Roller Bracket
  27. BT 20001 Roll Pin
  28. BT 47135 Ear-Weldment
  29. BT 167630 Bearing
  30. BT 167612 Load Roller Assy, Tandem
  31. BT 179206 Tandem Load Roller Bracket
  32. BT 47162 Load Roller Axle, Tandem
  33. BT 27921 Roll Pin
