*Crown Later PTH Hydraulic Unit

(Serial # 3-183850 & higher)

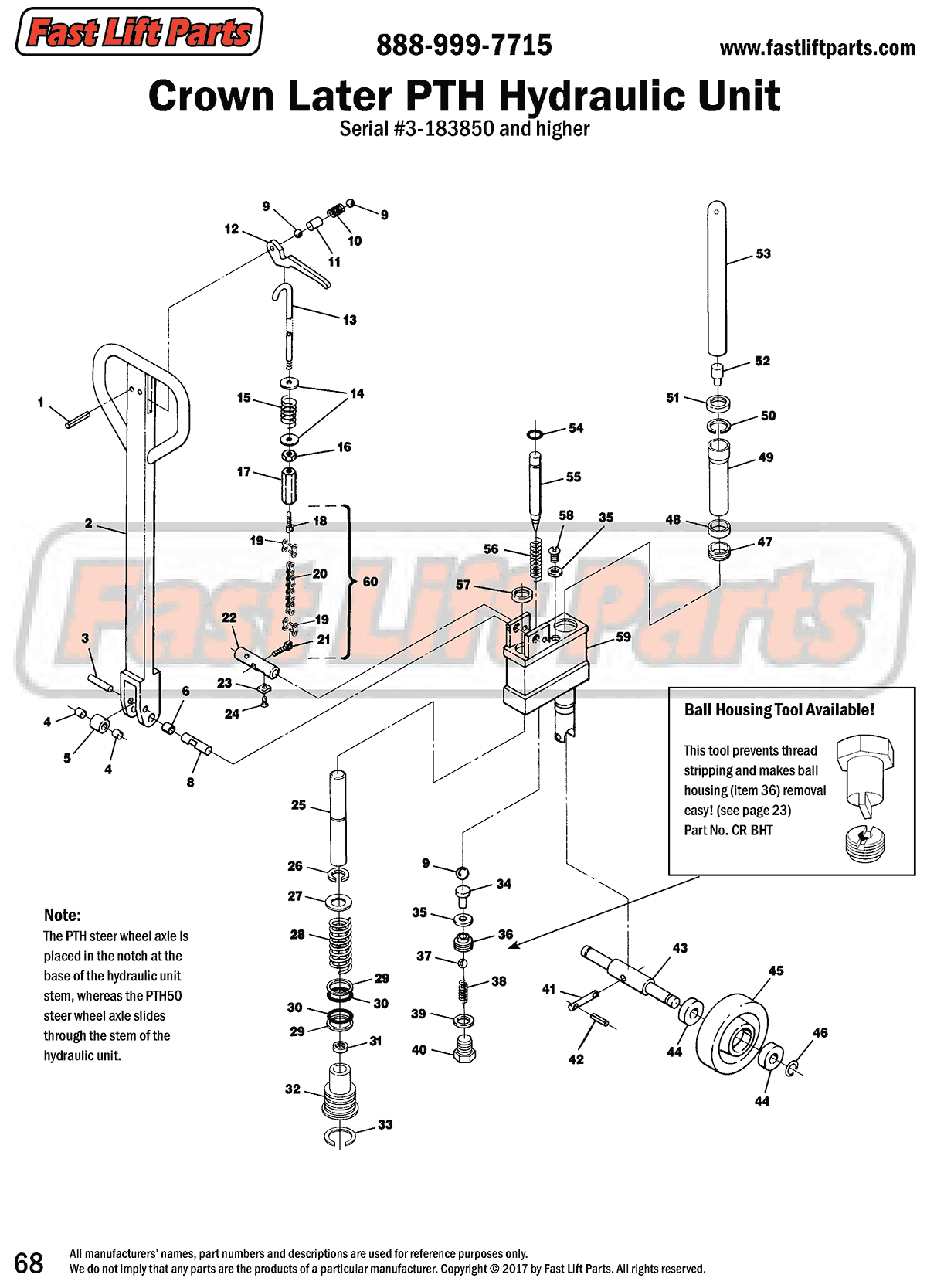

Identify your part using this line drawing of the Hydraulic Unit.

Locate a part on the frame.

1. CR 50000-012 Roll Pin
2. CR 41293 Handle Assembly
   (includes Items 1-6 and 9-17)
3. CR 41191 Roller Axle
4. CR 55017-002 Roller Bearing
5. CR 41192 Roller
6. CR 41194 Bushing
8. CR 41252 Handle Axle
9. CR 55001-007 Ball
10. CR 41292 Spring
11. CR 41326 Sleeve
12. CR 41325 Control Lever
13. CR 41295 Control Rod
14. CR 41193 Washer
15. CR 79918 Spring
16. CR 50008-008 Nut
17. CR 41190 Adjusting Nut
18. CR 41180 Chain Connector
19. CR 79905 Master Link
20. CR 79904 Chain
21. CR 41272 Chain Connector
22. CR 41302 Pin
23. CR 41303 Actuating Plate
24. CR 50003-012 Screw
25. CR 41996 Piston CR 41999 Piston & Cylinder Assy
    (includes Items 25,29-32)
26. CR 50012-021 Snap Ring
27. CR 41170 Washer
28. CR 79908 Spring
29. CR 64074-005 Back-Up Ring
30. CR 54002-012 O-Ring
31. CR 54015-004 U-Cup
32. CR 41995 Pump Cylinder
33. CR 50012-026 Snap Ring
34. CR 41286 Tappet
35. CR 50011-010 Washer
36. CR 41289 Ball Housing
37. CR 55001-002 Ball
38. CR 41288 Spring
39. CR 50011-020 Washer
40. CR 41301 Screw Plug
41. CR 41195 Pin
42. CR 50000-001 Roll Pin
43. CR 41270 Steer Wheel Axle
44. CR 65081-020 Bearing
45. Steer Wheel Assembly Options
46. CR 50012-021 Snap Ring
47. CR 41166 Bushing
48. CR 54015-001 U-Cup
49. CR 41165 Bushing
50. CR 50012-025 Snap Ring
51. CR 54001-008 Scraper
52. CR 41254 Magnet & Sleeve Assembly
53. CR 41163 Ram Assembly
    (includes Item 52)
54. CR 54002-011 O-Ring
55. CR 41284 Release Pin
56. CR 79915 Spring
57. CR 54001-002 Scraper
58. CR 41181 Filler Plug
59. Not available
60. CR 79904-A Chain Assembly
    (includes Items 18-21)
61. CR 41295-A Pull Rod Chain Assy
    (includes Items 13-21)

Kits:

• CR 43023-Super (Super Seal Kit)
• CR 43023 Seal Kit
