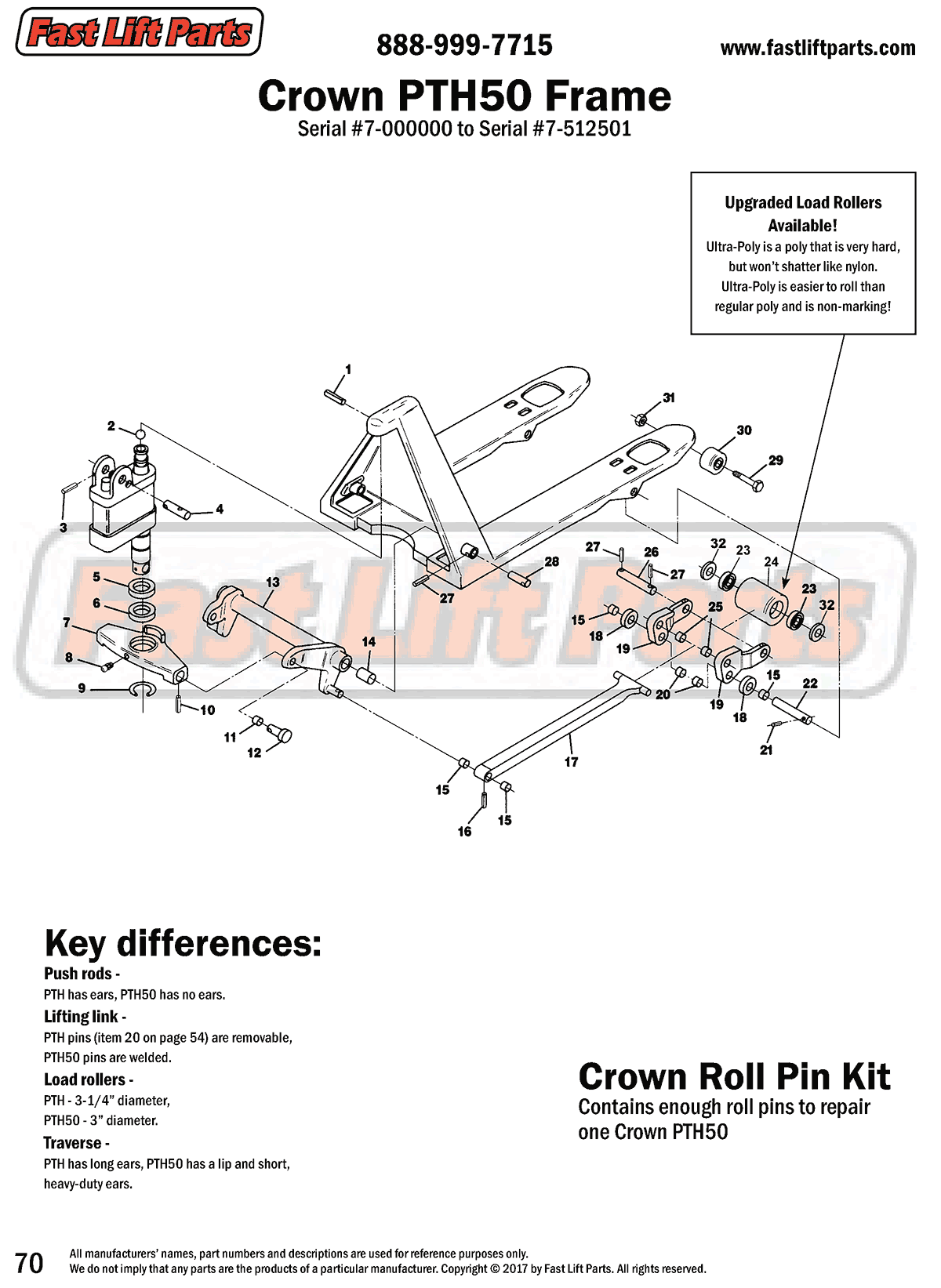

• Crown PTH 50 Frame Line Drawing
1 1

Crown

*Crown PTH 50 Frame

(Up to and including Serial #7-512500)

Identify your part using this line drawing of the frame.

Locate a part on the hydraulic unit.

  1. CR 50000-014 Roll Pin
  2. CR 55001-010 Ball
  3. CR 50000-015 Roll Pin
  4. CR 44519 Handle Axle
  5. CR 44468 Washer
  6. CR 55018-001 Traverse Bearing
  7. CR 44466 Traverse
  8. CR 54011-001 Lube Fitting
  9. CR 50012-024 Snap Ring
  10. CR 50000-010 Roll Pin
  11. CR 41201 Bushing
  12. CR 44467 Pin
  13. CR 44473 Lifting Link
  14. CR 55084-002 Bushing
  15. CR 42053-011 Bushing
  16. CR 50000-016 Roll Pin
  17. CR 44488-006 Push Rod
  18. CR 44777 Exit Roller
  19. CR 44501 Load Roller Bracket
    (Pair: includes Items 20 & 25)
  20. CR 42053-012 Bushing
  21. CR 50000-011 Roll Pin
  22. CR 44464 Pivot Axle
  23. CR 65081-020 Bearing
  24. Load Roller Assembly Options
  25. CR 41139 Bushing
  26. CR 44509 Load Roller Axle
  27. CR 50000-017 Roll Pin
  28. CR 44463 Lifting Link Pin
  29. CR 50007-023 Bolt
  30. CR 44461 Entry Roller
  31. CR 50008-025 Nut
  32. CR 44516 Washer
