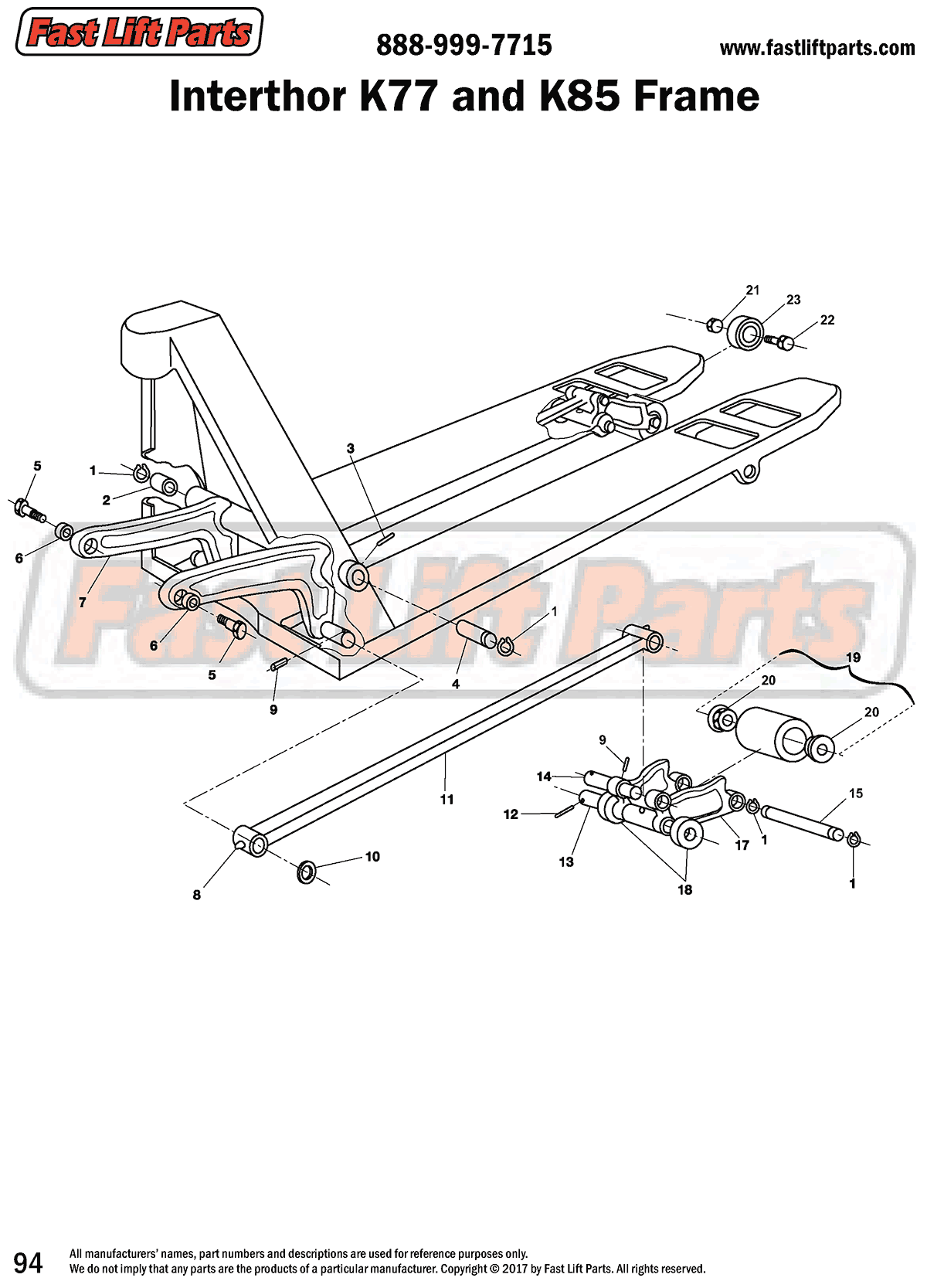

*Interthor K77 & K85 Frame

Identify your part using this line drawing of the frame.

Locate a part on the hydraulic unit.

  1. IN 435.0015 Snap Ring
  2. IN 524.5040 Bushing
  3. IN 427.0440 Roll Pin
  4. IN 140.5153 Lifting Link Pins
  5. IN 140.5229 Shoulder Bolt
  6. IN 524.0014 Bushing
  7. No Longer Available
  8. IN 640.0002 Grease Fitting
  9. IN 427.0102 Roll Pin
  10. IN 140.5098 Washer
  11. No Longer Available
  12. IN 427.6127 Roll Pin
  13. IN 140.5095 Pivot Axle
  14. IN 140.5099 Push Rod Axle
  15. IN 140.5094 Load Roller Axle
  16. IN 130.5068 Load Roller Bracket
  17. IN 140.5101 Exit Roller
  18. Load Roller Assembly Options
  19. IN 410.0004 Nut
  20. IN 300.0039 Bolt
  21. IN 140.5172 Entry Roller
