*Jet A, L & J Hydraulic Unit

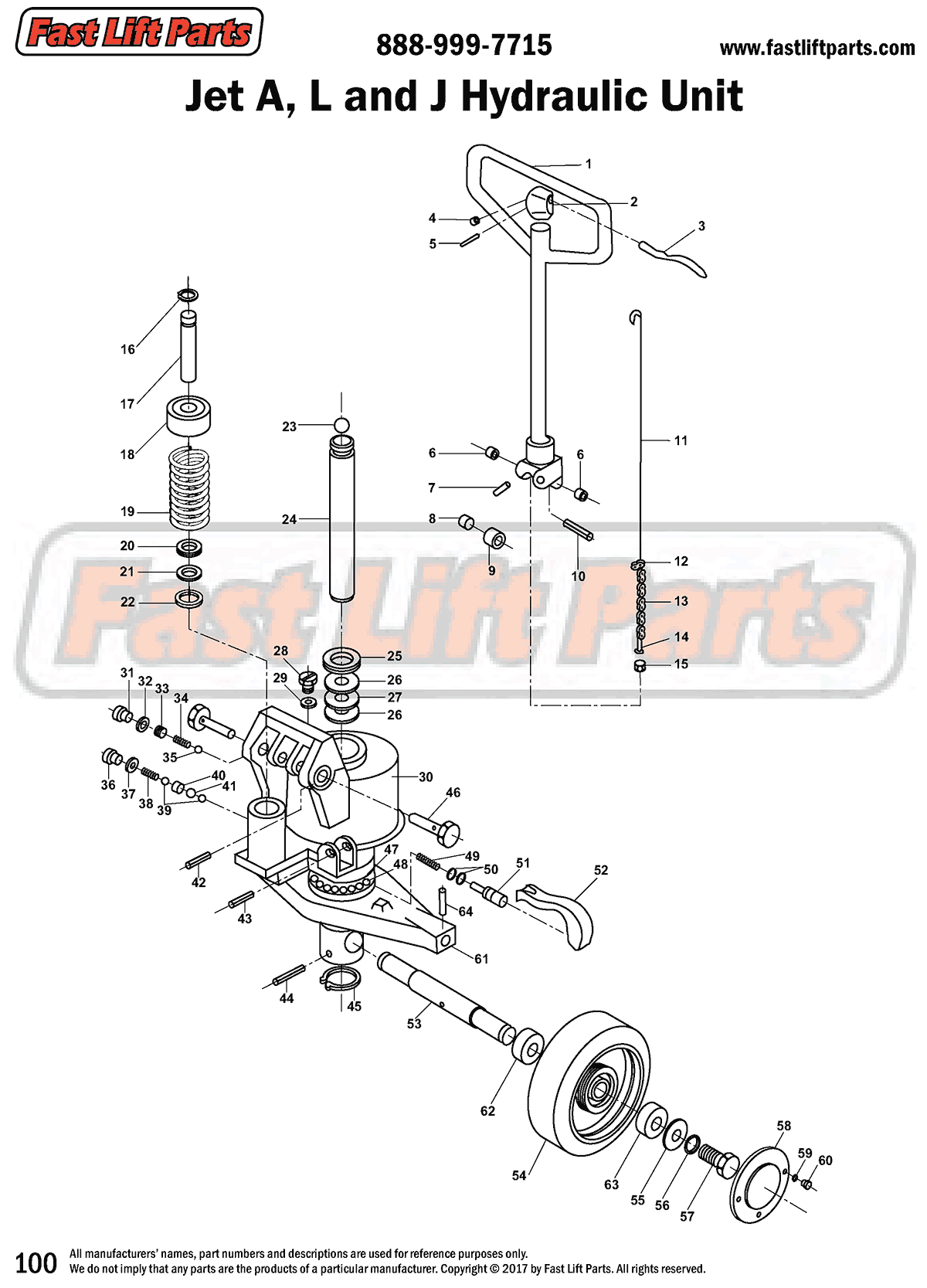

Identify your part using this line drawing of the Hydraulic Unit.

Locate a part on the frame.

  1. JT PT2748A-001 Handle Frame
  2. JT PT2748A-002 Handle Cap
  3. JT PT2748A-003 Control Lever
  4. JT PT2748A-004 Roll Pin
  5. JT PT2748A-005 Bolt
  6. JT PT2748A-006 Bushing
  7. JT PT2748A-007 Spring Pin
  8. JT PT2748A-008 Bushing
  9. JT PT2748A-009 Roller
  10. JT PT2748A-010 Roller Pin
  11. JT PT2748A-011 Release Rod
  12. JT PT2748A-012 Chain Joint
  13. JT PT2748A-013 Chain
  14. JT PT2748A-014 Anchor Bolt
  15. JT PT2748A-015 V-Nut
  16. JT PT2748A-032 Snap Ring
  17. JT PT2748A-033 Pump Piston
  18. JT PT2748A-034 Spring Cap
  19. JT PT2748A-035 Spring
  20. JT PT2748A-020 Dust Seal
  21. JT PT2748A-021 Back-Up Ring
  22. JT PT2748A-022 O-Ring
  23. JT PT2748A-024 Ball
  24. JT PT2748A-025 Ram Piston
    JT PT2748A-025A Ram Piston
    JT PT2748J-025 Ram Piston
  25. JT PT2748A-016 Dust Seal
  26. JT PT2748A-017 O-Ring
  27. JT PT2748A-018 Back-Up Ring
  28. JT PT2748A-026 Oil Plug
  29. JT PT2748A-023 O-Ring
  30. JT PT2748A-109 Pump Housing, New (Replaces PT2748-109, No Longer Available)
  31. JT PT2748A-027 Pressure Adj. Screw
  32. JT PT2748A-028 O-Ring
  33. JT PT2748A-029 Release Screw
  34. JT PT2748A-030 Spring
  35. JT PT2748A-031 Steel Ball
  36. JT PT2748A-036 Release Plug
  37. JT PT2748A-037 Washer
  38. JT PT2748A-038 Spring
    JT PT2748A-038A Spring (not shown)
  39. JT PT2748A-040 Ball
  40. JT PT2748A-039 Valve Housing
  41. JT PT2748A-040A Steel Ball
  42. JT PT2748A-041 Spring Pin
  43. JT PT2748A-042 Spring Pin
  44. JT PT2748A-044 Spring Pin
  45. JT PT2748A-043 Snap Ring
  46. JT PT2748A-048 Handle Pin
  47. JT PT2748A-049 Bearing Base
  48. JT PT2748A-050 Thrust Bearing
  49. JT PT2748A-051 Spring
  50. JT PT2748A-019 O-Ring
  51. JT PT2748A-052 Release Pin
  52. JT PT2748A-053 Actuator
  53. JT PT2748A-046 Wheel Shaft
  54. Steer Wheel Assembly Options
  55. JT PT2748A-062 Washer
  56. JT PT2748A-063 Lock Washer
  57. JT PT2748A-064 Bolt
  58. JT PT2748A-061 Hub Cap
  59. JT PT2748A-065 Lock Washer
  60. JT PT2748A-066 Screw
  61. JT PT2748A-055 Traverse
  62. JT PT2748A-103-BS-1 Steer Wheel
    Ball Bearing
  63. JT PT2748A-103-BS-2 Steer Wheel
    Ball Bearing
  64. JT PT2748A-054 Roll Pin
