*Valu-Jack 5500-2 Hydraulic Unit

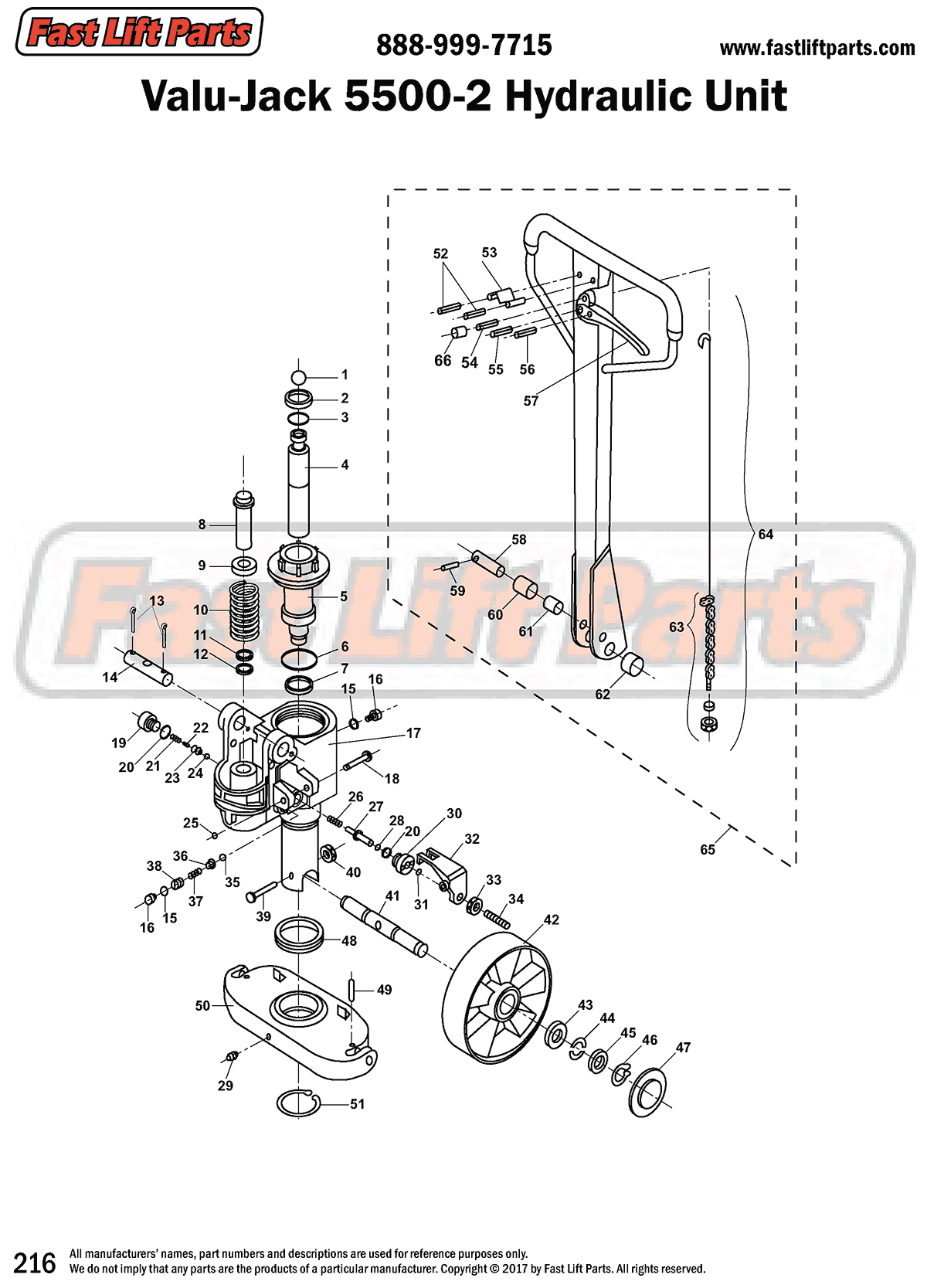

Identify your part using this line drawing of the Hydraulic Unit.

Locate a part on the frame.

1. VJ 55F146 Ball
2. VJ 55F145 Wiper
3. VJ 55F144 O-Ring
4. VJ 55F152 Piston Rod
5. VJ 55F143 Cylinder Cap
6. VJ 55F142 O-Ring
7. VJ 55F141 U-Cup
8. VJ 55F147 Pump Piston
9. VJ 55F148 Washer
10. VJ 55F149 Spring
11. VJ 55F150 Wiper
12. VJ 55F151 U-Cup
13. VJ 55F117 Cotter Pin
14. VJ 55F118 Handle Axle
15. VJ 55F126 Seal Washer
16. VJ 55F127 Screw Plug
17. VJ 55F100 Pump Assembly Complete
18. VJ 55F140 Lever Plate Pin
19. VJ 55F119 Screw Plug
20. VJ 55F120 Seal Washer
21. VJ 55F121 Spring
22. VJ 55F122 Spindle, Dampening Valve
23. VJ 55F123 Seat, Dampening Valve
24. VJ 55F124 Steel Ball
25. VJ 55F153 Retaining Ring
26. VJ 55F128 Spring
27. VJ 55F129 Release Pin
28. VJ 55F130 O-Ring
29. VJ 55F15 Lube Fitting
30. VJ 55F131 Sleeve
31. VJ 55F132 O-Ring
32. VJ 55F135 Lever Plate
33. VJ 55F134 Jam Nut
34. VJ 55F133 Adjustment Screw
35. VJ 55F139 Steel Ball
36. VJ 55F138 Valve Ball Seat
37. VJ 55F137 Spring
38. VJ 55F136 Adjustment Screw
39. VJ 55F3 Bolt
40. VJ 55F44 Nut
41. VJ 55F2 Steer Wheel Axle
42. See Steer Wheel Options
43. VJ 55F9 Bearing , 2 Rubber Seals
44. VJ 55F10 Half Cirque Washer
45. VJ 55F11 Cup Washer
46. VJ 55F12 Retaining Ring
47. VJ 55F13 Hub Cap
48. VJ 55F4 Thrust Bearing
49. VJ 55F6 Spring Pin
50. VJ 55F5 Traverse
51. VJ 55F7 Retaining Ring
52. VJ 55F102 Roll Pin
53. VJ 55F101 Blade Spring
54. VJ 55F104 Roll Pin
55. VJ 55F105 Roll Pin
56. VJ 55F106 Roll Pin
57. VJ 55F107 Control Lever
58. VJ 55F109 Handle Pin
59. VJ 55F110 Roll Pin
60. VJ 55F111 Roller
61. VJ 55F112 Bushing
62. VJ 55F114 Handle Bushing
63. VJ 55F115 Chain, Includes Ajustment Pin and Nut
64. VJ 55F113A Control Rod Assembly
65. VJ 55F1A Handle Assembly, Includes 53-66
66. VJ 55F103 Nylon Roller

Kits & Pumps:

• VJ 55FK100 Seal Kit
