• Blue Giant PT-50/PT-55 Frame Line Drawing
1 1

Blue Giant

*Blue Giant PT-50/PT-55 Frame

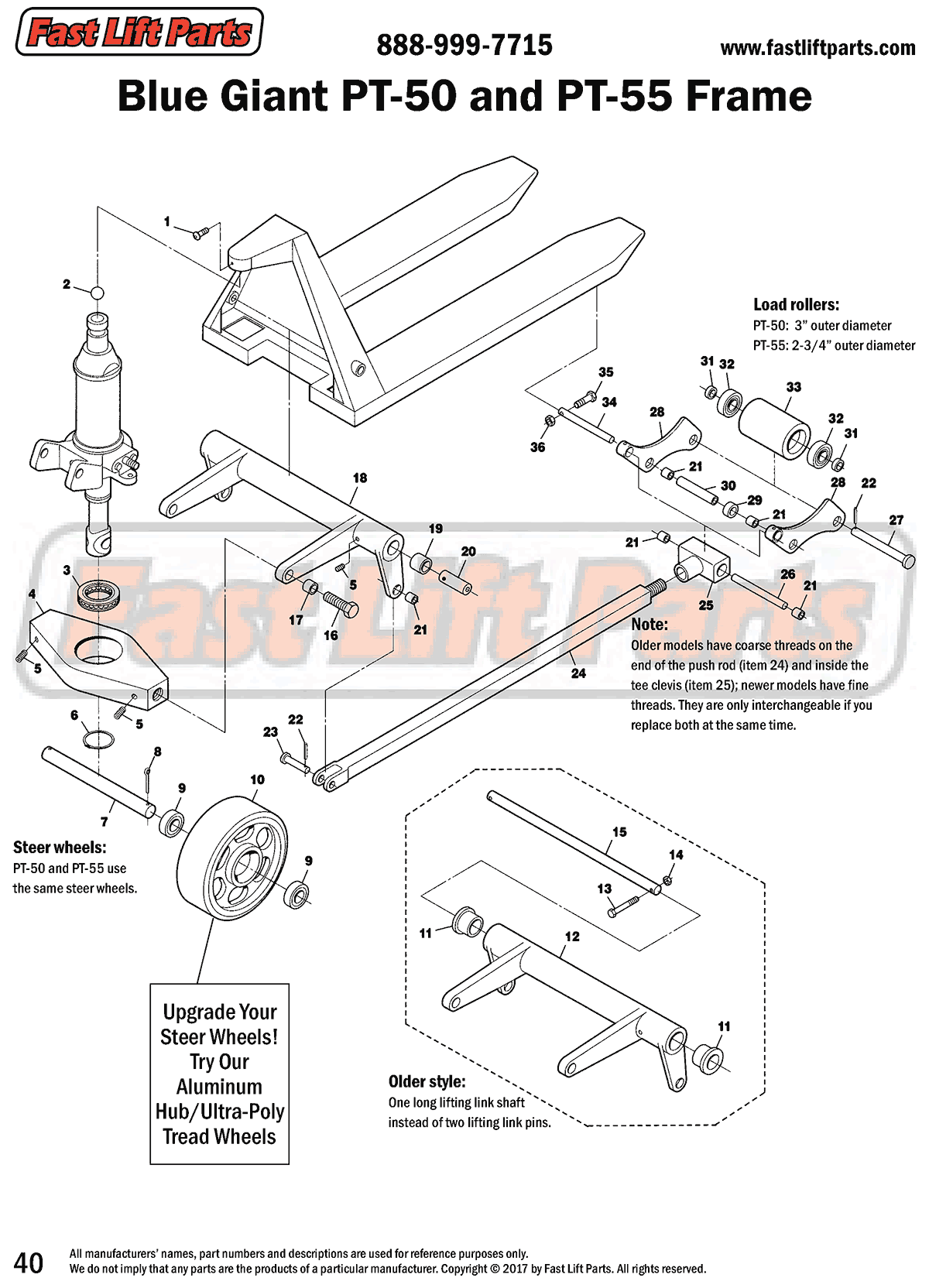

Identify your part using this line drawing of the frame.

Locate a part on the hydraulic unit.

  1. BG 010-054 Screw
  2. BG 018-523 Ball
  3. BG 018-516 Traverse Bearing
  4. No Longer Available
  5. BG 014-016 Set Screw
  6. BG 013-039 Snap Ring
  7. BG 107-200 Steer Wheel Axle
  8. BG 013-025 Cotter Pin
  9. BG 018-557 Bearing
  10. Steer Wheel Assembly Options
  11. BG 018-013 Bushing
  12. No Longer Available
  13. BG 010-053 Bolt
  14. BG 011-552 Nut
  15. BG 104-055 Lifting Link Shaft
    BG 104-057 Lifting Link Shaft
  16. BG 010-064 Bolt
  17. BG 018-007 Bushing
  18. No Longer Available
  19. BG 018-071 Bushing
  20. BG 110-046 Lifting Link Pin
  21. BG 018-001 Bushing
  22. BG 013-010 Roll Pin
  23. BG 107-196 Pin
  24. BG 789-127 Push Rod
  25. BG 790-426 Tee Clevis
  26. BG 106-172 Push Rod Axle
  27. BG 106-170 Load Roller Axle
  28. BG 805-604 Load Roller Bracket
  29. BG 104-054 Exit Roller
  30. BG 108-330 Sleeve
  31. BG 106-046 Split Ring
  32. BG 018-500 Bearing
  33. Load Roller Assembly Options
  34. BG 106-169 Pivot Axle
  35. BG 010-087 Screw
  36. BG 011-545 Adjusting Nut
