Blue Giant

*Blue Giant ROI-55/5 & MTS 2000 Hydraulic Unit

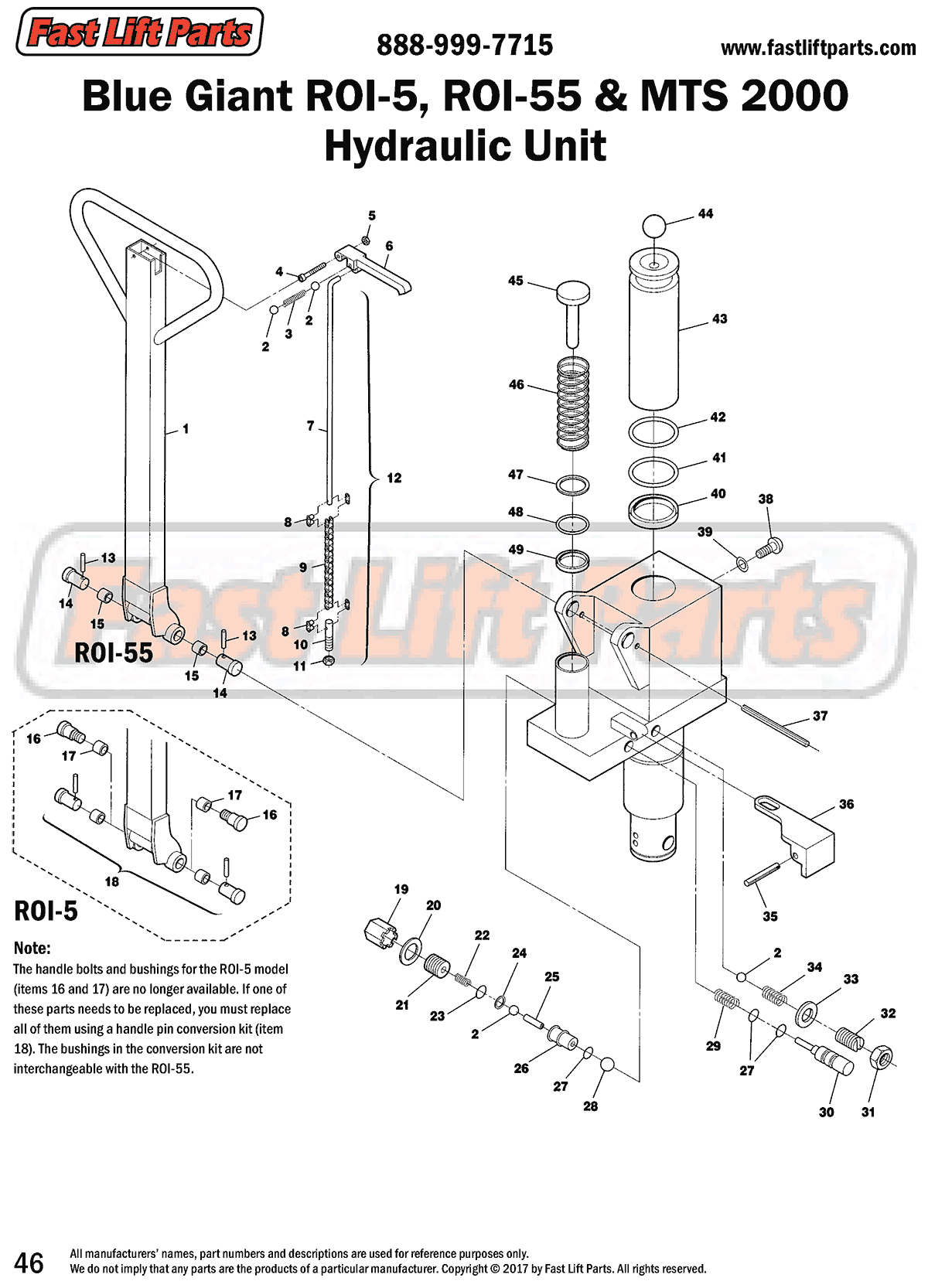

Identify your part using this line drawing of the Hydraulic Unit.

Locate a part on the frame.

  1. BG 790-491 Handle Assembly
  2. BG 105-733 Ball
  3. BG 111-038 Spring
  4. BG 011-094 Screw
  5. BG 011-565 Nut
  6. BG 111-039 Control Lever
  7. BG 111-041 Control Rod
  8. BG 111-067 Master Link
  9. BG 111-042 Chain
  10. BG 111-107 Chain Connector
  11. BG 011-545 Adjusting Nut
  12. BG 790-488 Control Rod & Chain Assembly
  13. BG 013-007 Roll Pin
  14. BG 111-147 Handle Pin
  15. BG 018-007 Bushing
  16. See Item 18
  17. See Item 18
  18. BG 117-888 Handle Pin Conversion Assembly
  19. BG 111-138 Cap Nut
  20. BG 012-277 Washer
  21. BG 111-137 Screw Plug
  22. BG 111-086 Spring
  23. BG 036-100 O-Ring
  24. BG 017-036 Washer
  25. BG 111-018 Roll Pin
  26. BG 111-017 Valve
  27. BG 036-035 O-Ring
  28. BG 105-734 Ball
  29. BG 111-085 Spring
  30. BG 790-481 Valve
  31. BG 011-519 Nut
  32. BG 014-051 Screw Plug
  33. BG 111-004 Washer
  34. BG 111-140 Spring
  35. BG 013-010 Roll Pin
  36. BG 111-002 Foot Pedal
  37. BG 013-090 Roll Pin
  38. BG 010-054 Screw
  39. BG 107-781 O-Ring
  40. BG U-Cup
  41. BG 111-010 O-Ring
  42. BG 036-125 O-Ring
  43. No Longer Available
