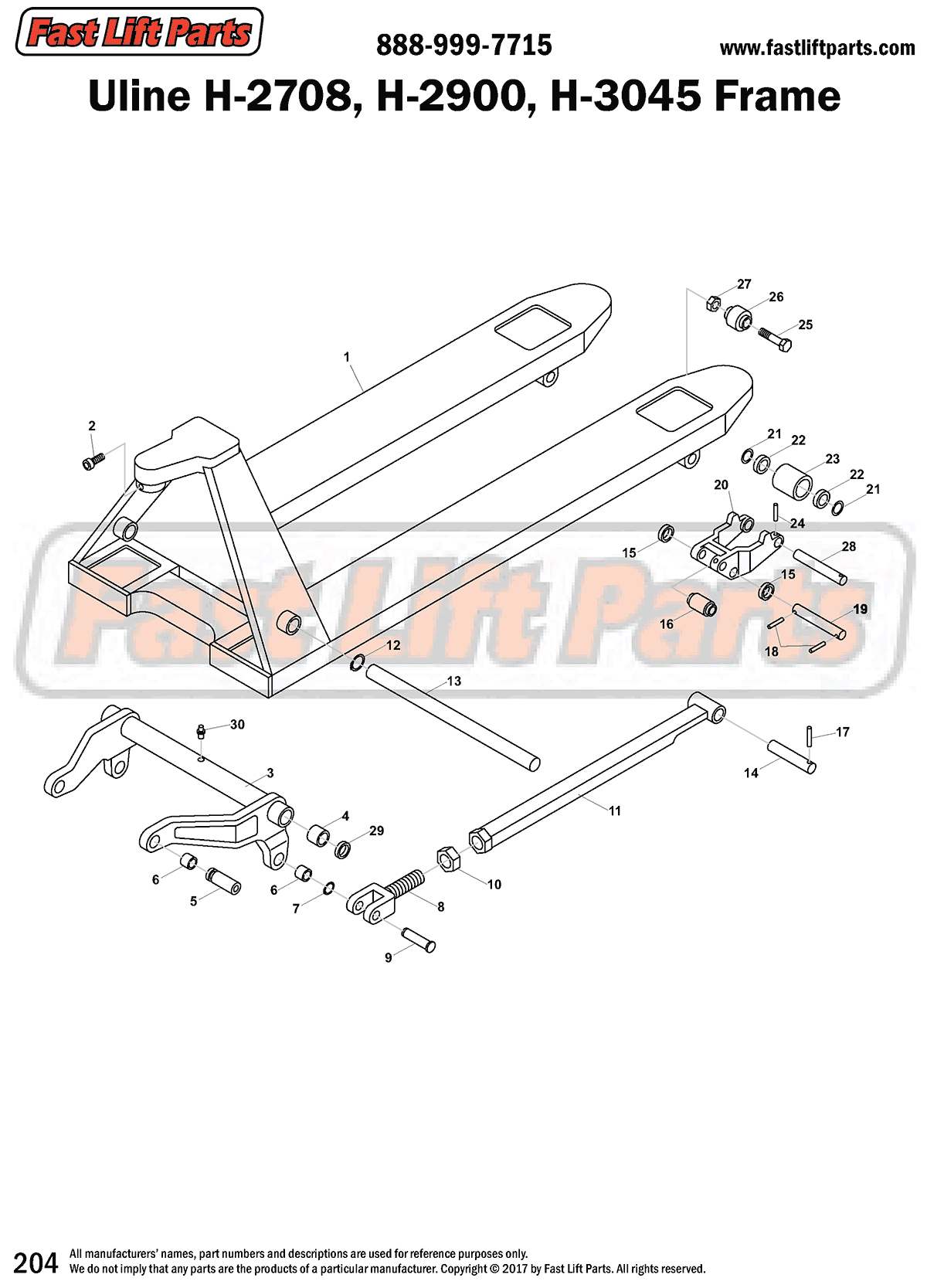

  • Uline H-2708, H-2900, H-3045 Frame Line Drawing
1 of 1

Uline

*Uline H-2708, H-2900, H-3045 Frame

Identify your part using this line drawing of the frame.

Locate a part on the hydraulic unit.

  1. UE H-2708-AC201 Frame
  2. UE H-2708-AC202 Bolt
  3. UE H-2708-AC203 Lift Link, 27" Wide Frame
  4. UE H-2708-AC204 Bushing
  5. UE H-2708-AC205 Pin
  6. UE H-2708-AC206 Bushing
  7. UE H-2708-AC208 Retaining Ring
  8. UE H-2708-AC209 Joint
  9. UE H-2708-AC210 Pin
  10. UE H-2708-AC211 Nut
  11. UE H-2708-AC212 Push Rod 48" Fork
  12. UE H-2708-AC213 Snap Ring
  13. UE H-2708-AC214 Lifting Link Shaft
  14. UE H-2708-AC216 Shaft
  15. UE H-2708-AC217 Exit Roller Ring
  16. UE H-2708-AC218 Exit Roller
  17. UE H-2708-AC219 Spring Pin
  18. UE H-2708-AC220 Spring Pin
  19. UE H-2708-AC221 Pivot Shaft
  20. UE H-2708-AC222 Load Wheel Bracket
  21. UE H-2708-AC225 Washer
  22. UE H-2708-AC226 Bearing
  23. Load Wheel Assembly Options
  24. UE H-2708-AC230 Spring Pin
  25. UE H-2708-AC231 Bolt
  26. UE H-2708-AC232 Entry Roller
  27. UE H-2708-AC233 Locking Nut
  28. UE H-2708-AC235 Load Wheel Axle
  29. UE H-2708-AC236 Washer
  30. UE H-2708-AC237 Lube Fitting
