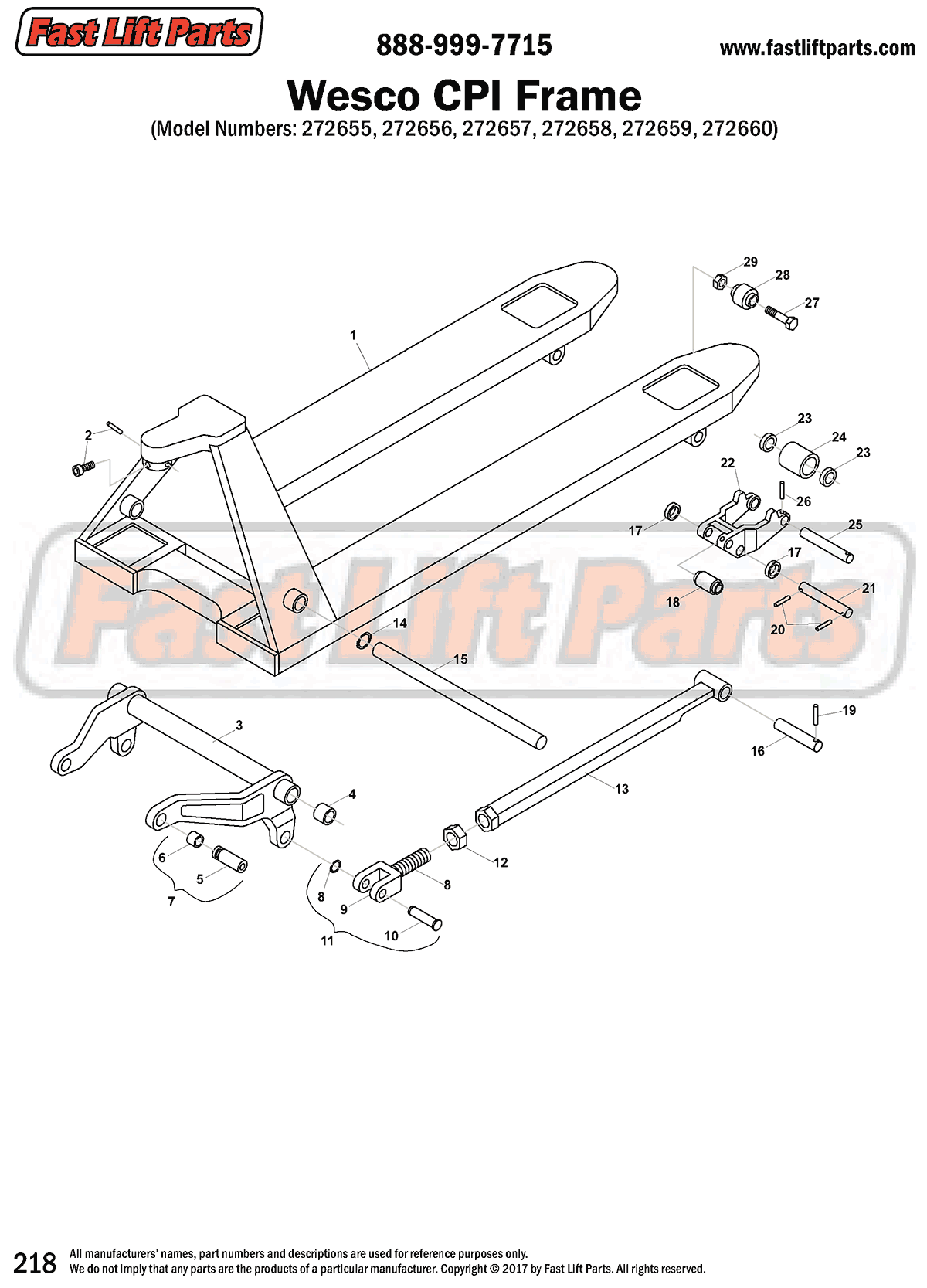

*Wesco CPI Frame

Identify your part using this line drawing of the frame.

Locate a part on the hydraulic unit.

  1. WE A201 Fork Frame
  2. WE A202A Roll Pin
  3. WE Z69995 Socket Head Bolt (option)
  4. WE 270010 Lifting Link, 27" Fork Width
    WE 272694 Lifting Link, 21" Fork Width
  5. WE A204 Bushing
  6. WE A205 Lifting Link Pin
  7. WE A206 Bushing
  8. WE 270011 Shaft Kit (Includes Items 5 & 6)
  9. WE A208 Snap Ring
  10. WE A209 Joint
  11. WE A210 Pin
  12. WE 270012 Joint Kit (Includes Items 8 - 10)
  13. WE 270318 Nut
  14. WE 270438 Push Rod, Fork Length 36"
    WE 270436 Push Rod, Fork Length 42"
    WE 270013 Push Rod, Fork Length 48"
  15. WE 270014 Retaining Ring
  16. WE 270015 Shaft, Lifting Link
  17. WE 270019 Shaft, Push Rod
  18. WE 270020 Exit Roller, Intermediate
  19. WE 270022 Exit Roller
  20. WE 270023 Roll Pin
  21. WE 270024 Roll Pin
  22. WE 270026 Pivot Axle
  23. WE 270027 Load Wheel Bracket
  24. WE 270025 Bearing
  25. See Load Wheel Options
  26. WE 270030 Load Wheel Axle
  27. WE 270031 Roll Pin
  28. WE 272331 Bolt
  29. WE 272327 Entry Roller
  30. WE 272326 Lock Nut
