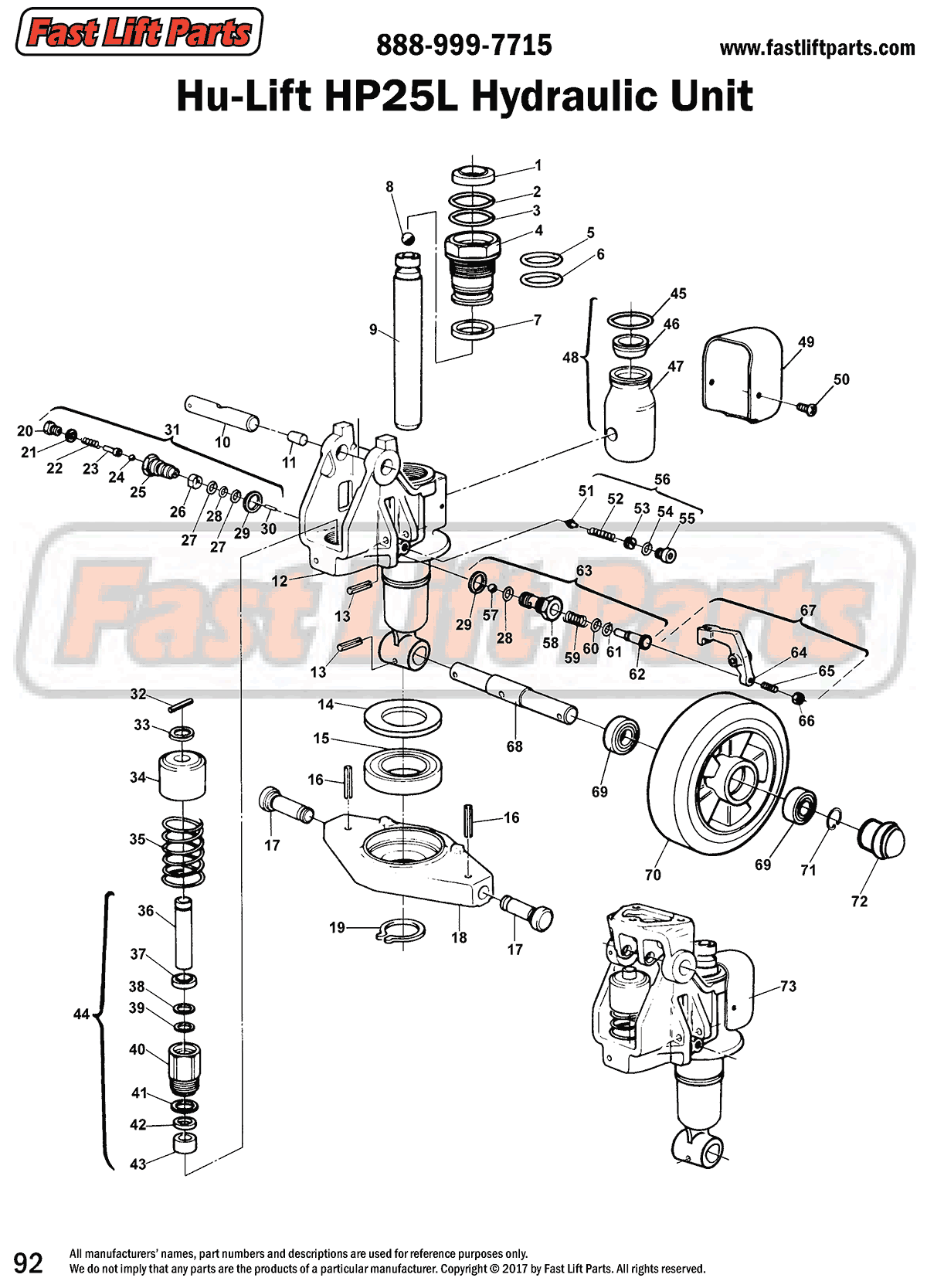

  • Hu-Lift HP25L Hydraulic Unit Line Drawing
1 2

Hu-Lift

*Hu-Lift HP25L Hydraulic Unit

Identify your part using this line drawing of the Hydraulic Unit.

Locate a part on the frame.

  1. HL 156 Scraper
  2. HL 170 Retainer
  3. HL 157 O-Ring
  4. HL 159H Top Nut
  5. HL 157-1 O-Ring
  6. HL 158H O-Ring
  7. HL 160H U-Cup
  8. HL 101 Ball
  9. HL 102 Ram
  10. HL 109 Handle Pin
  11. HL 120 Bushing
  12. HL 122H Pump Body
  13. HL 121 Roll Pin
  14. HL 123 Dust Cover
  15. HL 124 Bearing
  16. HL 154 Roll Pin
  17. HL 155 Shoulder Pin Set
  18. HL 153 Traverse
    HL 153-A Traverse Assembly
  19. HL 152 Snap Ring
  20. HL 110 Screw Plug
  21. HL 111 Washer
  22. HL 112 Spring
  23. HL 113 Spring Guide
  24. HL 114 Ball
  25. HL 115 Valve Body
  26. HL 116 Spring
  27. HL 166 Retainer
  28. HL 117 O-Ring
  29. HL 118 Washer
  30. HL 119 Valve Pin
  31. HL 115-A Valve Assembly
  32. HL 142 Roll Pin
  33. HL 143 Retaining Cover
  34. HL 144 Spring Cap
    HL 144-A Spring Cap Assembly
  35. HL 145 Spring
  36. HL 146 Piston
  37. HL 147 Scraper
  38. HL 168 Retainer
  39. HL 168 Retainer
  40. HL 148 Pump Cylinder
  41. HL 149 U-Cup
  42. HL 150 Nylon Bushing
  43. HL 151 Washer
  44. HL 146-A Pump Piston Assembly
  45. HL 161H O-Ring
  46. HL 162H Filler Plug
  47. HL 165H Reservoir
  48. HL 165H-A Reservoir Assembly
    (includes Items 45-47 & pint of oil)
  49. HL 163H Cowling
    HL 163H-A Cowling Assembly
    (Items 49,50)
  50. HL 164H Screw
  51. HL 134 Valve
  52. HL 135 Spring
  53. HL 136 Adjusting Screw
  54. HL 137 O-Ring
  55. HL 138 Screw
  56. HL 138-A Safety Valve Assembly
  57. HL 129 Ball
  58. HL 130 Release Valve Body
  59. HL 131 Spring
  60. HL 132 O-Ring
  61. HL 167 Retainer
  62. HL 133 Release Pin
  63. HL 130-A Plunger Assembly
  64. HL 139H Release Lever
  65. HL 140H Adjusting Screw
  66. HL 141 Nut
  67. HL 139H-A Activator
    (includes Items 64-66)
  68. HL 125 Steer Wheel Axle
  69. HL 126 Bearing
  70. Steer Wheel Assembly Options
  71. HL 128 Snap Ring
  72. HL 171 Dust Cover
  73. HL 100-AM Hydraulic Unit, New

Kits:
