  • Jet PTX & JTX Hydraulic Unit Line Drawing
1 2

Jet

*Jet PTX & JTX Hydraulic Unit

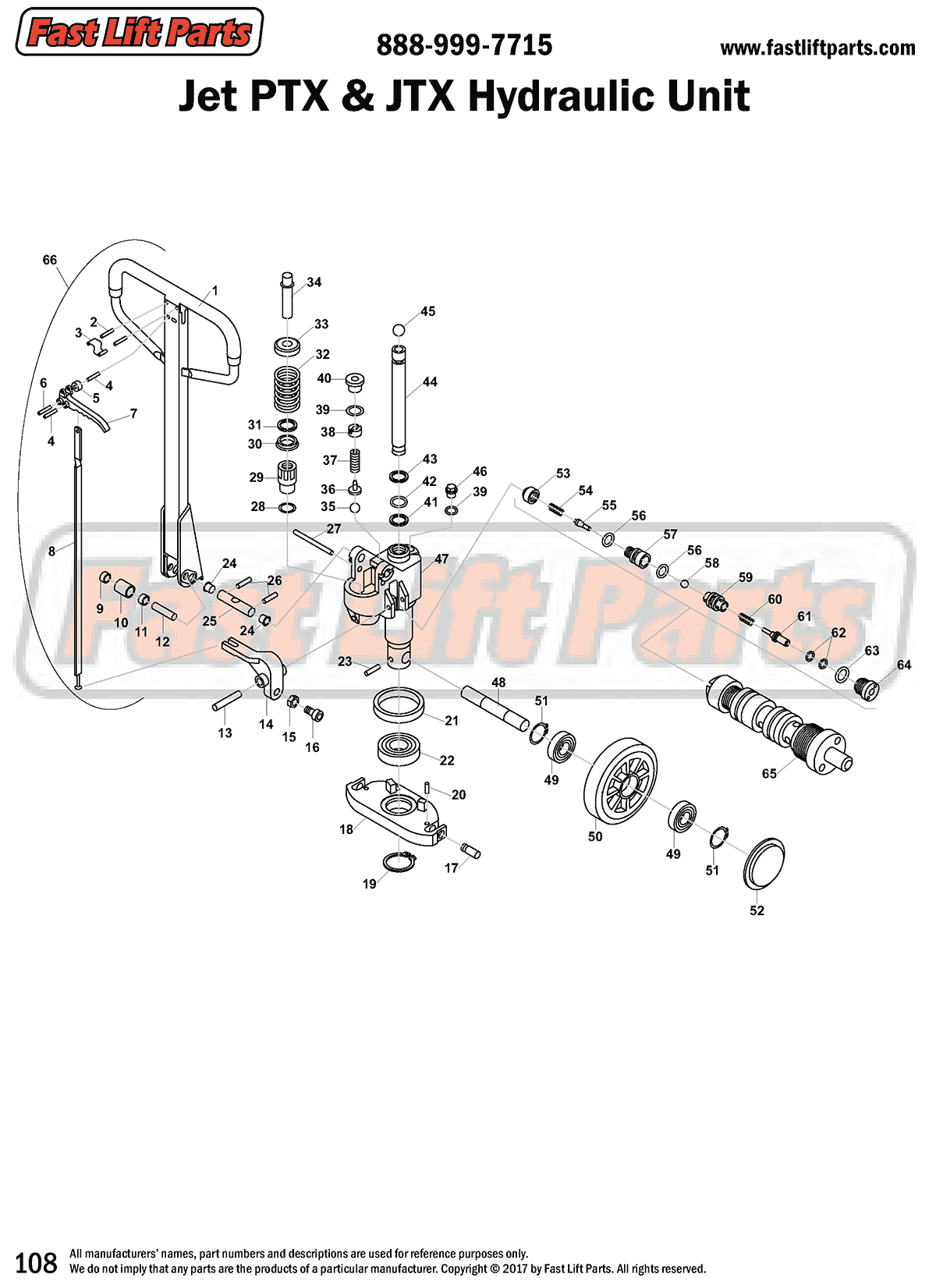

Identify your part using this line drawing of the Hydraulic Unit.

Locate a part on the frame.

  1. JT PTX2748-001 Handle
  2. JT PTX2748-002 Spring Pin
  3. JT PTX2748-003 Block Spring
  4. JT PTX2748-004 Spring Pin
  5. JT PTX2748-005 Roller
  6. JT PT3348J-077 Spring Pin
  7. JT PTX2748-008 Control Lever
  8. JT PTX2748-009 Release Rod
    JT JTX2748-009 Release Rod (JTX)
  9. JT PTX2748-010 Oil Lite Bushing
  10. JT PTX2748-011 Roller
  11. JT PTX2748-012 Oil Lite Bushing
  12. JT PTX2748-013 Roller Pin
  13. JT PTX2748-014 Spring Pin
  14. JT PTX2748-015 Cam
  15. JT TS-2311061 Hex Nut
  16. JT TS-1503051 Socket Head Cap Screw
  17. JT PTX2748-018 Traverse Pin
    JT JTX2748-018A Traverse Pin (JTX only)
  18. JT PTX2748-019A Traverse
    JT JTX2748-019A Traverse (JTX only)
  19. JT PTX2748-020A Snap Ring
  20. JT PT2748J-081 Spring Pin
  21. JT PTX2748-022A Bearing Base
  22. JT PTX2748-023 Ball Bearing
  23. JT PT2748A-044 Spring Pin
  24. JT PTX2748-027A Bushing
  25. JT PTX2748-028 Handle Pin
  26. JT PTX2748-029 Spring Pin
  27. JT PTX2748-030 Pump Retainer Pin
  28. JT PTX2748-031A Washer
  29. JT PTX2748-032A Plunger Housing
  30. JT PTX2748-033A U-Packing
  31. JT PTX2748-034A Dust Ring Seal
  32. JT PTX2748-035 Spring
  33. JT PTX2748-036 Spring Cap
  34. JT PTX2748-037A Plunger Piston
  35. JT SB-6MM Steel Ball
  36. JT PT2748A-030 Spring Base
  37. JT PT2748A-030A Spring
  38. JT PTX2748-041 Release Screw
  39. JT PTX2748-042 O-Ring
  40. JT PTX2748-043 Pressure Adjust Screw
  41. JT PTX2748-045A U-Packing
    JT JTX2748-045A U-Packing (JTX)
  42. JT PTX2748-046 O-Ring
    JT JTX2748-046A O-Ring (JTX only)
  43. JT PTX2748-047 Dust Seal Ring
    JT JTX2748-047 Dust Seal Ring (JTX only)
  44. JT PTX2748-048A Ram Piston
    JT JTX2748-048A Ram Piston (JTX only)
  45. JT SB-19 Steel Ball
  46. JT PTX2748-050 Oil Plug
  47. JT PTX2748-051A Pump Housing
    JT JTX2748-051A Pump Housing (JTX only)
  48. JT PTX2748-052A Wheel Shaft
    JT JTX2748-052A Wheel Shaft (JTX only)
  49. JT BB-6204 Ball Bearing
  50. JT PTX2748-054 Steering Wheel
    JT JTX2748-054 Steering Wheel (JTX only)
  51. JT PT2748J-081A Snap Ring
  52. JT PTX2748-056 Dust Seal
  53. JT PTX2748-057 Valve Cap
  54. JT PTX2748-066 Needle Valve Spring
  55. JT PTX2748-067 Needle Valve
  56. JT PTX2748-071 O-Ring
  57. JT PTX2748-068 Needle Valve Base
  58. JT SB-7MM Steel Ball
  59. JT PTX2748-073 Mid-Valve Base
  60. JT PTX2748-076 Release Nozzle Spring
  61. JT PTX2748-077A Release Nozzle
  62. JT PTX2748-078A O-Ring
  63. JT PTX2748-079 O-Ring
  64. JT PTX2748-080 Release Nozzle Housing
  65. JT PTX2748-081 Valve Assembly
  66. JT PTX2748-103 Pump Assembly
    JT JTX2748-103 Pump Assembly (JTX only)
  67. JT JTX2748-105 Handle Assembly
    JT JTX2748-105 Handle Assembly (JTX only)
  68. JT PTX2748-106 Pump/Handle/Traverse/Wheel Assembly
    JT JTX2748-106 Pump/Handle/Traverse/Wheel Assembly (JTX only)
