*Jet PTX & JTX Frame

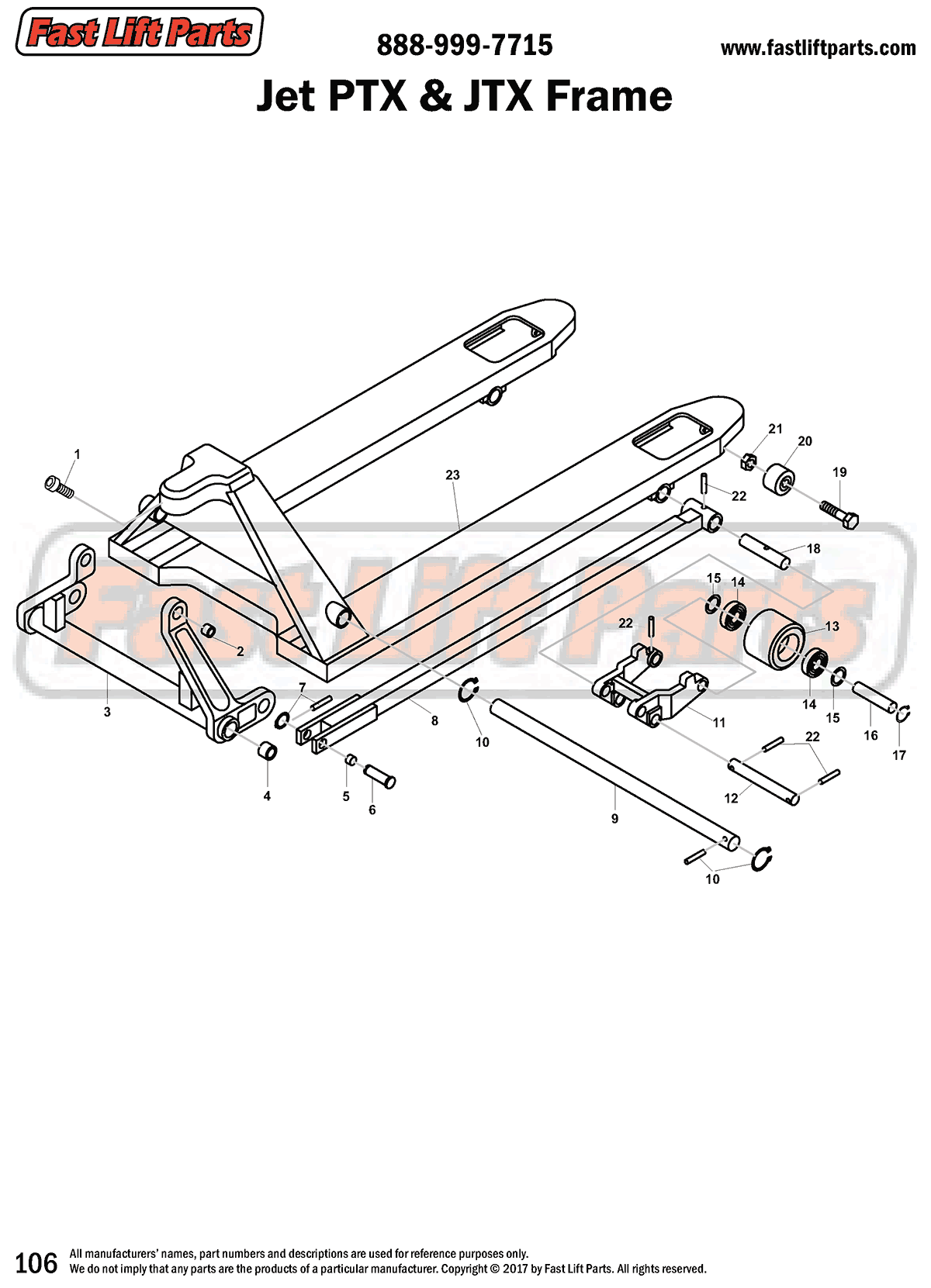

Identify your part using this line drawing of the frame.

Locate a part on the hydraulic unit.

  1. JT TS-1503041 Socket Head Cap Screw
  2. JT PTX2748-083 Bushing
  3. JT PTX2036-084 Lifting Yoke (for PTX-2036/2048)
    JT PTX2748-084 Lifting Yoke (for PTX-2748)
    JT JTX2748-084 Lifting Yoke (JTX only)
  4. JT PTX2748-085 Oil Lite Bushing
    JT PTX2748-085 Oil Lite Bushing (JTX only)
  5. JT PTX2748-086 Oil Lite Bushing
    JT JTX2748-086 Oil Lite Bushing (JTX only)
  6. JT PTX2748-086A Crank Pin 70A
    JT JTX2748-086A Crank Pin (JTX only)
  7. JT PTX2748-086B Spring Pin 70B
    JT JTX2748-086B Spring Pin (JTX only)
  8. JT PTX2036-087 Push Rod (for PTX-2036)
    JT PTX2748-087 Push Rod (for PTX-2048/2748)
    JT JTX2748-087 Push Rod (JTX only)
  9. JT PTX2036-088 Crank Shaft (for PTX-2036/2048)
    JT PTX2748-088 Crank Shaft (for PTX-2748)
    JT JTX2748-088 Crank Shaft (JTX only)
  10. JT TS-0367061 Spring Pin
    JT JTX2748-089A Spring Pin (JTX only)
  11. JT PT2748J-083 Load Wheel Frame
    JT JTX2748-090 Load Wheel Frame (JTX only)
  12. JT PT2748J-078A Pivot Axle
    JT JTX2748-092 Pivot Axle (JTX only)
  13. JT PT2748J-080BN Load Wheel Assembly
    JT JTX2748-094 Load Wheel (JTX only)
  14. JT BB-6004 Ball Bearing
    JT JTX2748-095 Ball Bearing (JTX only)
  15. JT JTX2748-097 Washer (JTX only)
  16. JT PT2748J-082 Load Wheel Axle
    JT JTX2748-097 Load Wheel Axle (JTX only)
  17. JT PT2748J-081A Snap Ring
  18. JT PT2748J-086A Rod Pin
    JT JTX2748-098 Rod Pin (JTX only)
  19. JT TS-1490101 Hex Cap Screw
  20. JT PTX2748-100 Guide Roller
  21. JT PT2748A-015 V Nut
  22. JT PT2748J-081 Spring Pin
  23. JT PTX2036-102 Fork (for PTX-2036)
    JT PTX2048-102 Fork (for PTX-2048)
    JT PTX2748-102 Fork (for PTX-2748)
