*Mighty Lift ML55 Frame

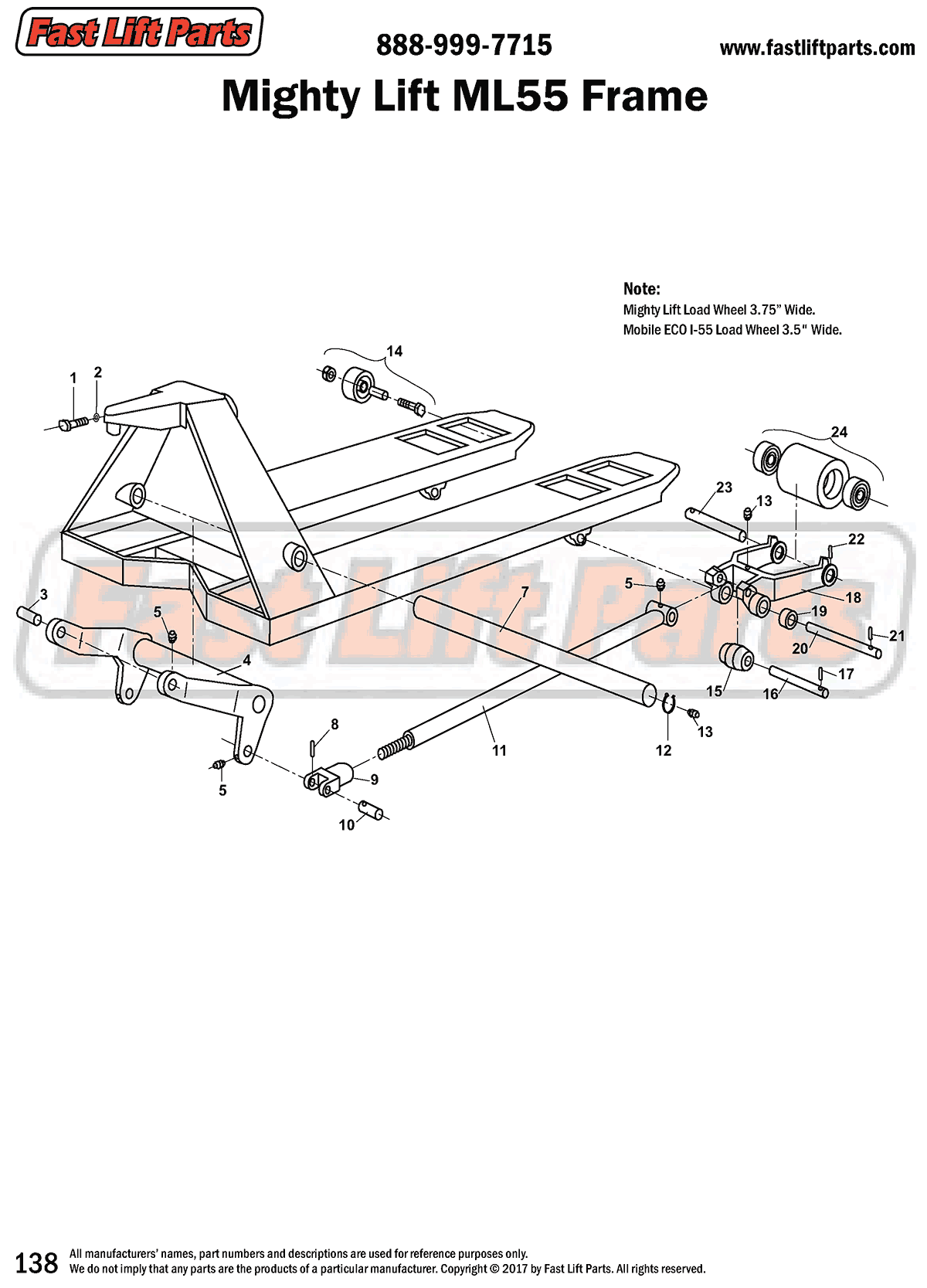

Identify your part using this line drawing of the frame.
Locate a part on the hydraulic unit.
- ML B42 Bolt
- ML B41 Lube Fitting
- ML B14 Pin
- ML B43 Lifting Link
- ML B22 Lube Fitting
- ML B20 Lifting Link Shaft
- ML B16 Roll Pin
- ML B17 Rod Fitting
- ML B18 Pin
- ML B19 Push Rod
- ML B21 Retaining Ring
- ML B15 Lube Fitting
- ML B36A Bolt,Sleeve & Nut Assy
- ML B23 Exit Roller
- ML B25 Shaft
- ML B24 Roll Pin
- ML B31 Load Roller Bracket
- ML B28 Exit Roller
- ML B26 Shaft
- ML B27 Roll Pin
- ML B30 Roll Pin
- ML B29 Shaft
- Load Roller Assembly Options
