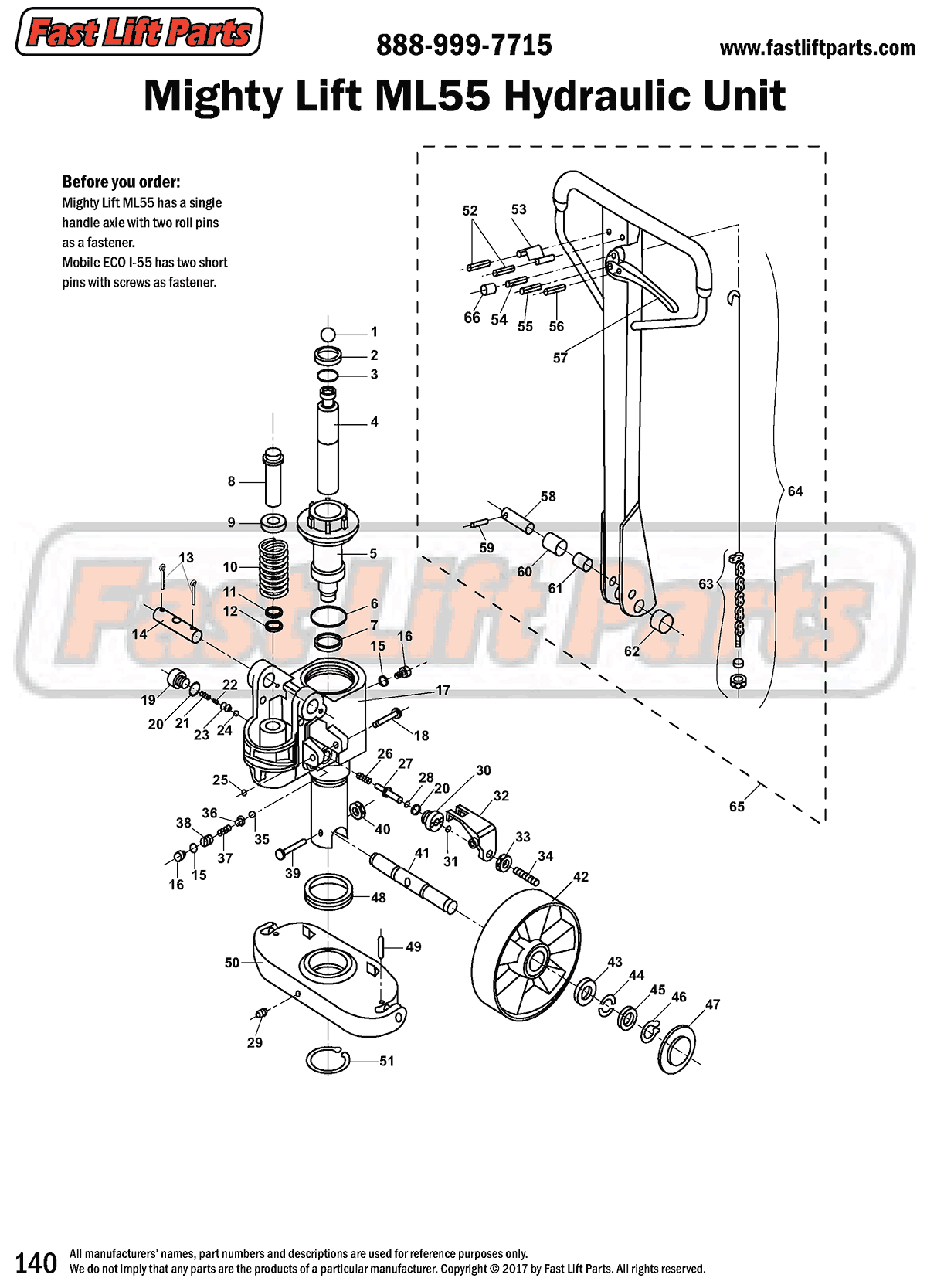

  • Mighty Lift ML55 Hydraulic Unit Line Drawing
1 of 2

Mighty Lift

*Mighty Lift ML55 Hydraulic Unit

Identify your part using this line drawing of the Hydraulic Unit.

Locate a part on the frame.

  1. ML B146 Ball
  2. ML B145 Wiper (A)
  3. ML B144 O-Ring (A)
  4. ML B152 Piston Rod
  5. ML B143 Cylinder Cap
  6. ML B142 O-Ring (A)
  7. ML B141 U-Cup (A)
  8. ML B147 Pump Piston
  9. ML B148 Washer
  10. ML B149 Spring
  11. ML B150 Wiper (A)
  12. ML B151 U-Cup (A)
  13. ML B117 Cotter Pin
  14. ML B118 Handle Pivot Pin
  15. ML B126 Seal Washer (A)
  16. ML B127 Screw Plug
  17. ML BP 100 Hydraulic Pump
  18. ML B140 Lever Plate Bolt
  19. ML B119 Screw Plug
  20. ML B120 Copper Washer (A)
  21. ML B121 Spring
  22. ML B122 Spindle of Damping Valve
  23. ML B123 Seat of Damping Valve
  24. ML B124 Steel Ball
  25. ML B153 Retaining Ring
  26. ML B128 Spring
  27. ML B129 Release Pin
  28. ML B130 O-Ring (A)
  29. ML B15 Lube Fitting
  30. ML B131 Sleeve
  31. ML B132 O-Ring (A)
  32. ML B135 Lever Plate
  33. ML B134 Nut
  34. ML B133 Set Screw
  35. ML B139 Steel Ball
  36. ML B138 Ball Valve Seat
  37. ML B137 Spring
  38. ML B136 Bolt
  39. ML B3 Bolt
  40. ML B44 Nut
  41. ML B2 Steer Wheel Axle
  42. Steer Wheel Assembly Options
  43. ML B9 Bearing
  44. ML B10 Half Cirque
  45. ML B11 Washer
  46. ML B12 Snap Ring
  47. ML B13 Dust Cover
  48. ML B4 Thrust Bearing
  49. ML B6 Spring Pin
  50. ML B5 Traverse
  51. ML B7 Retaining Ring
  52. ML B102 Roll Pin
  53. ML B101 Blade Spring
  54. ML B104 Roll Pin
  55. ML B105 Roll Pin
  56. ML B106 Roll Pin
  57. ML B107 Control Lever
  58. ML B109 Pin
  59. ML B110 Roll Pin
  60. ML B111 Roller
  61. ML B112 Bushing
  62. ML B114 Handle Bushing
  63. ML B115 Chain, Adjustment Pin and Nut
  64. ML B113A Control Linkage Assy
  65. ML B1A Handle Assembly

Kits:

  • ML BK100 Seal Kit
    Includes items marked with an (A)
