Mighty Lift
*Mighty Lift ML55-II & ML55L Hydraulic Unit

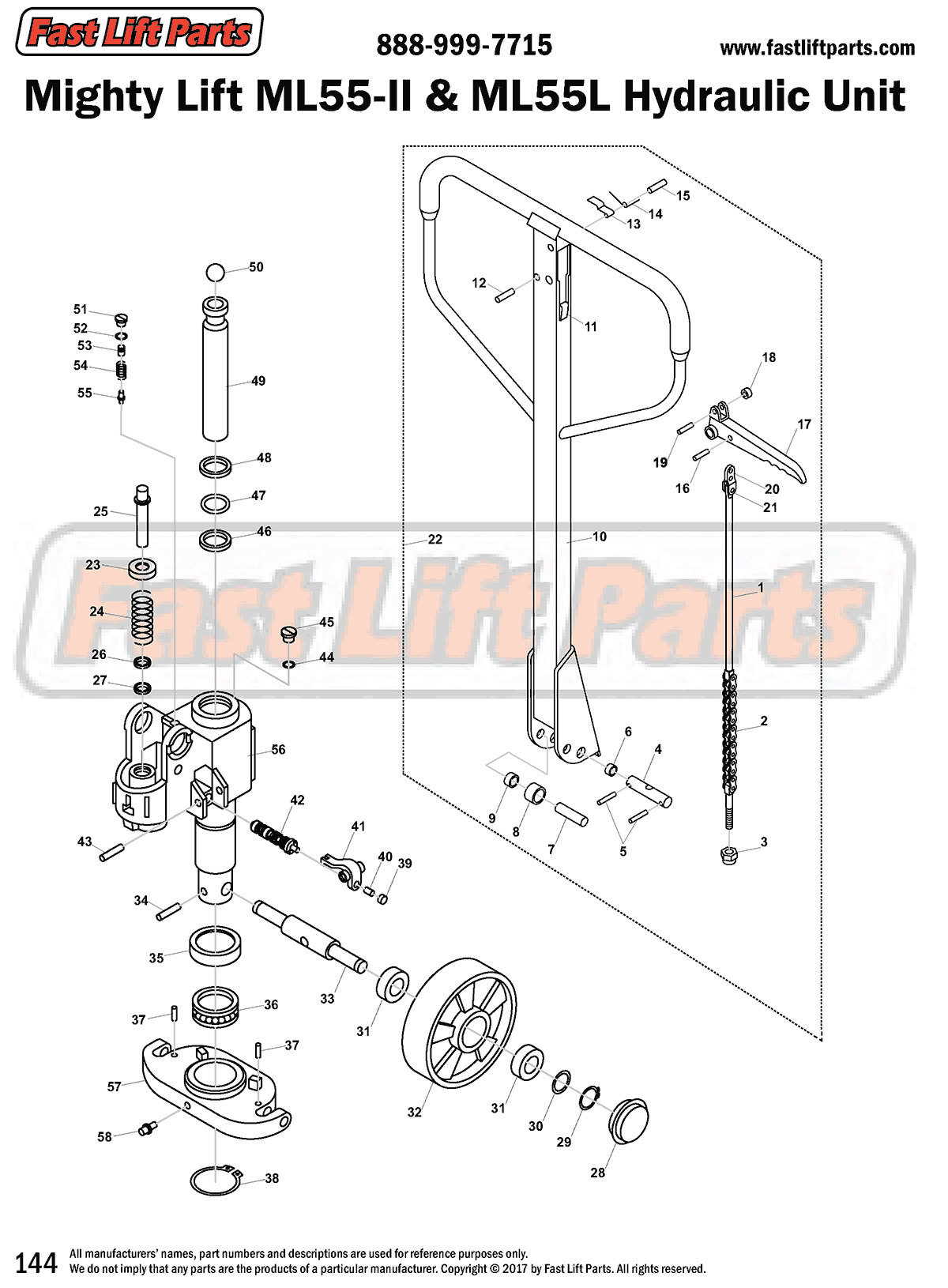

Identify your part using this line drawing of the Hydraulic Unit.
-
ML A101 Release Rod
ML A101-A Control Rod Handle Assembly - ML A102 Chain & Adjusting Bolt
- ML A104 Adjusting Nut
- ML A105 Handle Axle
- ML A106 Roll Pin
- ML A107 Bushing
- ML A108 Roller Pin
- ML A109 Pressure Roller
- ML A109A Bushing
- ML A110 Handle Frame
- ML A111 Rubber Handle Stop
- ML A112 Roll Pin
- ML A113 Blade Spring
- ML A114 Spring
- ML A115 Roll Pin
- ML A116 Roll Pin
- ML A117 Control Handle
- ML A118 Roller
- ML A119 Roll Pin
- ML A121 Pivot Hinge
- ML A122 Pin
- ML B001 Handle Assembly (Includes 1-3 & 6-21)
- ML A301 Spring Cap
- ML A302 Spring
- ML A303 Pump Piston
- ML A304 Dust Ring
- ML A305 U-Cup
- ML A306 Dust Cover
- ML A307 Locking Ring
- ML A308 Washer
- ML B009 Bearing
- Steer Wheel Options
- ML A316 Steer Wheel Axle
- ML A311 Roll Pin
- ML A337 Bearing Cover
- ML A315 Bearing
- ML A312 Roll Pin
- ML A314 Snap Ring
- ML A317 Nut
- ML A318 Screw
- ML A319 Lever Plate
- ML A321 Valve Cartridge
- ML A320 Roll Pin
- ML A323 Seal Washer
- ML A324 Screw Plug
- ML A325 U-Cup
- ML A326 O-Ring
- ML A327 Wiper
- ML A328 Piston Rod
- ML A329 Ball
- ML A330 Screw Plug
- ML A331 O-Ring
- ML A332 Adjustment Screw
- ML A333 Spring
- ML A334 Overload Valve Spindle
- ML AP100 Hydraulic Unit
- ML A313 Thrust Plate
Kits:
- ML AK100 Seal Kit
