Mobile

*Mobile ECO I-55 (Newer) Hydraulic Unit

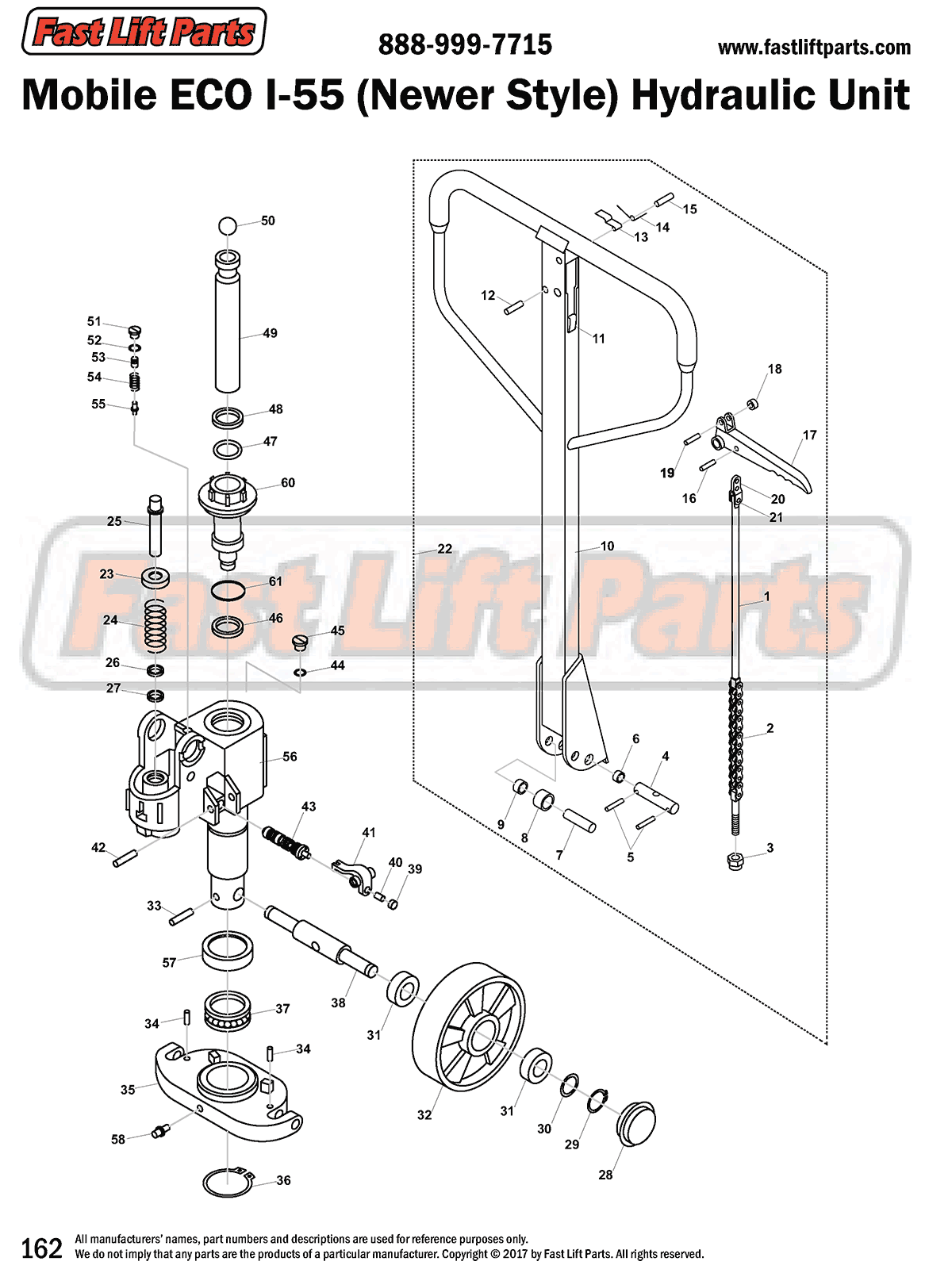

Identify your part using this line drawing of the Hydraulic Unit.

Locate a part on the frame.

  1. MO 18E101 Release Rod (Includes #20 & #21)
  2. MO 18E102 Chain & Adjustment Screw
  3. MO 18E104 Adjustment Nut
  4. MO 18E105 Handle Axle
  5. MO 18E106 Roll Pin
  6. MO 18E107 Bushing
  7. MO 18E108 Roller Pin
  8. MO 18E109 Pressure Roller
  9. MO 18E109A Bushing
  10. MO 18E110 Handle Frame (See #22 Handle Assy)
  11. MO 18E111 Rubber Stop
  12. MO 18E112 Roll Pin
  13. MO 18E113 Blade Spring
  14. MO 18E114 Spring
  15. MO 18E115 Roll Pin
  16. MO 18E116 Roll Pin
  17. MO 18E117 Control Handle
  18. MO 18E118 Nylon Roller
  19. MO 18E119 Roll Pin
  20. MO 18E121 Pivot Hinge (See #1)
  21. MO 18E122 Pin
  22. MO 18E1 Handle Assy (Includes 1-3 & 6-21)
  23. MO 18E301 Spring Cap
  24. MO 18E302 Spring Handle Return
  25. MO 18E303 Pump Piston
  26. MO 18E304 Wiper
  27. MO 18E305 U-Cup
  28. MO 18E306 Hub Cap
  29. MO 18E307 Snap Ring
  30. MO 18E308 Washer
  31. MO 18E309 Bearing, Rubber Seal
  32. MO 18E310P Steer Wheel Assembly, Black Poly on Nylon Hub, W/Bearings
  33. MO 18E310P-D Steer Wheel Assembly, Red Ultra Poly on Aluminum Hub, W/Bearings
  34. MO 18E310R Steer Wheel Assembly, Rubber on Aluminum Hub, W/Bearings
  35. MO 18E310N Steer Wheel Assembly, Solid White Nylon Hub, W/Bearings
  36. MO 18E310S Steer Wheel Assembly, Solid Steel, W/Bearings
  37. GWK-ECO2-CK Complete Wheel Kit, (2)Ultra Poly Load Rollers(2) Poly on Nylon Steer Wheel Assemblies, W/Bearings, Axles & Fasteners
  38. MO 18E316 Steer Wheel Axle
  39. MO 18E311 Roll Pin
  40. MO 18E337 Bearing Cover
  41. MO 18E315 Thrust Bearing
  42. MO 18E312 Roll Pin
  43. MO 18E314 Snap Ring
  44. MO 18E317 Nut
  45. MO 18E318 Adjustment Screw
  46. MO 18E319 Lever Plate
  47. MO 18E321 Valve Cartridge
  48. MO 18E320 Roll Pin
  49. MO 18E323 Seal Washer
  50. MO 18E324 Screw Plug
  51. MO 18E325 U-Cup
  52. MO 18E326 O-Ring
  53. MO 18E327 Wiper
  54. MO 18E328 Piston Rod
  55. MO 18E329 Ball
  56. MO 18E330 Screw Plug
  57. MO 18E331 O-ring
  58. MO 18E332 Adjustment Screw
  59. MO 18E333 Spring, Overload
  60. MO 18E334 Overload Valve Spindle
  61. MO 18E0 Hydraulic Unit Complete
  62. MO 18E313 Traverse Plate
  63. MO 18E335 Lube Fitting
  64. MO 18E336 Pump Cylinder
  65. MO 18E340 Cylinder Cap
  66. MO 18E341 O-Ring
Seal Kits:
