Mobile

*Mobile ECO I-55 (Newer) Frame

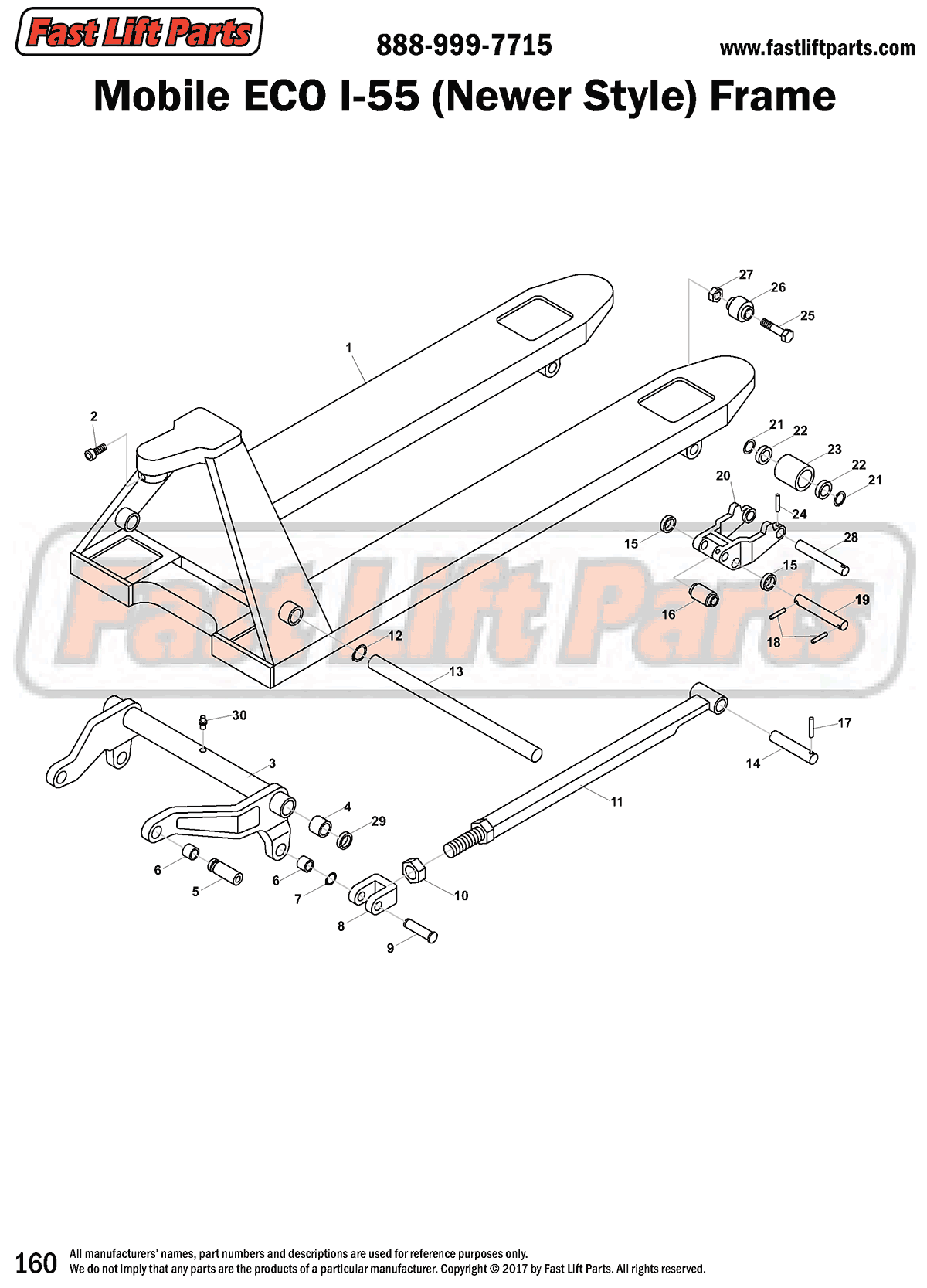

Identify your part using this line drawing of the frame.

Locate a part on the hydraulic unit.

  1. MO 18E201 Frame
  2. MO 18E202G Bolt
  3. MO 18E203 Lifting Link (27" Frame)
  4. MO 18E204 Bushing
  5. MO 18E205 Pin
  6. MO 18E206 Bushing
  7. MO 18E208 Snap Ring
  8. MO 18E209 Joint
  9. MO 18E210 Pin
  10. MO 18E211 Jam Nut
  11. MO 18E212 Push Rod
  12. MO 18E213 Retaining Ring
  13. MO 18E214 Shaft (27 inch Frame)
  14. MO 18E216 Pivot Axle
  15. MO 18E217 Side Exit Roller
  16. MO 18E218 Exit Roller
  17. MO 18E219 Roll Pin
  18. MO 18E220 Roll Pin
  19. MO 18E221 Pivot Shaft
  20. MO 18E222 Load Wheel Bracket
  21. MO 18E225 Washer
  22. MO 18E226 Bearing
  23. Load Wheel Assembly Options
  24. MO 18E230 Roll Pin
  25. MO 18E231 Bolt
  26. MO 18E232 Entry Roller
  27. MO 18E233 Lock Nut
  28. MO 18E235 Load Wheel Axle
  29. MO 18E236 Washer
  30. MO 18E237 Lube Fitting

This item is either out of stock or cannot be ordered online. Please call to confirm price, availability, and/or freight costs.
