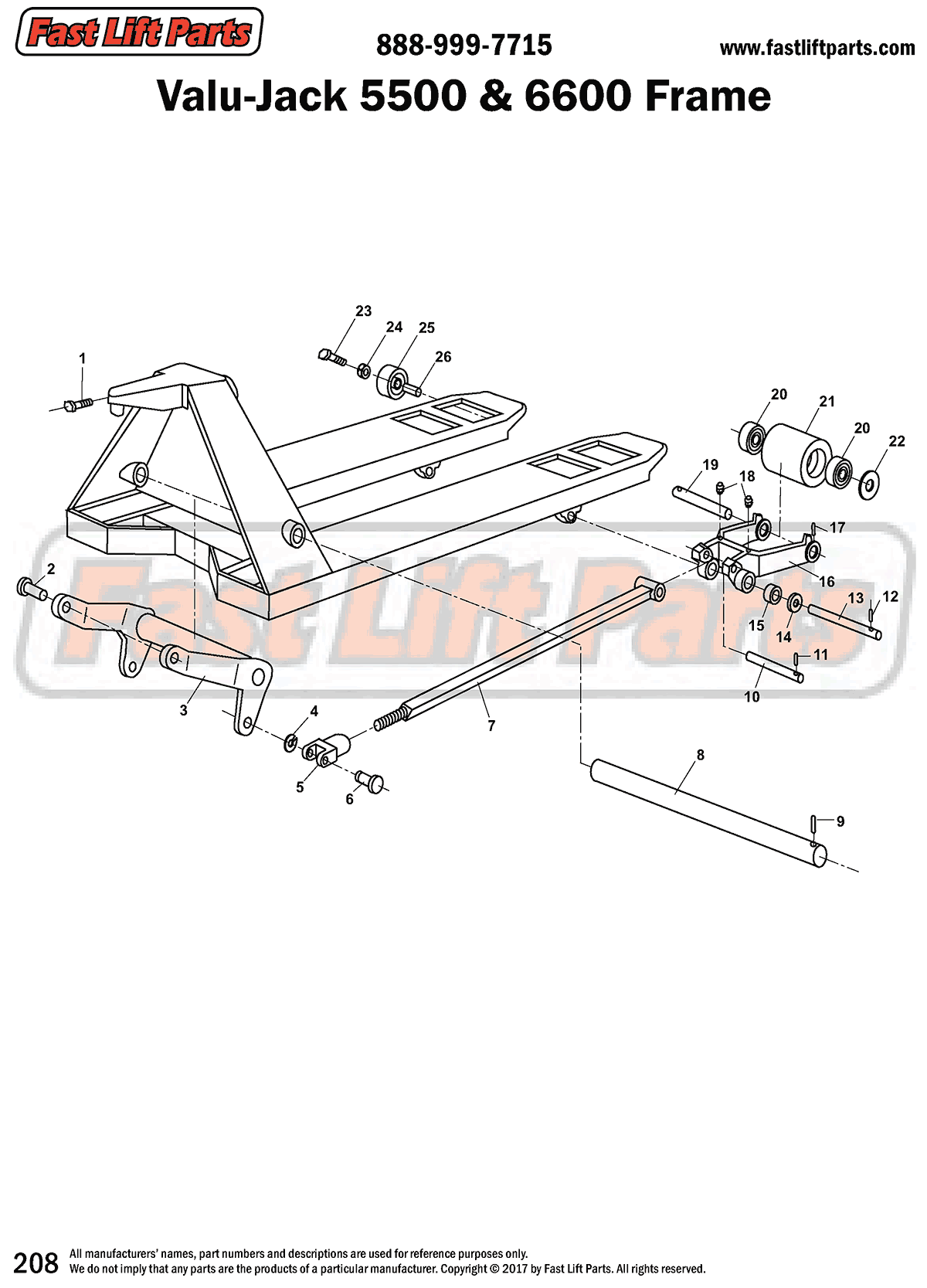

  • Valu-Jack 5500 & 6600 Frame Line Drawing
1 of 1

Valu-Jack

*Valu-Jack 5500 & 6600 Frame

Identify your part using this line drawing of the frame.

Locate a part on hydraulic unit.

  1. VJ 66201 Set Screw
  2. VJ 66207 Pin
  3. VJ 66203 Lifting Link
  4. VJ 66205 Snap Ring
  5. VJ 66206 Connecting Link
  6. VJ 66210 Pin
  7. VJ 66208 Push Rod
  8. VJ 66211 Lifting Link Shaft
  9. VJ 66204 Roll Pin
  10. VJ 66214 Push Rod Axle
  11. VJ 66213 Roll Pin
  12. VJ 66216 Roll Pin
  13. VJ 66212 Pivot Axle
  14. VJ 66243 Exit Roller
  15. VJ 66244 Bushing
  16. VJ 66215 Load Wheel Bracket
  17. VJ 66204 Roll Pin
  18. VJ 66202 Grease Fitting (Threaded)
  19. VJ 66217 Load Wheel Axle
  20. VJ 66220 Bearing
    10 per sleeve, 250 per box
  21. Load Wheel Assembly Options
  22. VJ 66219 Washer
  23. VJ 66241 Bolt
  24. VJ 66242 Nut
  25. VJ 66239 Entry Roller
  26. VJ 66240 Sleeve
