Valu-Jack

*Valu-Jack 5500 & 6600 Hydraulic Unit

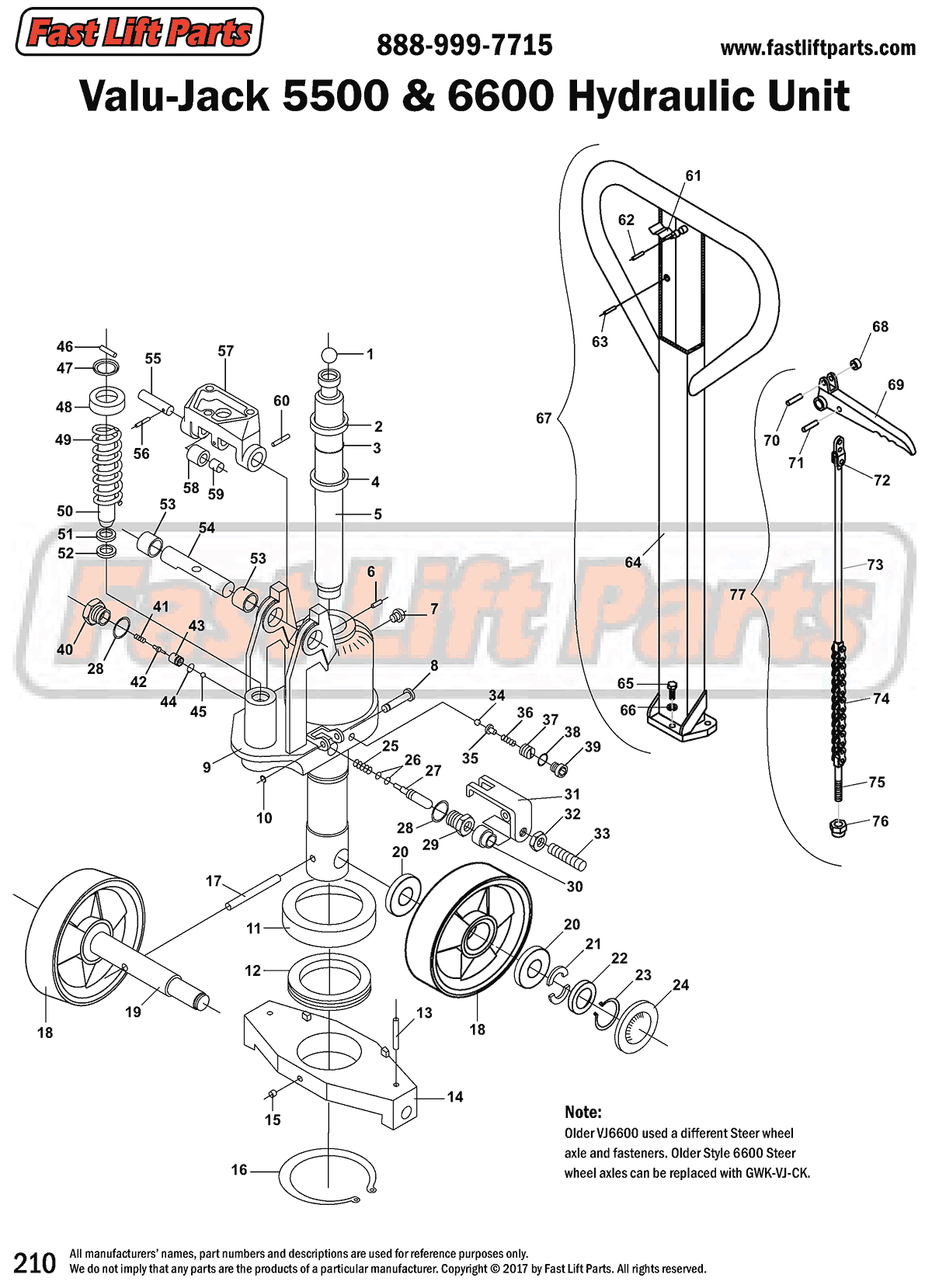

Identify your part using this line drawing of the Hydraulic Unit.

Locate a part on the frame.

  1. VJ 66146 Ball
  2. VJ 66148 Scraper
  3. VJ 66143 O-Ring
  4. VJ 66144 U-Cup
  5. VJ 66147 Ram
  6. VJ 66157 Roll Pin
  7. VJ 66149 Oil Plug
  8. VJ 66145 Shaft
  9. VJ 66156 Pump Body (No Longer Available)
  10. VJ 66114 Retaining Ring
  11. VJ 66121 Bearing Cover
  12. VJ 66122 Thrust Bearing
  13. VJ 66123 Roll Pin
  14. VJ 66118 Traverse
  15. VJ 66119 Grease Fitting (Threaded)
  16. VJ 66120 Snap Ring
  17. VJ 66115 Roll Pin
  18. Steer Wheel Assembly Options
  19. VJ 66117 Steer Wheel Axle (Older Style)
    VJ 66117-A Steer Wheel Axle
  20. VJ 66128 Bearing
  21. VJ 66126 Tab Washer (Older Style)
    VJ 66126A Split Ring
  22. VJ 66125 Round Nut (Older Style)
    VJ 66125A Retaining Washer
  23. VJ 6614 Retaining Ring
  24. VJ 66124 Hub Cap
  25. VJ 66129 Spring
  26. VJ 66130 O-Ring
  27. VJ 66131 Release Pin
  28. VJ 66107 O-Ring
  29. VJ 66136 Release Pin Guide
  30. VJ 66137 Rubber Cushion
  31. VJ 66132 Release Lever
  32. VJ 66134 Lock Nut
  33. VJ 66133 Adjustment Screw
  34. VJ 6643 Steel Ball
  35. VJ 6644 Ball Base
  36. VJ 6645 Spring
  37. VJ 6646 Plug
  38. VJ 6619 O-Ring
  39. VJ 6620 Plug
  40. VJ 66106 Plug
  41. VJ 66108 Spring
  42. VJ 66109 Valve Cone
  43. VJ 66110 Valve
  44. VJ 66111 O-Ring
  45. VJ 66112 Valve
  46. VJ 669 Roll Pin
  47. VJ 668 Pin Retainer
  48. VJ 667 Spring Cap
  49. VJ 66103 Handle Return Spring
  50. VJ 665 Pump Piston
  51. VJ 664 Scraper
  52. VJ 662 U-Cup
  53. VJ 6621 Bushing
  54. VJ 6622 Shaft
  55. VJ 6626 Handle Pin
  56. VJ 6625 Roll Pin
  57. VJ 6627 Handle Bracket
  58. VJ 66152 Pressure Roller
  59. VJ 6623 Bushing
  60. VJ 6628 Roll Pin
  61. VJ 66602 Blade Spring
  62. VJ 66604 Roll Pin
  63. VJ 66606 Roll Pin
  64. VJ 66631 Handle Frame
  65. VJ 66632 Bolt
  66. VJ 66633 Lock Washer
  67. VJ 66616 Handle Assembly
    (Includes Items 60 - 64 & 67 - 76)
  68. VJ 66603 Roller
  69. VJ 66608 Control Lever
  70. VJ 66605 Roll Pin
  71. VJ 66607 Roll Pin
  72. VJ 66613 Pin
  73. VJ 66609 Pull Rod
  74. VJ 66612 Chain
  75. VJ 66614 Connecting Screw
  76. VJ 66615 Nut
  77. VJ 66609-A Control Rod Assembly

Kits & Pumps:
