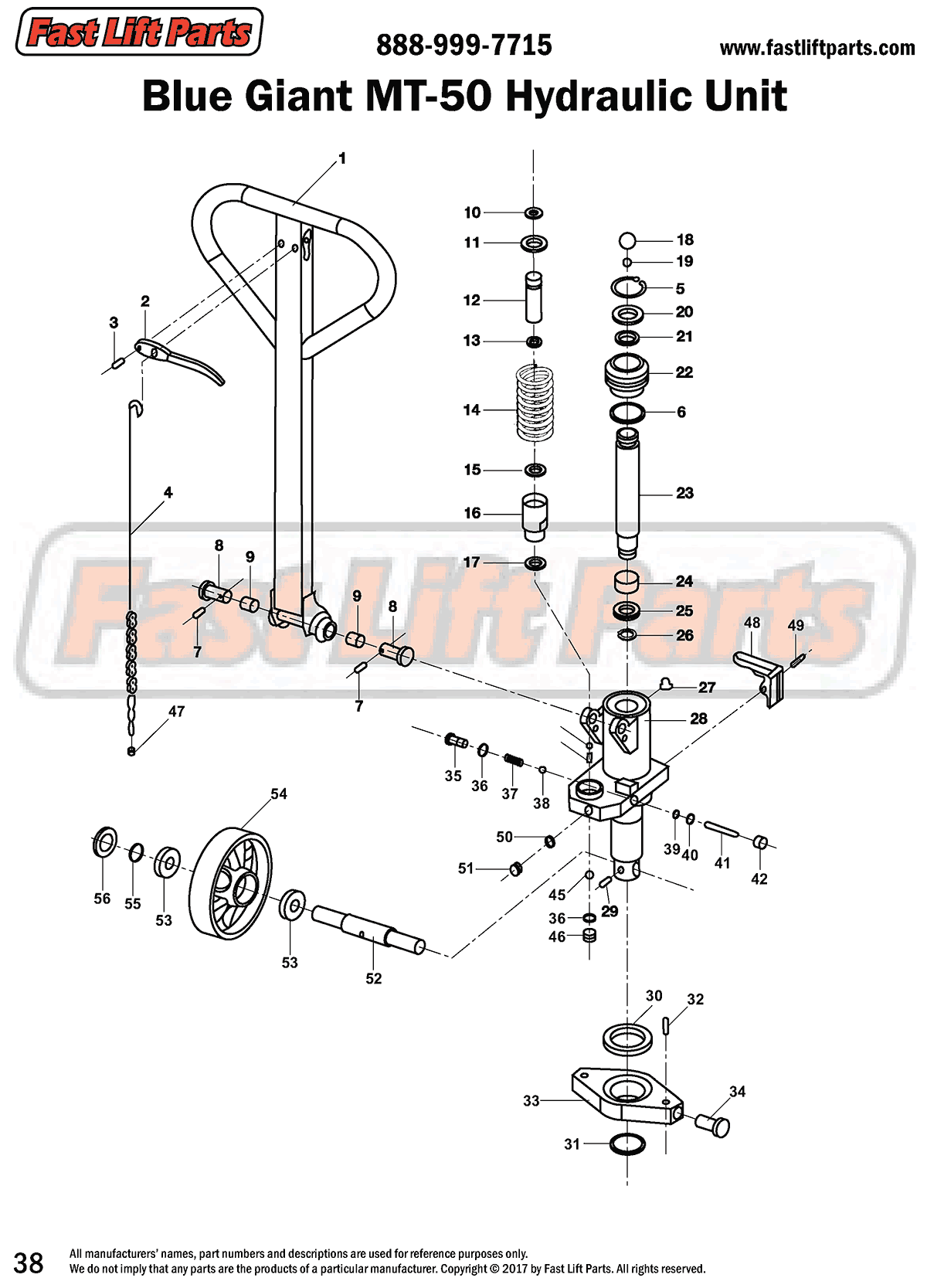

*Blue Giant MT-50 Hydraulic Unit

Identify your part using this line drawing of the Hydraulic Unit.

Locate a part on the frame.

1. BG 906-5006 Handle Assembly
2. BG 904-0149 Release Lever
3. BG 906-0012 Roll Pin
4. BG 904-0151-New (Control Rod)
   BG 904-0151-Old (Control Rod)
5. BG 906-0025 Locking Ring
6. BG 906-0002 O-Ring
7. BG 906-0039 Roll Pin
8. BG 906-0054 Handle Pin
9. BG 906-0057 Bushing
10. BG 906-0072 Circlip
11. BG 906-0027 Washer
12. BG 906-0065 Pump Piston
13. BG 906-0026 U-Cup
14. BG 906-0070 Spring
15. BG 906-0006 Oil Scraper
16. BG 906-0059 Pump Cylinder
17. BG 906-0007 Copper Washer
18. BG 018-523-99 Ball
19. BG 906-1000 Ball
20. BG 906-0005 Oil Scraper
21. BG 906-0003 O-Ring
22. BG 906-0058 Top Nut
23. BG 906-0081 Lifting Piston
24. BG 906-0000 Metal Bushing
25. BG 906-0051 U-Cup
26. BG 906-0056 Snap Ring
27. BG 906-0037 Oil Plug
28. Pump - No Longer Available
29. BG 906-0071 Roll Pin
30. BG 906-0089 Thrust Bearing
31. BG 906-0093 Circlip
32. BG 906-0049 Roll Pin
33. BG 906-0097 Traverse
34. BG 906-0046 Shoulder Pin
35. BG 906-0062 Collar Screw - Long
36. BG 906-0028 Copper Washer
37. BG 906-0036 Valve Spring
38. BG 906-0066 Ball
39. BG 906-0011 Quad Ring
40. BG 906-0009 U-Cup
41. BG 906-0061 Release Pin
42. BG 906-0060 Valve Screw
43. BG 906-0031 Ball
44. BG 906-0032 Valve Spring
45. BG 906-0067 Ball
46. BG 906-0033 Collar Screw - Short
47. BG 906-0073 Adjusting Nut
48. BG 906-0080 - No Longer Available
49. BG 906-0008 Roll Pin
50. BG 906-0030 Copper Washer
51. BG 906-0029 Screw
52. BG 906-0077 Steer Wheel Axle
53. BG 906-0075 Bearing
54. Steer Wheel Assembly Options
55. BG 906-0019 Snap Ring
56. BG 906-0055 Hub Cap
