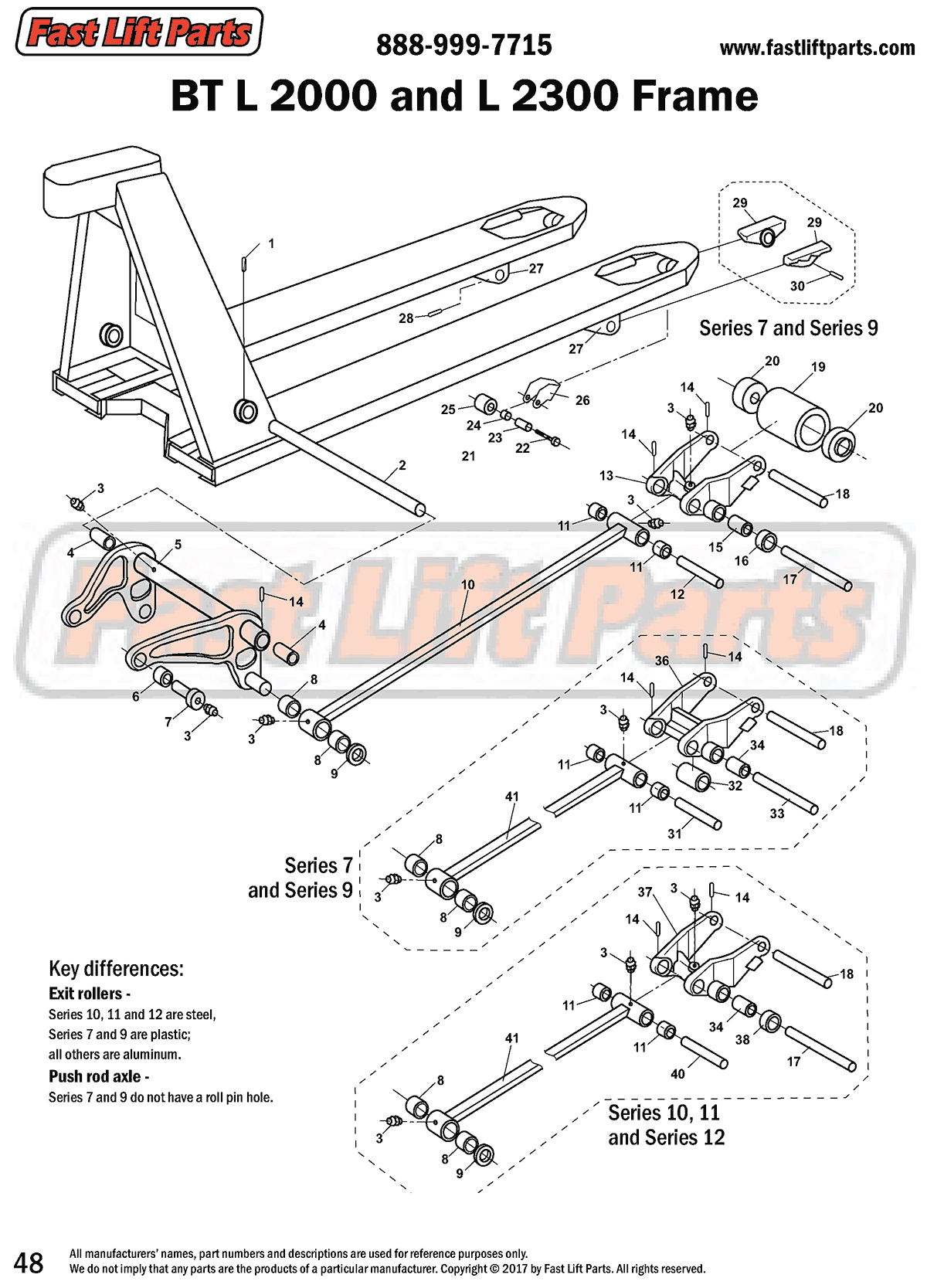

*BT L 2000/L 2300 Frame

Identify your part using this line drawing of the frame.

Locate a part on the hydraulic unit.

  1. BT 22128 Roll Pin
  2. BT 47157 Lifting Link Shaft, 27 Wide Jack
  3. BT 20026 Grease Fitting (Threaded)
    BT 27662 Grease Fitting (Press-In)
  4. BT 47167 Bushing
  5. BT 64183 Lifting Link, 27 Wide Jack
  6. BT 30018 Bushing
  7. BT 127304 Shoulder Pin, Series 10
    BT 166701 Shoulder Pin, Series 11 & 12
  8. BT 30023 Bushing
  9. BT 20013 Washer
  10. BT 48264 Push Rod
  11. BT 47117 Bushing
  12. BT 47120 Push Rod Axle
  13. BT 47137 Load Roller Bracket
  14. BT 20001 Roll Pin
  15. BT 30024 Bushing
  16. BT 58027 Exit Roller (Steel, 11.5 to 12mm thick)
  17. BT 47134 Pivot Axle
  18. BT 111257 Load Roller Axle
    BT 179393 SS Load Wheel Axle , Wet App
  19. Load Roller Assembly Options
  20. BT 167630 Bearing (newer)
    BT 22053 Bearing (older) - No Longer Available, Must buy Assembly set BT 167609
  21. BT 21385-A Axle Assembly
  22. BT 21385 Bolt
  23. BT 47151 Sleeve
  24. BT 20433 Nut
  25. BT 47150 Entry Roller
  26. BT 47110 Entry Roller Bracket
  27. BT 47135 See Item 29, Part #119911
  28. BT 20014 See Item 30, Part #27921
  29. BT 119911 Ear-Weldment
    BT 47135 Ear-Weldment
  30. BT 27921 Roll Pin
  31. BT 110777 Push Rod Axle
  32. BT 105369 Exit Roller (Nylon)
  33. BT 109478 Pivot Axle
  34. BT 51805 Bushing
  35. BT 128539 Load Roller Bracket
  36. BT 130750 Load Roller Bracket, Series 10
    BT 149466 Load Roller Bracket, Series 11 & 12
  37. BT 65601 Exit Roller (Steel, 9.5 to 10mm thick)
  38. BT 126131 Push Rod Axle
  39. BT 109566-122 Push Rod, Series 10
    BT 157213 Push Rod, Series 11 & 12
  40. BT 60056 Brake Cable Assembly (up to Series 10)
  41. BT 150785 Brake Cable Assembly (Series 11)
  42. BT 177113 Brake Cable Assembly (Series 12)
  43. BT 109305 Brake Wheel, Poly On Steel
  44. BT 156142 Steer Brake Wheel With Bearings
