  • Eagleman A Hydraulic Unit Line Drawing
1 2

Eagleman

*Eagleman A Hydraulic Unit

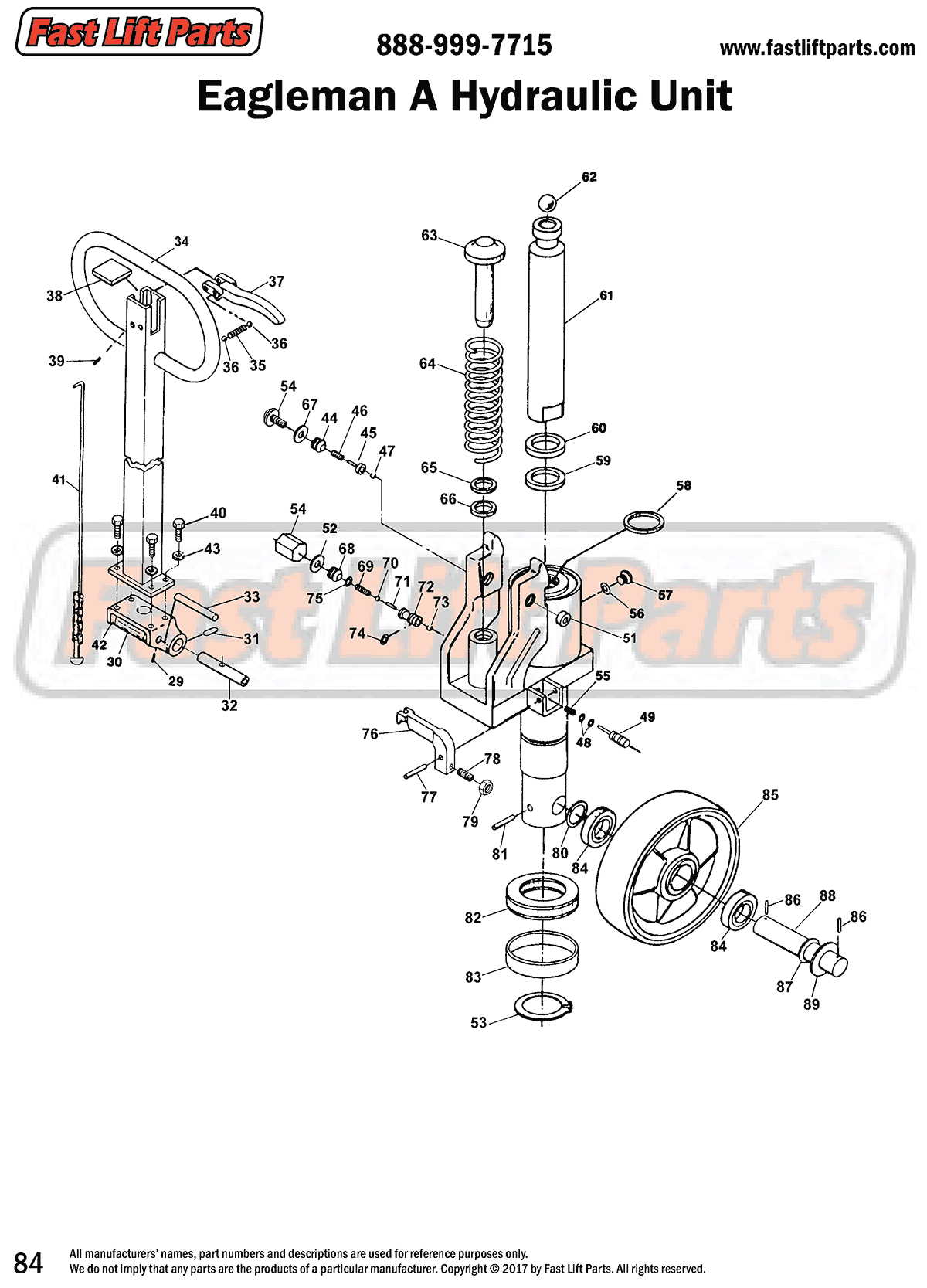

Identify your part using this line drawing of the Hydraulic Unit.

Locate a part on the frame.

  1. EA A129 Pin
  2. EA A130 Roller
  3. EA A131 Roll Pin
  4. EA A132 Handle Axle
  5. EA A133 Roller Pin
  6. EA A134 Handle Frame
    EA A194 Handle Assembly
  7. EA A135 Spring
  8. EA A136 Ball
  9. EA A137 Control Lever
  10. EA A138 Cap
  11. EA A139 Roll Pin
  12. EA A140 Bolt
  13. EA A141 Rod & Chain
    EA A141-new Rod & Chain
  14. EA A142 Bracket
  15. EA A143 Lock Washer
  16. EA A144 Plug
  17. EA A145 Overload Valve
  18. EA A146 Spring
  19. EA A147 Ball
  20. EA A148 O-Ring
  21. EA A149 Release Valve
  22. EA A150 Nut
  23. EA A151 Bushing
  24. EA A152 Washer
  25. EA A153 Snap Ring
  26. EA A154 Plug Bolt
  27. EA A155 Spring
  28. EA A156 O-Ring
  29. EA A157 Filler Screw
  30. EA A158 Top Seal
  31. EA A159 Bottom Seal
  32. EA A160 Wiper
  33. EA A161 Lift Piston
  34. EA A162 Ball
  35. EA A163 Piston
  36. EA A164 Spring
  37. EA A165 Wiper
  38. EA A166 Seal
  39. EA A167 O-Ring
  40. EA A168 Plug Bolt
  41. EA A169 Spring
  42. EA A170 Ball
  43. EA A171 Pin
  44. EA A172 Valve
  45. EA A173 Ball
  46. EA A174 O-Ring
  47. EA A175 O-Ring
  48. EA A176 Release Valve Lever
  49. EA A177 Roll Pin
  50. EA A178 Adjust Screw
  51. EA A179 Lock Nut
  52. EA A180 Washer
  53. EA A181 Roll Pin
  54. EA A182 Thrust Bearing
  55. EA A183 Bearing Holder
  56. EA A184 Bearing
  57. Steer Wheel Assembly Options
  58. EA A186 Roll Pin
  59. EA A187 Washer
  60. EA A188 Steer Wheel Axle
  61. EA A189 Washer

Kits:
