*Jet PTW Series Hydraulic Unit

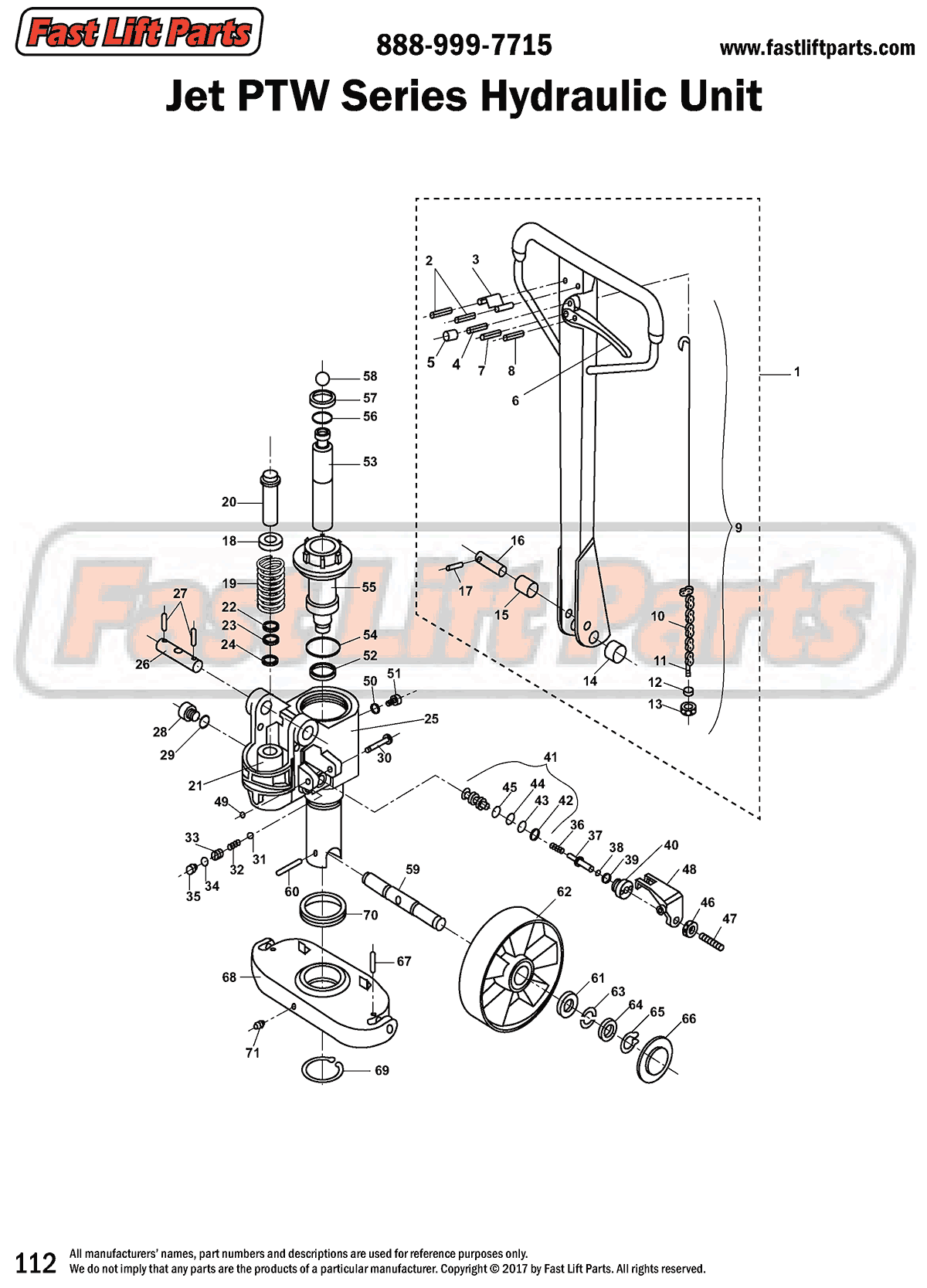

Identify your part using this line drawing of the Hydraulic Unit.

Locate a part on the frame.

  1. JT PT2036-3-1 Handle Assembly
  2. JT PT2036-1-2 Roll Pin
  3. JT PT2036-1-3 Blade Spring
  4. JT PT2036-1-4 Roll Pin
  5. JT PT2036-1-5 Rubber Stop
  6. JT PT2036-1-6 Lowering Lever
  7. JT PT2036-1-7 Roll Pin
  8. JT PT2036-1-8 Roll Pin
  9. JT PT2036-1-9 Control Rod Assembly
  10. JT PT2036-1-10 Chain
  11. JT PT2036-1-11 Chain Anchor
  12. JT TS-1540031 Jam Nut
  13. JT TS-1541011 Lock Nut
  14. JT PT2036-1-14 Bushing
  15. JT PT2036-1-15 Pressure Roller
  16. JT PT2036-1-16 Roller Shaft
  17. JT PT2036-1-17 Roll Pin
  18. JT PT2036-2-1 Spring Cap
  19. JT PT2036-2-2 Handle Return Spring
  20. JT PT2036-2-3 Pump Piston
  21. JT PT2036-2-4 Pump Cylinder
  22. JT PT2036-2-5 Wiper Seal
  23. JT PT2036-2-6 U-Cup
  24. JT PT2036-2-7 Copper Washer
  25. JT PT2036-3-2 Pump Assembly
  26. JT PT2036-2-9 Handle Pivot Pin
  27. JT PT2036-2-10 Roll Pin
  28. JT PT2036-2-11 Valve Plug
  29. JT PT2036-2-12 Seal Washer
  30. JT PT2036-2-13 Lever Pin
  31. JT PT2036-2-14 Chrome Ball
  32. JT PT2036-2-15 Overload Spring
  33. JT PT2036-2-16 Adjustment Screw
  34. JT PT2036-2-17 Seal Washer
  35. JT PT2036-2-18 Valve Plug
  36. JT PT2036-2-19 Release Pin Spring
  37. JT PT2036-2-20 Release Pin
  38. JT PT2036-2-21 O-ring
  39. JT PT2036-2-22 O-ring
  40. JT PT2036-2-23 Valve Sleeve
  41. JT PT2036-2-24 Valve Assembly
  42. JT PT2036-2-25 Backup Ring, 17MM
  43. JT PT2036-2-26 O-ring
  44. JT PT2036-2-27 Backup Ring, 14MM
  45. JT PT2036-2-28 O-ring
  46. JT PT2036-2-29 Jam Nut
  47. JT PT2036-2-30 Adjustment Screw
  48. JT PT2036-2-31 Release Lever
  49. JT PT2036-2-32 Retaining Ring
  50. JT PT2036-2-33 O-ring
  51. JT PT2036-2-34 Screw Plug
  52. JT PT2036-2-35 U-Cup
  53. JT PT2036-2-36 Lift Ram
  54. JT PT2036-2-37 O-ring
  55. JT PT2036-2-38 Cylinder Cap
  56. JT PT2036-2-39 O-ring
  57. JT PT2036-2-40 Wiper Seal
  58. JT PT2036-2-41 Chrome Ball
  59. JT PT2036-3-3 Wheel Axle
  60. JT PT2036-3-4 Roll Pin
  61. JT BB-6204 ZZ Bearing
  62. Steer Wheel Options
  63. JT PT2036-3-7 Half-Cirque Washer
  64. JT PT2036-3-8 Retaining Washer
  65. JT PT2036-3-9 Snap Ring
  66. JT PT2036-3-10 Hub Cap
  67. JT PT2036-3-12 Roll Pin
  68. JT PT2036-3-13 Pressure Plate
  69. JT PT2036-3-14 Snap Ring
  70. JT PT2036-3-15 Thrust Bearing

Kits:
