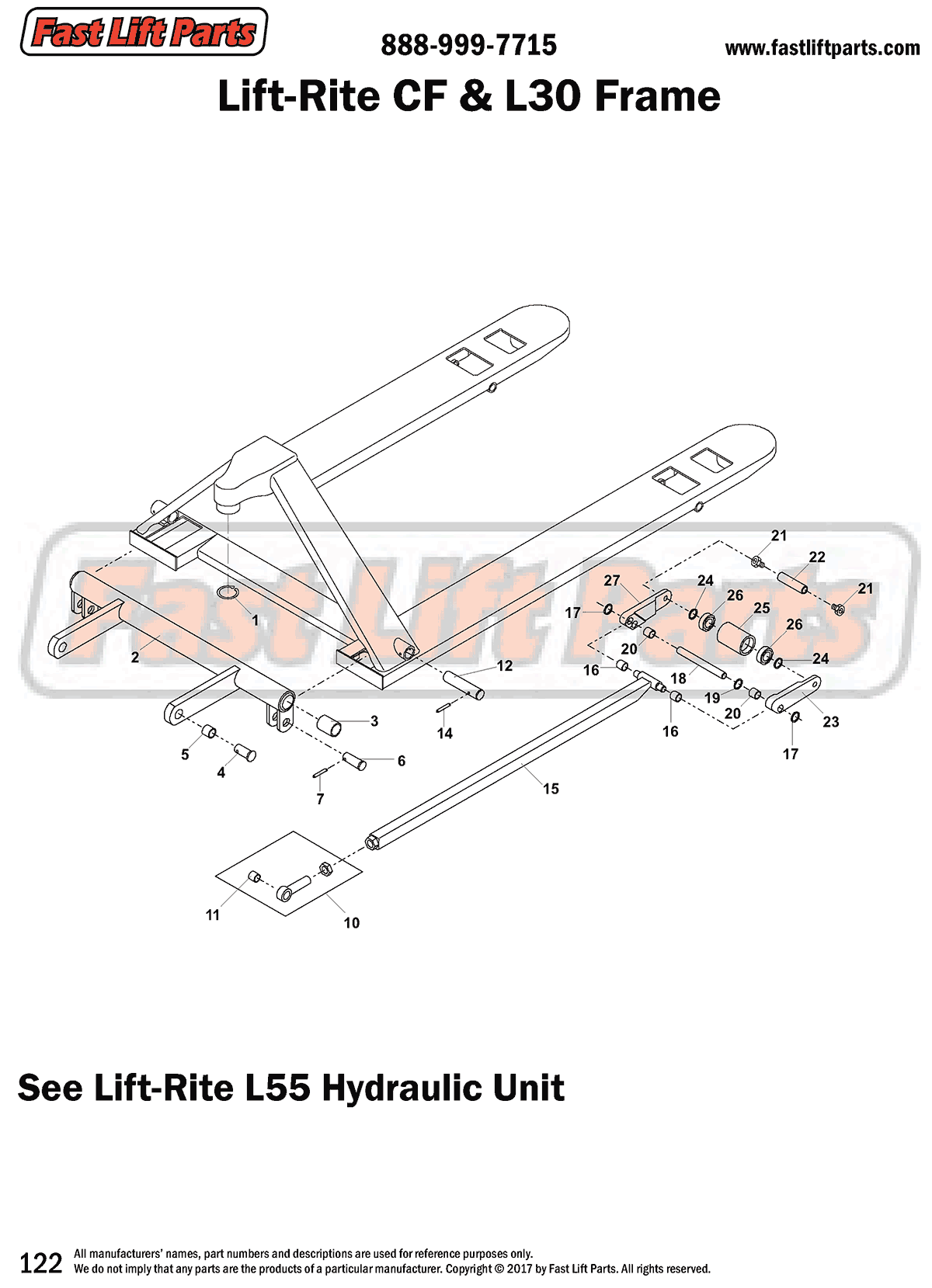

  • Lift-Rite (Big Joe) CF & L30 Frame Line Drawing
1 of 1

Fast Lift Parts

*Lift-Rite (Big Joe) CF & L30 Frame

Identify your part using this line drawing of the frame.

  1. LF PL20232 Snap Ring
  2. LF SF20202 Torsion Tube
  3. LF PL20203A Bushing
  4. LF PL30207 Thrust Plate Pin
  5. LF PL20206 Bushing
  6. LF PL20227 Eye Bolt
  7. LF PL20269 Split Pin
  8. LF PL20269 Split Pin
  9. LF PM20231C Thrust Plate
  10. LF PL20226 Eye bolt Assembly
  11. LF PL20226A Bushing
  12. LF SF20204 Bulk Head Pin
  13. LF SF20269 Split Pin
  14. LF SF29X48 Chassis
  15. LF SF20224X48U Push Rod
  16. LF PL20206 Bushing
  17. LF SF20216 Spacer Washer
  18. LF SF20219 Fork Pin
  19. LF SF20217 Retaining Ring
  20. LF PL20226A Bushing
  21. LF MI-FEF1 Screw
  22. LF SF30212-R Lever Arm "Right"
  23. LF SF20215 Roller Axle
  24. LF PL10216 Spacer Washer
  25. LF PM10210-U-B Steel Load Wheel Assembly 1-3/4 X 3 X 40/12
  26. LF PM10214S Bearing
  27. LF SF30212-L Lever Arm "Left"
