*Lift-Rite (Big Joe) LCR55 Frame

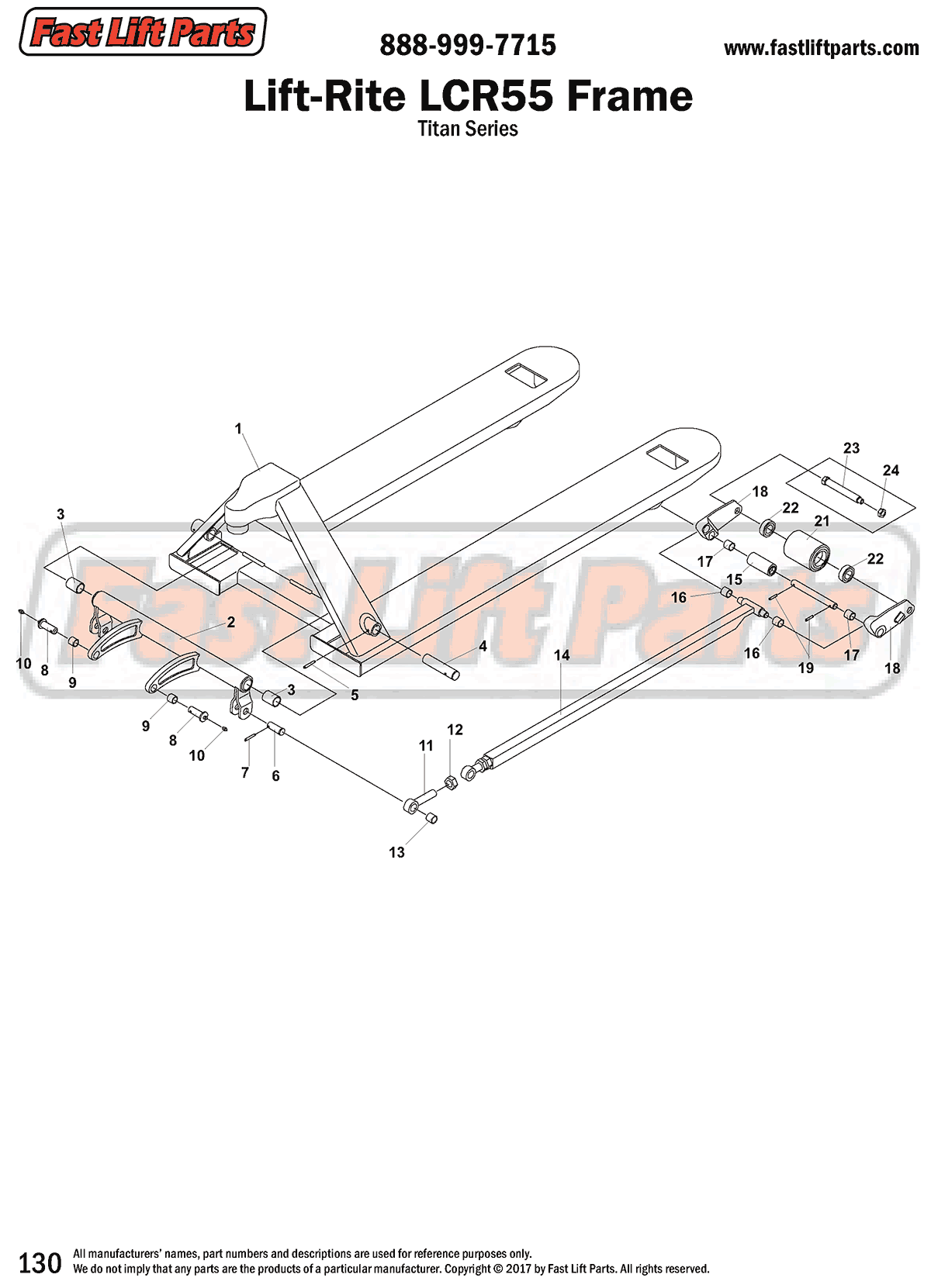

Identify your part using this line drawing of the frame.

  1. LF PN30200 Chassis(Specify Length & Width)
  2. LF PN30201 Torsion Bar (20.5" Wide Truck)
    LF PN30202 Torsion Bar (27" Wide Truck)
  3. LF PN20203A Bushing
  4. LF PN20204 Pin
  5. LF PN20269A Spring Pin
  6. LF PN20227 Eye Bolt Pin
  7. LF PN20269B Spring Pin
  8. LF 166701 Thrust Plate Pin
  9. LF PL30206 Bushing
  10. LF 27662 Grease Fitting
  11. LF PN20226 Eye Bolt
  12. LF PN10224AF Jam Nut
  13. LF PN20226A Bushing
  14. LF PN20224X36 Push Rod ( 36" Fork )
    LF PN20224X42 Push Rod ( 42" Fork )
    LF PN20224X48 Push Rod ( 48" Fork )
  15. LF PN20220 Exit Roller
  16. LF PL20206 Bushing
  17. LF PN20203 Bushing
  18. LF PN20212 Load Wheel Bracket Assembly
  19. LF PN20269 Spring Pin
  20. LF PN20219 Pivot Axle
  21. Load Wheel Assembly Options
  22. LF PL20214 Load Wheel Bearing
  23. LF PL20215 Axle Assembly
  24. LF PL10218 Lock Nut
