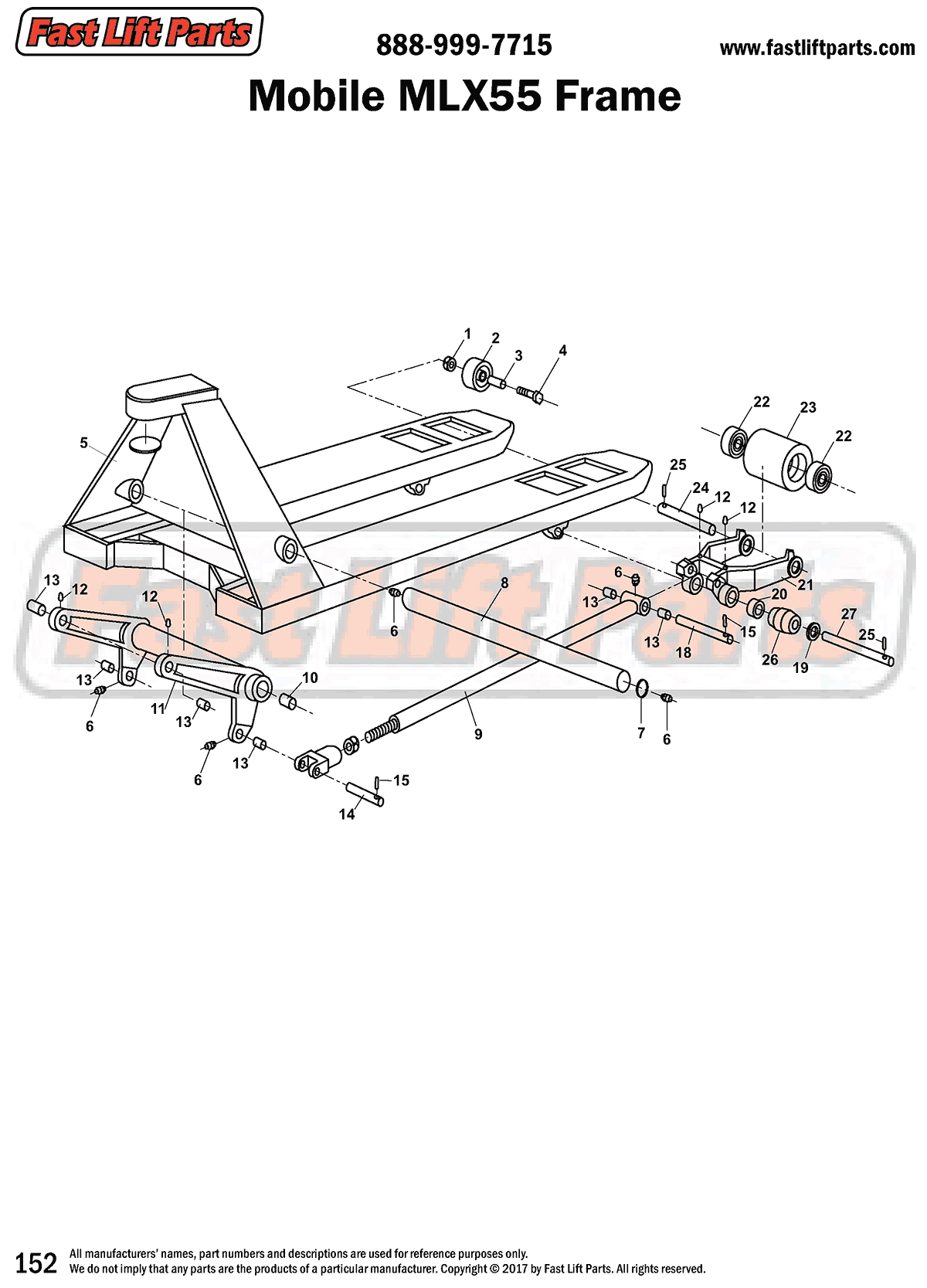

  • Mobile MLX55 Frame Line Drawing
1 of 1

Mobile

*Mobile MLX55 Frame

Identify your part using this line drawing of the frame.

Locate a part on the hydraulic unit.

  1. MO 120X405 Nut
  2. MO 120X402 Entry Roller
  3. MO 120X311 Sleeve
  4. MO 120X310 Bolt
  5. MO 12X1996 Spacer Plate
  6. MO 120X659 Grease Fitting
  7. MO 120X613 Retaining Ring
  8. MO 120X618 Bell Crank Shaft
  9. MO 120X505 Push Rod
  10. MO 120X616 Bushing
  11. MO 120X656 Bell Crank
  12. MO 120X658 Oiler Fitting
  13. MO 120X606 Bushing
  14. MO 120X526 Pivot Pin
  15. MO 120X607 Roll Pin
  16. MO 120X520 Clevis
  17. MO 120X521 Nut
  18. MO 120X515 Push Rod Pin
  19. MO 120X614 Exit Roller
  20. MO 120X615 Bushing
  21. MO 120X400 Load Roller Bracket
  22. MO 120X210 Bearing
  23. Load Roller Assembly Options
  24. MO 120X211 Load Wheel Axle
  25. MO 120X608 Roll Pin
  26. MO 120X407 Exit Roller
  27. MO 120X214 Bracket Axle

This item is either out of stock or cannot be ordered online. Please call to confirm price, availability, and/or freight costs.
