*Multiton TM 55 Frame

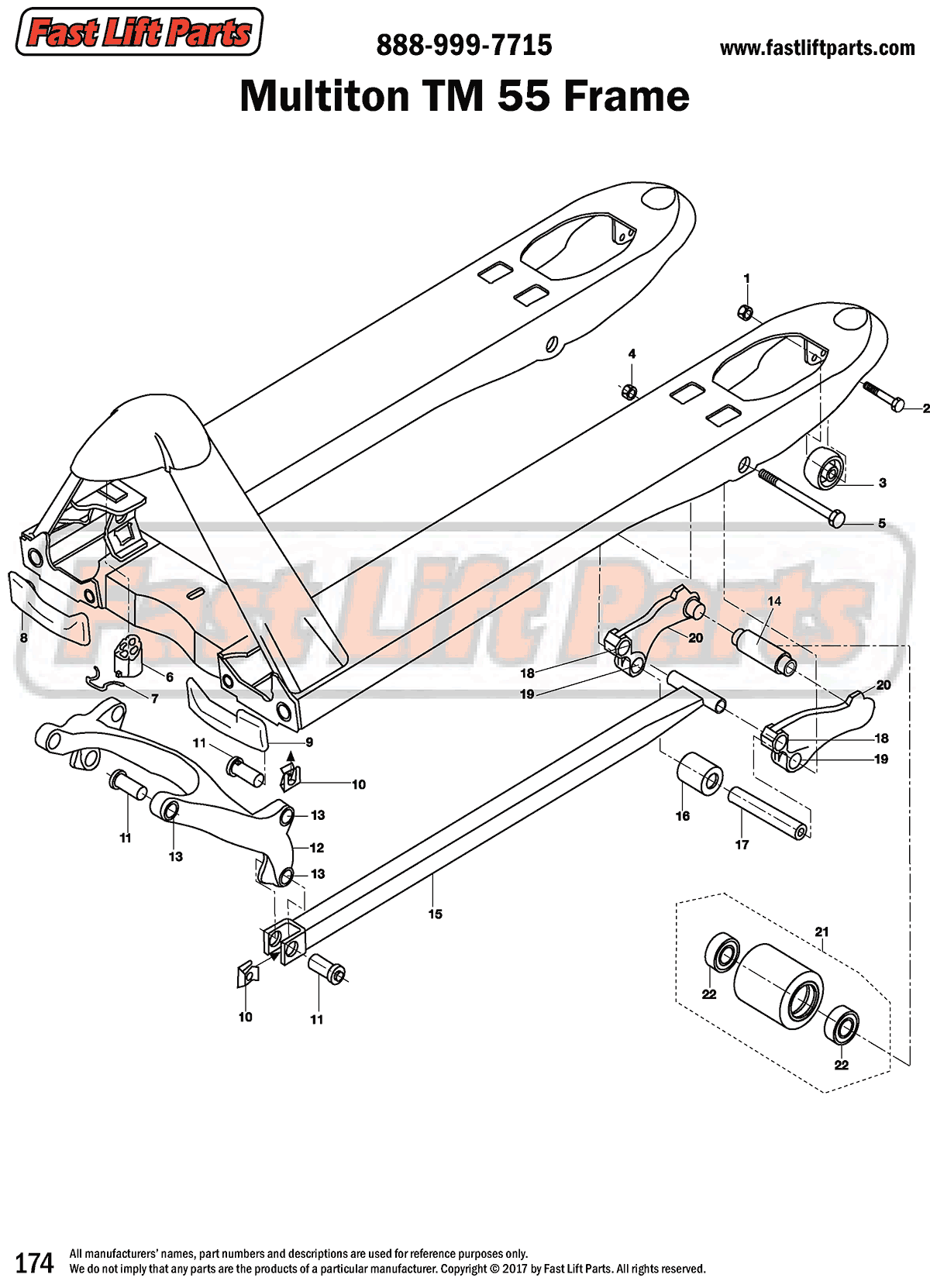

Identify your part using this line drawing of the frame.

Locate a part on the hydraulic unit.

Locate a part on the handle.

1. MU 200067160 Lock Nut
2. MU 080590000 Hex Head Screw
3. MU 090000000 Entry Roller
4. MU 080211000 Hex Head Nut
5. MU 200178430 Exit Roller Bolt
6. MU 090125002 Head Insert for Ram
7. MU 090126000 Head Insert Clip
8. MU 090227012 Bumper Plate Left,Red
   MU 090227002 Bumper Plate Left, Grey
9. MU 090227011 Bumper Plate Right, Red
   MU 090227001 Bumper Plate Right, Grey
10. MU 090129000 Clip
11. MU 090128000 Frame Pin Traverse
12. MU 090160002 Lifting Link - Please Call for Price & Availability
13. MU 200004400 Bushing
14. MU 090154001 Load Roller Axle
15. MU 090147008 Push Rod,36"
    MU 090147011 Push Rod,46" - No Longer Available
    MU 090147012 Push Rod,48"
16. MU 090156000 Exit Roller
17. MU 090155000 Exit Roller Axle
18. MU 200178270 Bushing, L/R Bracket
19. MU 200178260 Bushing, L/R Bracket
20. MU 090151021 Load Roller Bracket Assy
21. Load Roller Assembly Options
22. MU 200178810 Bearing
