*Rol-Lift Series T Frame

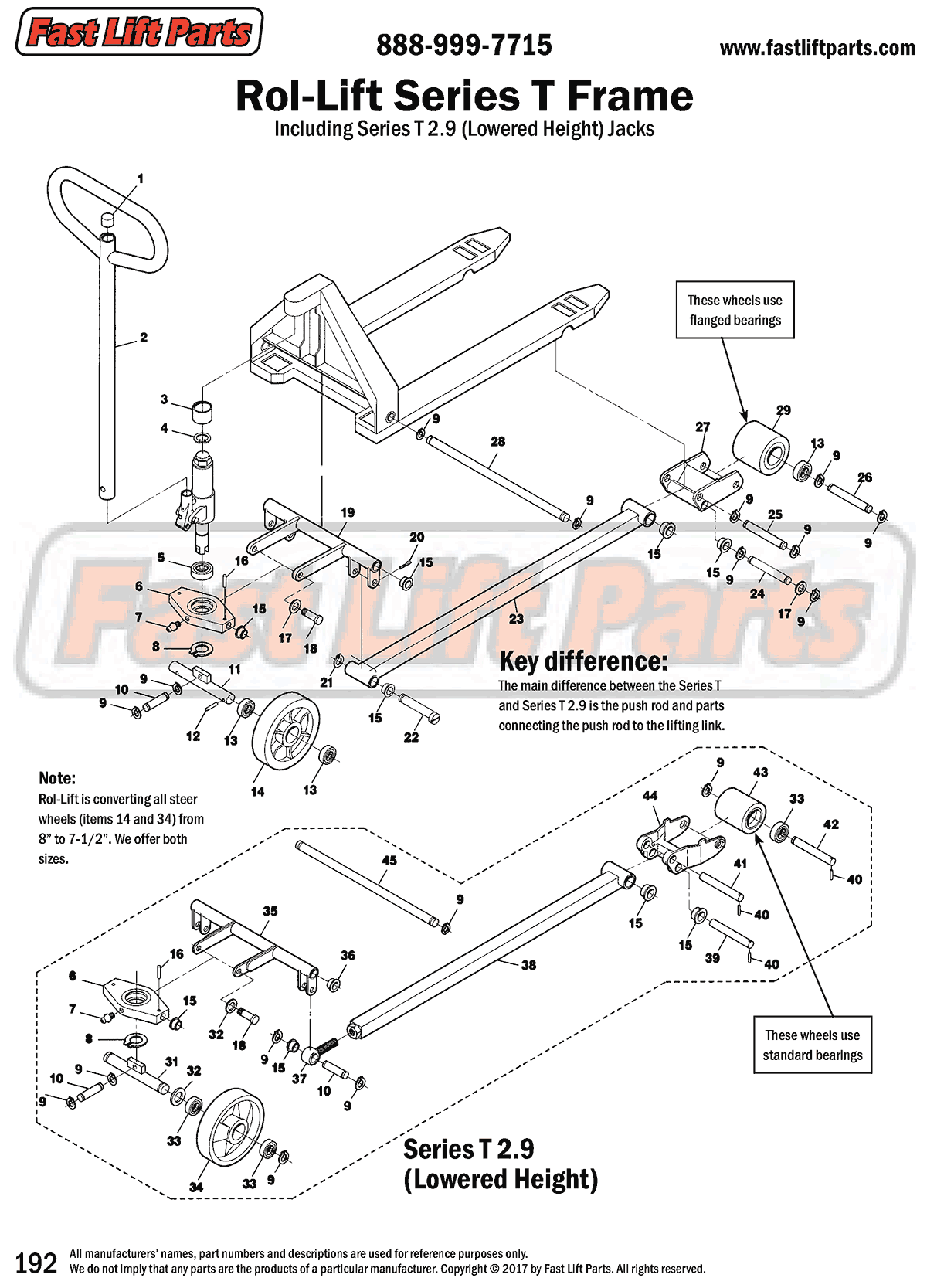

Identify your part using this line drawing of the frame.

Locate a part on the hydraulic unit.

  1. RL 3-27137 Handle Plug
  2. RL 7-60017 Handle Frame
  3. RL 4-00103 Bushing
  4. RL 3-11005 Snap Ring
  5. RL 3-70001 Traverse Bearing
  6. No Longer Available
  7. RL 1-20002 Grease Fitting
  8. RL 3-11002 Snap Ring
  9. RL 3-11003 Snap Ring
    RL 3-11036 Snap Ring
  10. RL KIT-5144-TPTUM Pin w/ Snap Ring
  11. RL 7-60021 Steer Wheel Axle
  12. RL 3-25801-06 Roll Pin
  13. RL 3-70002 Bearing,Flanged
    RL T-22-WA Bearing,Wet Application
  14. Steer Wheel Assembly Options
  15. RL 3-27020 Bushing
  16. RL 3-25800-07 Roll Pin
  17. RL 3-27021 Washer
  18. RL 4-00107 Shoulder Pin
  19. RL KIT-5037-TPTUM Lifting Link
  20. RL 3-04501-05 Set Screw
  21. RL 3-11004 Snap Ring
  22. RL 4-00308 Eccentric Pin
  23. RL 7-60010-04 Push Rod
  24. RL 4-61036 Pivot Axle
    RL 4-00102 Pivot Axle
  25. RL 4-61095 Push Rod Axle
    RL 4-00101 Push Rod Axle
  26. RL 4-00100 Load Roller Axle
  27. RL 4-00089-HD Load Roller Bracket
  28. RL 4-00117-02 Lifting Link Shaft
  29. Load Roller Assembly Options
  30. RL KIT-5090-TPTUM Steer Wheel Axle Assy
  31. RL 3-10203 Washer
  32. RL BRG-5000-TPTUM Bearing
  33. RL WHL-5012-TPTUM-HD Steer Wheel Assembly
  34. No Longer Available
  35. RL BSH-5001-TPTUM Bushing
  36. RL PHR-5010-TPTUM Eye Bolt
  37. No Longer Available
  38. RL PNB-5025-TPTUM Pivot Axle
    RL PNB-5020-TPTUM Pivot Axle
  39. RL 3-25801-06 Roll Pin
  40. RL PNB-5019-TPTUM Push Rod Axle
  41. RL KIT-5136-TPTUM Load Roller Axle
  42. Load Roller Assembly Options
  43. No Longer Available
  44. RL KIT-5115-TPTUM Lifting Link Shaft
