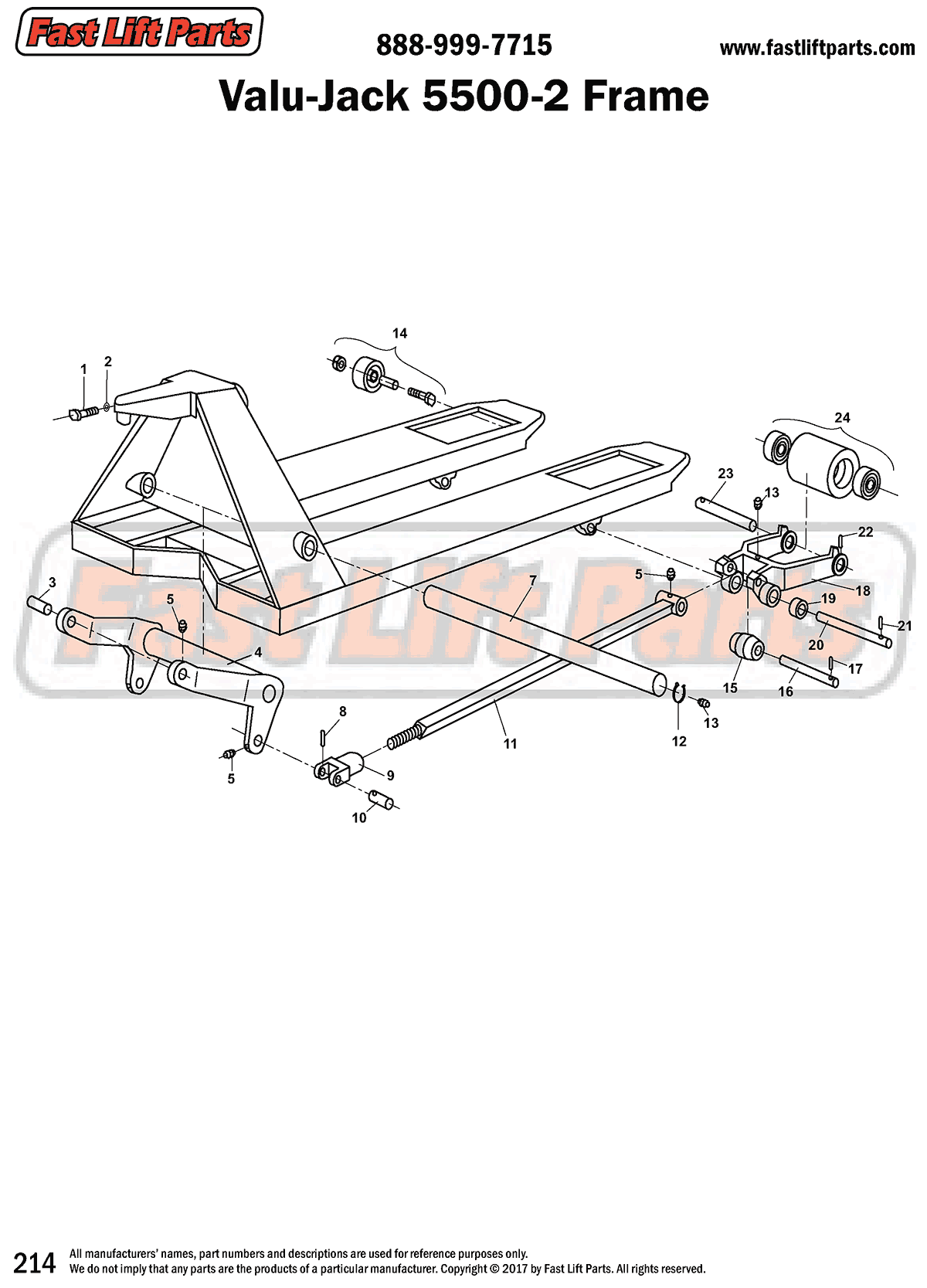

• Valu-Jack 5500-2 Frame Line Drawing
1 1

Valu-Jack

*Valu-Jack 5500-2 Frame

Identify your part using this line drawing of the frame.

Locate a part on hydraulic unit.

  1. VJ 55F42 Bolt
  2. VJ 55F41 Washer
  3. VJ 55F14 Pin
  4. VJ 55F43 Lifting Link, 27" wide frame
  5. VJ 55F43-20.5 Lifting Link, 20.5" wide frame
  6. VJ 55F22 Lube Fitting
  7. VJ 55F20 Shaft, 27" wide fork
  8. VJ 55F20-20.5 Shaft, 20.5" wide fork
  9. VJ 55F16 Roll Pin
  10. VJ 55F17 Rod Fitting , Clevis
  11. VJ 55F18 Pin
  12. VJ 55F19 Push Rod, 48" Forks
  13. VJ 55F19-36 Push Rod, 36" Forks
  14. VJ 55F21 Retaining Ring
  15. VJ 55F15 Lube Fitting
  16. VJ 55F36A Entry Roller Assy, Inc. Axle, Nut, Roller & Sleeve
  17. VJ 55F36 Entry Roller
  18. VJ 55F23 Exit Roller
  19. VJ 55F25 Shaft
  20. VJ 55F24 Roll Pin
  21. VJ 55F31 Load Roller Bracket
  22. VJ 55F28 Intermediate Exit Roller
  23. VJ 55F26 Shaft
  24. VJ 55F27 Roll Pin
  25. VJ 55F30 Roll Pin
  26. VJ 55F29 Shaft
  27. See Load Wheel Options

This item is either out of stock or cannot be ordered online. Please call to confirm price, availability, and/or freight costs.
