*Clark CJ55 Frame

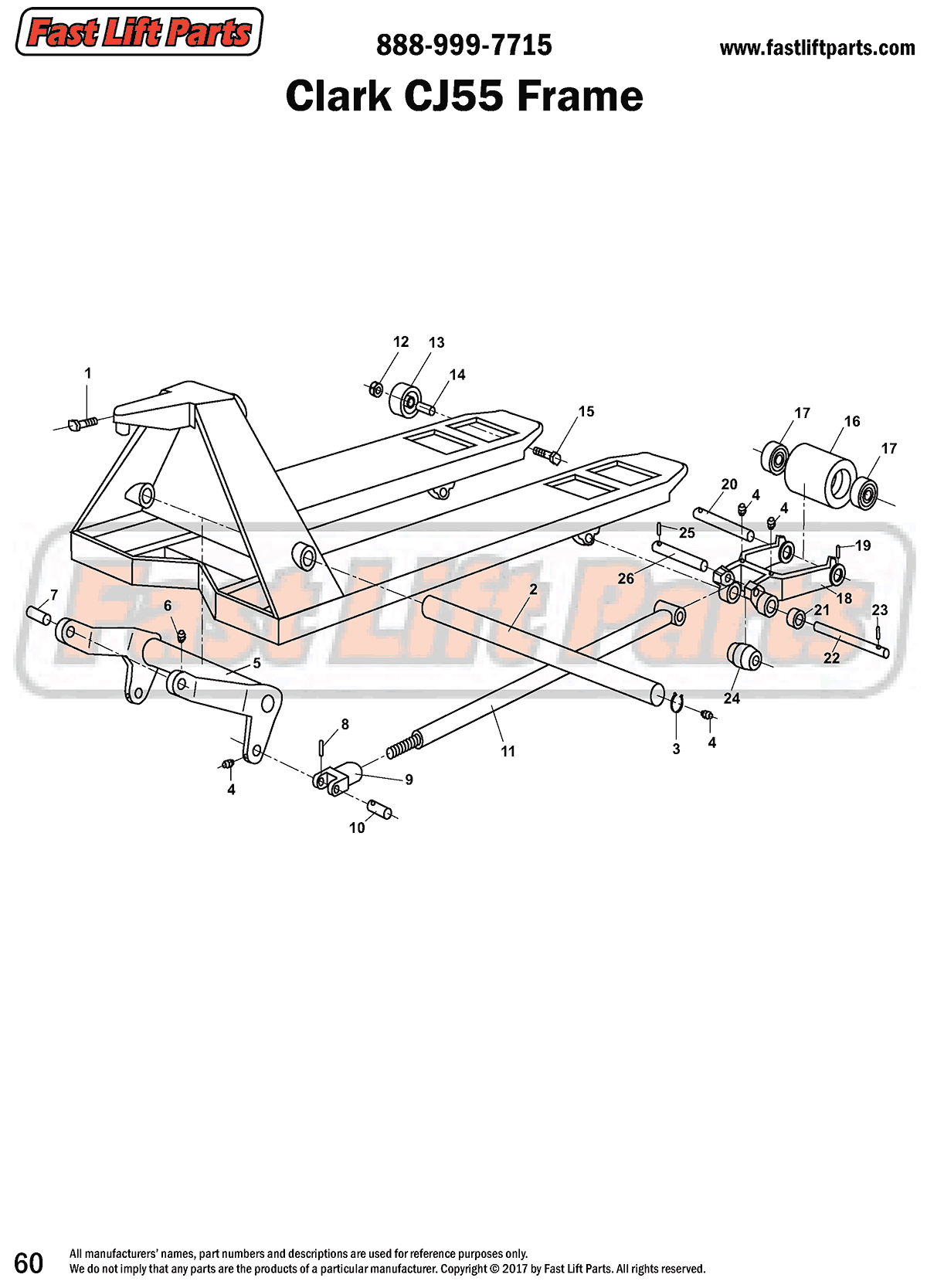

Identify your part using this line drawing of the frame.

Locate a part on the hydraulic unit.

  1. CL 1808308 Set Screw
  2. CL 1808284 Bell Crank Shaft (20.5 inch Frame)
  3. CL 1808285 Bell Crank Shaft (27 inch Frame)
  4. CL 1808286 Locking Ring
  5. CL 1808279 Oiler
  6. CL 1808309 Bell Crank, 20.5 inch Fork
  7. CL 1808310 Bell Crank, 27 inch Fork
  8. CL 1808287 Oiler
  9. CL 1808278 Bell Crank Pin
  10. CL 1808280 Roll Pin
  11. CL 1808281 Joint
  12. CL 1808282 Joint Pin
  13. CL 1808283 Push Rod
  14. CL 1808306 Nut
  15. CL 1808305 Entry Roller
  16. CL 1808304 Sleeve
  17. CL 1808303 Bolt
  18. Load Roller Assembly Options
  19. CL 1808273 Bearing
  20. CL 1808296 Load Roller Bracket
  21. CL 1808295 Roll Pin
  22. CL 1808294 Load Wheel Axle
  23. CL 1808293 Rear Guild Roller
  24. CL 1808291 Hanger Axle
  25. CL 1808292 Roll Pin
  26. CL 1808288 Exit Roller
  27. CL 1808289 Roll Pin
  28. CL 1808290 Push Rod Axle
