*Dayton 3KR84 Frame

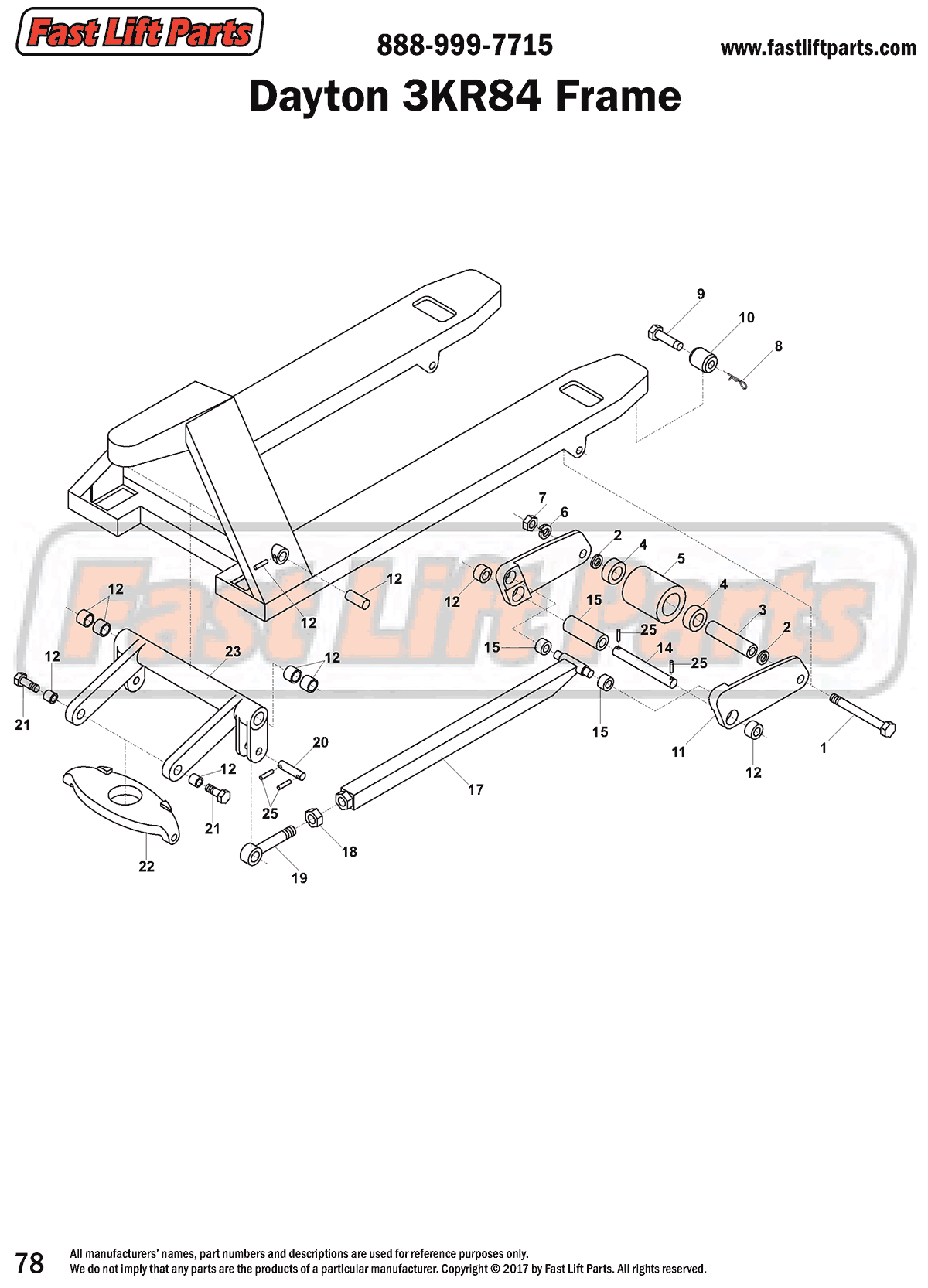

Identify your part using this line drawing of the frame.

Locate a part on the hydraulic unit.

1. WW PM-1F Bolt , LW Axle
2. WW PM-2F Washer
3. WW PM-3F Shaft, Sleeve
4. WW PM-4F Bearing
5. Load Wheel Assembly Options
6. WW PM-6F Lock Washer
7. WW PM-7F Nut
8. WW PM-8F Cotter Pin
9. WW PM-9F Pin
10. WW PM-10F Entry Roller
11. WW PM-11F Bracket Assembly, Set LH & RH
12. WW PM-12F Bushing
13. WW PM-13F Roll Pin
14. WW PM-14F Roll Pin
15. WW PM-15F Bushing
16. WW PM-16F Exit Roller
17. WW PM-17F Push Rod
18. WW PM-18F Jam Nut
19. WW PM-19F Eye Bolt
20. WW PM-20F Pin
21. WW PM-21F Shoulder Bolt
22. WW PM-22F Traverse Plate
23. WW PM-23F Lifting Link
24. WW PM-24F Pin
25. WW PM-25F Roll Pin
