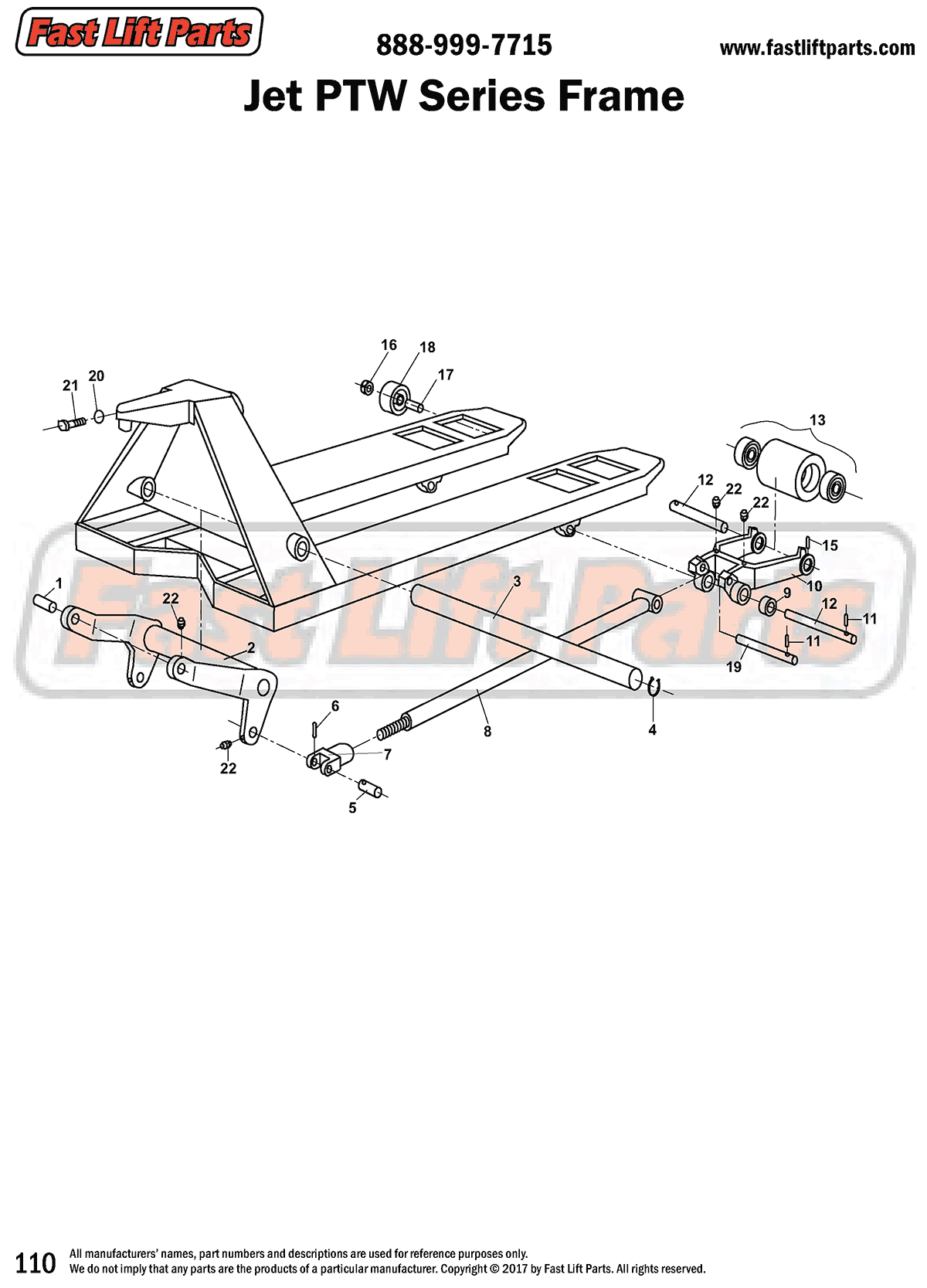

  • Jet PTW Series Frame Line Drawing
1 of 1

Jet

*Jet PTW Series Frame

Identify your part using this line drawing of the frame.

Locate a part on the hydraulic unit.

  1. JT PT2036-3-11 Pin
  2. JT PT2036-3-17 Lift Arm, 20.5" Frame
    JT BF2736-3-17 Lift Arm, 27" Frame
  3. JT PT2036-3-18 Long Shaft, 20.5" Frame
    JT BF2736-3-18 Long Shaft, 27" Frame
  4. JT PT2036-3-19 Snap Ring
  5. JT PT2036-3-21 Pin
  6. JT PT2036-3-22 Roll Pin
  7. JT PT2036-3-23 Joint
  8. JT PT2036-3-24 Push Rod, 36" Forks
    JT PT2042-3-24 Push Rod, 42" Forks
    JT PT2048-3-24 Push Rod, 48" Forks
  9. JT PT2036-3-25 Bushing
  10. JT PT2036-3-26 Load Wheel Bracket
  11. JT PT2036-3-27 Roll Pin
  12. JT PT2036-3-28 Pivot Axle
  13. Load Wheel Assembly Options
  14. JT PT2036-3-30 Load Wheel Axle
  15. JT PT2036-3-31 Roll Pin
  16. JT PT2036-3-32 Snap Ring
  17. JT PT2036-3-33 Entry Roller Shaft
  18. JT PT2036-3-34 Entry Roller
  19. JT PT2036-3-35 Shaft
  20. JT PT2036-3-37 Lock Washer
  21. JT PT2036-3-38 Set Screw
  22. JT PT2036-3-16 Grease Fitting

This item is either out of stock or cannot be ordered online. Please call to confirm price, availability, and/or freight costs.
