*Lift-Rite (Big Joe) L-50 Frame

(Incl Low-Profile Mini & CHEP 4-Way)

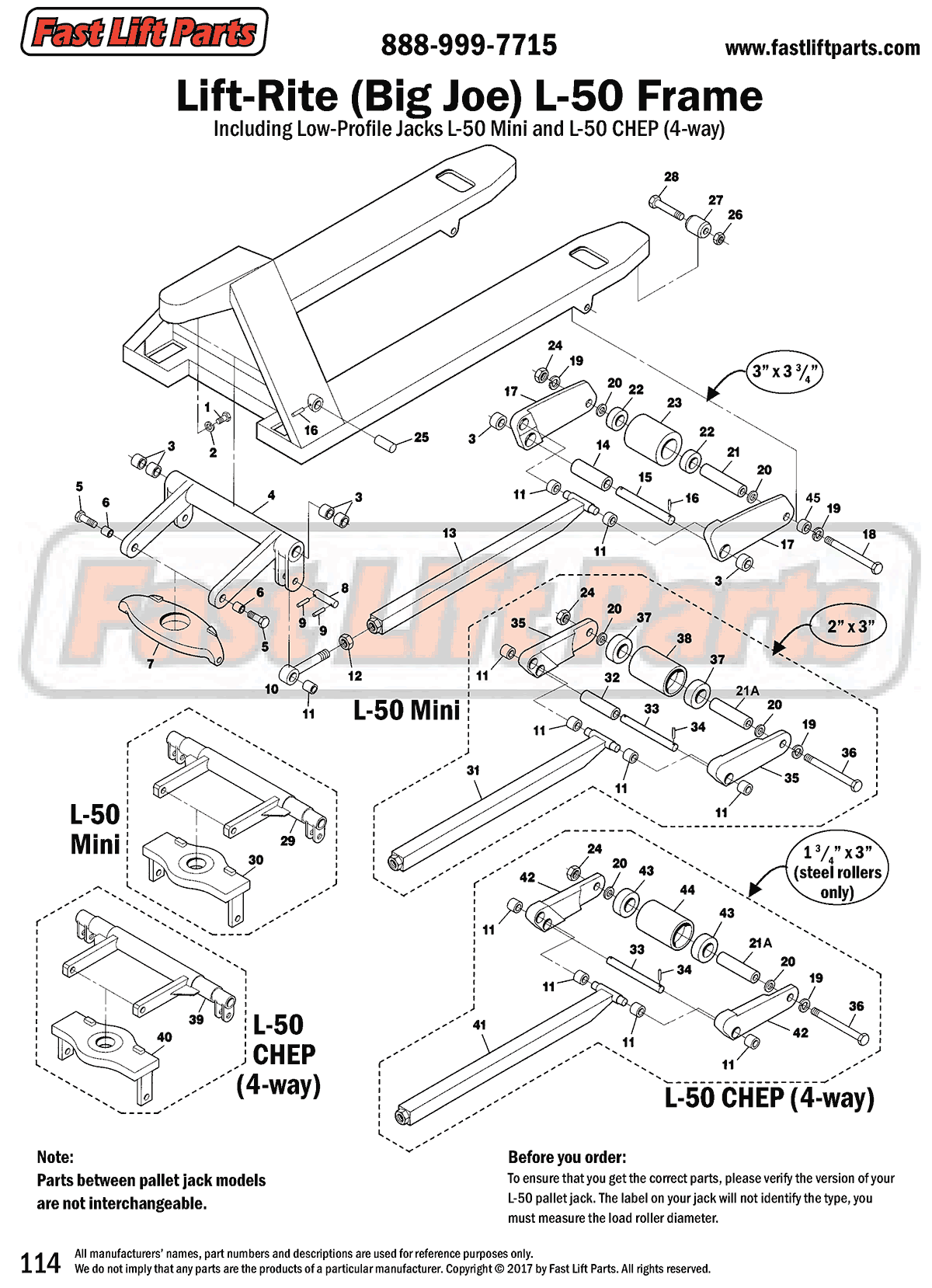

Identify your part using this line drawing of the frame.

Locate a part on the hydraulic unit.

  1. LF 10232 Bolt
  2. LF 10232-A Lock Washer
  3. LF 10203 Bushing
  4. LF 10201 Lifting Link, 20-1/2 inch Wide Jack, Special Order
    LF 10202 Lifting Link, 27 inch Wide Jack, Special Order
  5. LF 10275 Shoulder Bolt
  6. LF 10203 Bushing
  7. LF 10231 Traverse
  8. LF 10227 Pin
  9. LF 10228 Roll Pin
  10. LF 10226 Eye Bolt
    LF 10226-C Eye Bolt
  11. LF 10206 Bushing
  12. LF 10224-A Nut (Fine Thread)
    LF 10224-A-C Nut (Coarse Thread)
  13. LF 10224-48 Push Rod, 48 inch Forks. NLA.
    LF 10224-36 Push Rod, 36 inch Forks
  14. LF 10220 Exit Roller
  15. LF 10219 Pivot Axle
  16. LF 10209 Roll Pin
  17. LF 10212-LR Load Roller Brackets
  18. LF 10215 Load Roller Axle Assy
  19. LF 10217 Lock Washer
  20. LF 10216 Washer
  21. LF 10214-C Sleeve
    (21a) LF 10500 Bushing Tube
  22. LF 10214 Bearing
  23. Load Roller Assembly Options
  24. LF 10218 Nut
  25. LF 10204 Lifting Link Pin
  26. LF 10223 Nut (Older Style)
  27. LF 10221 Entry Roller (Older Style)
    LF 10281 Entry Roller (Newer Style)
  28. LF 10222 Bolt (Older Style)
    LF 10285 Nut,Bolt & Sleeve Assy (Newer)
  29. LF 10202-M Lifting Link, 27 inch Wide Jack (L-50 Mini), Special Order
  30. LF 10231-M Traverse, L-50 Mini, Special Order
  31. LF 10224-36-M Push Rod, 36 inch Forks (Fine Thread), Special Order
    LF 10224-42-M Push Rod, 42 inch Forks (Fine Thread), Special Order
    LF 10224-48-M Push Rod
  32. LF 10220-M Exit Roller
  33. LF 10219-M Pivot Axle
  34. LF 10269 Roll Pin
  35. LF 10212-M Load Roller Brackets
  36. LF 10215-M Load Roller Axle Assy
  37. LF 10214-M-P Bearing (use w/ poly LR)
    LF 10214-M-S Bearing (use w/ steel LR)
  38. Load Roller Assembly Options
  39. LF PF-10203 Lifting Link, 33 inch Wide Jack, Special Order
  40. LF 10231-4-M Traverse, 33 inch Wide Jack, Special Order
  41. LF C-10224-48 Push Rod, 48 inch Forks (Fine Thread), Special Order
  42. LF C-10212-LR Load Roller Brackets
  43. LF C-10214 Bearing
  44. LF C-10210-A Load Roller Assy
  45. LF 20212B Bushing, Axle Adapter
