*Lift-Rite (Big Joe) L-50 Hydraulic Unit

(Incl. Low-Profile Mini & CHEP 4-Way)

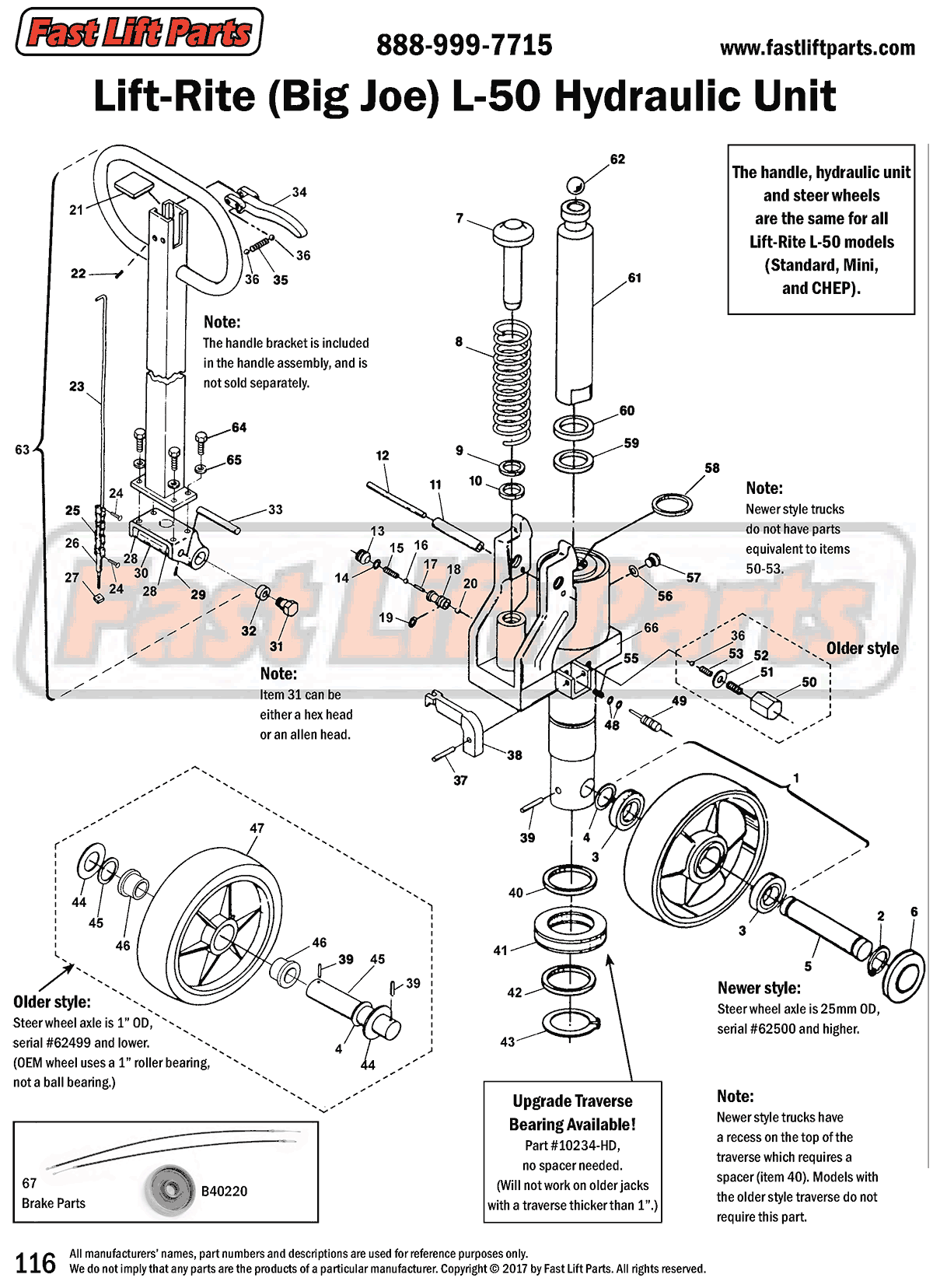

Identify your part using this line drawing of the Hydraulic Unit.

Locate a part on the frame.

  1. Steer Wheel Assembly Options
  2. LF 10237 Snap Ring
  3. LF 10238-B Ball Bearing
  4. LF 10239 Washer
  5. LF 10240-E Steer Wheel Axle
  6. LF 10236-C Hub Cap
  7. LF 10250 Pump Piston Assembly
  8. LF 10253 Spring
  9. LF 10251 Scraper
  10. LF 10252 U-Cup
  11. LF 10277-B Sleeve
  12. LF 10277-A Roll Pin
  13. LF 10266 Screw Plug
  14. LF 10265 O-Ring
  15. LF 10264 Spring
  16. LF 10261 Ball
  17. LF 10263 Roll Pin
  18. LF 10262 Valve
  19. LF 10256 O-Ring
  20. LF 10261 Ball
    LF 10261-A Ball
  21. LF 10274-E Handle Cap
  22. LF 10274-D Roll Pin
  23. LF 10274-A Control Rod
  24. LF 10273 Pin
  25. LF 10272 Chain
  26. LF 10270 Lower Control Rod
  27. LF 10271 Adjusting Nut
  28. LF 10206 Bushing
  29. LF 10274-S Roll Pin
  30. LF 10274-R Roller
  31. LF 10275 Shoulder Bolt
    LF 10275-A Shoulder Bolt
  32. LF 10203 Bushing
    LF 10203-A Bushing
  33. LF 10274-P Pin
  34. LF 10274-B Control Lever
  35. LF 10274-C Spring
  36. LF 10254 Ball
  37. LF 10269 Roll Pin
  38. LF 10268 Release Lever
  39. LF 10242 Roll Pin
  40. LF 10233 Spacer
  41. LF 10234 Thrust Bearing
    LF 10234-HD Heavy Duty Thrust Bearing (Newer Style)
  42. LF 10239 Washer
    LF 10234-A Washer
  43. LF 10235 Snap Ring
  44. LF 10241 Washer
  45. LF 10240 Steer Wheel Axle, 8 inch Length, 1 inch OD (for Roller Bearing)
  46. LF 10238-A Flanged Bearing
    LF 10238-R Roller Bearing (For OEM Wheel Only)
  47. Steer Wheel Assembly Options
  48. LF 10259 O-Ring
  49. LF 10260 Release Pin
  50. LF 10257 Nut
  51. LF 10257-B Screw
  52. LF 10257-A Washer
  53. LF 10255 Spring
  54. LF 10258 Spring
  55. LF 10259-A Washer
  56. LF 10267 Filler Plug
  57. LF 10246 U-Cup
  58. LF 10249 U-Cup
  59. LF 10245 Scraper
  60. LF 10243 Ram
  61. LF 10244 Ball
  62. LF 10276-A Handle Assembly
  63. LF 10274-F Bolt
  64. LF 10274-G Lock Washer
  65. LF B40217 Brake Cable Assembly (Not Shown)
  66. LF B40220 Brake Wheel, Poly (Not Shown)

    Kit(s):
