*Lift-Rite (Big Joe) LRP 5000 Hydraulic Unit

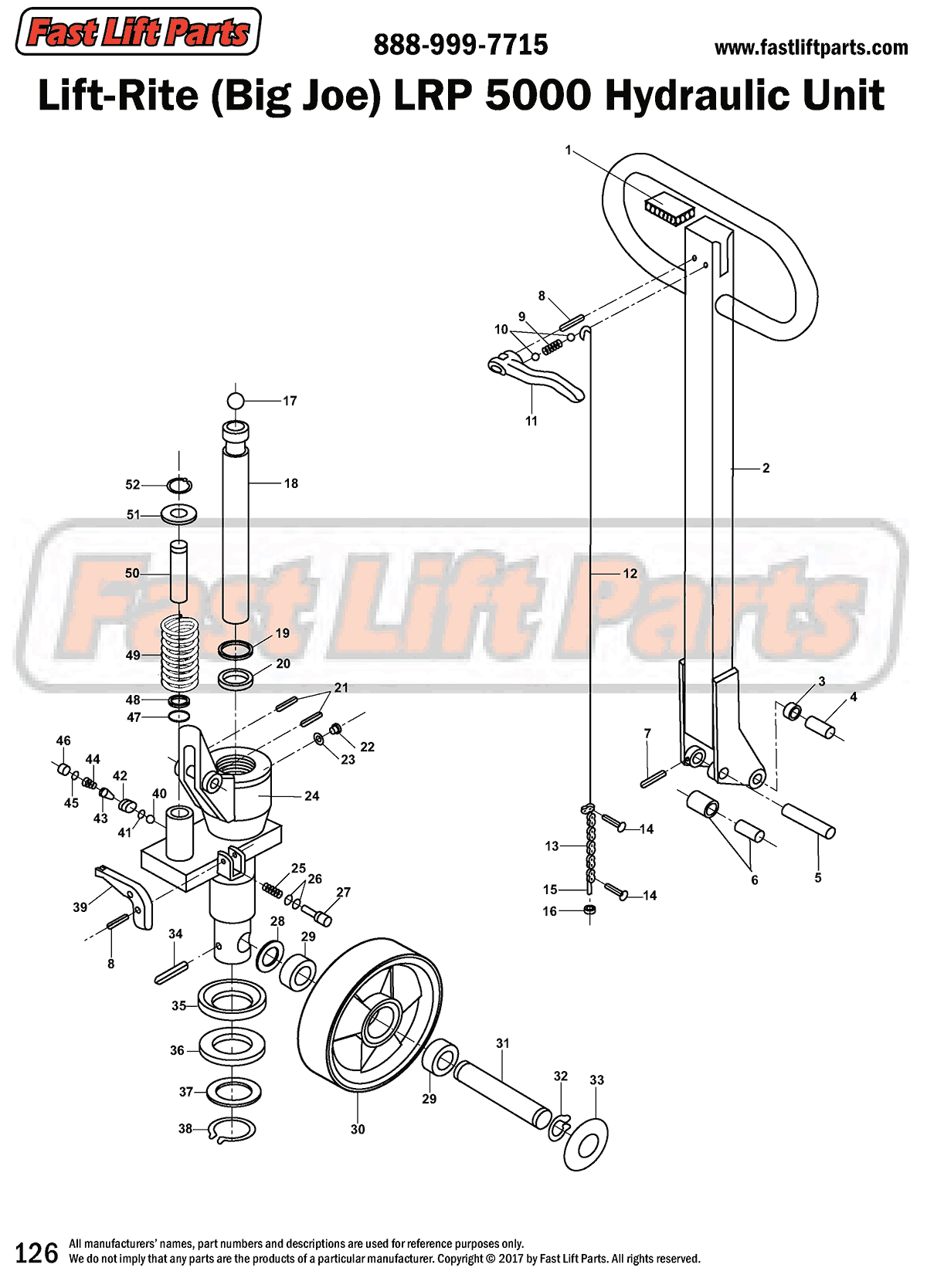

Identify your part using this line drawing of the hydraulic unit.

Locate a part on the frame.

  1. LF PL20274E Handle Cap
  2. LF PL20276 Handle Assembly
    (includes Items 1-16)
  3. LF PL20306 Bushing
  4. LF PL20275 Handle Pin
  5. LF PL20274P Pin
  6. LF PL20274RA Roller
    w/ Bushing
  7. LF PL20274RB Split Pin
  8. LF PL10269 Split Pin
  9. LF PL20274C Spring
  10. LF PL10254 Ball
  11. LF PL20274BD Control Lever
  12. LF PL20274A Control Rod
  13. LF PL20272 Chain
  14. LF PL10273 Pin
  15. LF PL10270 Lower Control Rod
  16. LF PL10271 Adjusting Nut
  17. LF 10254 Ball
  18. LF 20243 Ram Piston
  19. LF 20249 Top Seal
  20. LF 10246 U-Cup
  21. LF 20274S Split Pin
  22. LF 10267 Filler Plug
  23. LF 10259 O-Ring
  24. LF 20277 Hydraulic Unit (Special Order)
  25. LF 10258 Spring
  26. LF 10259 O-Ring
  27. LF 10260 Release Pin
  28. LF 10239 Washer
  29. LF 10238-D Ball Bearing
  30. Steer Wheel Assembly Options
  31. LF 10240-E Steer Wheel Axle
  32. LF 10237 Snap Ring
  33. LF 10236-C Hub Cap
  34. LF 10242 Roll Pin
  35. LF 10233 Spacer
  36. LF 10234 Thrust Bearing
  37. LF 10234-A Washer
  38. LF 10235 Snap Ring
  39. LF 10268 Release Lever
  40. LF 10261-A Ball
  41. LF 10256 O-Ring
  42. LF 20262 Cone Valve
  43. LF 20261 Cone
  44. LF 10264 Spring
  45. LF 10265 O-Ring
  46. LF 10266 Screw Plug
  47. LF 10252 U-Cup
  48. LF 10251 Scraper
  49. LF 20253 Handle Return Spring
  50. LF 10250 Pump Piston Assembly
  51. LF 10250B Spring Cap
  52. LF 10250C Snap Ring
