*Lift-Rite (Big Joe) LCM50, LCU50, LCU4W, LCM4W (Titan Series) Frame

(LCM50, LCU50, LCU4W, LCM4W) Titan Series Frame

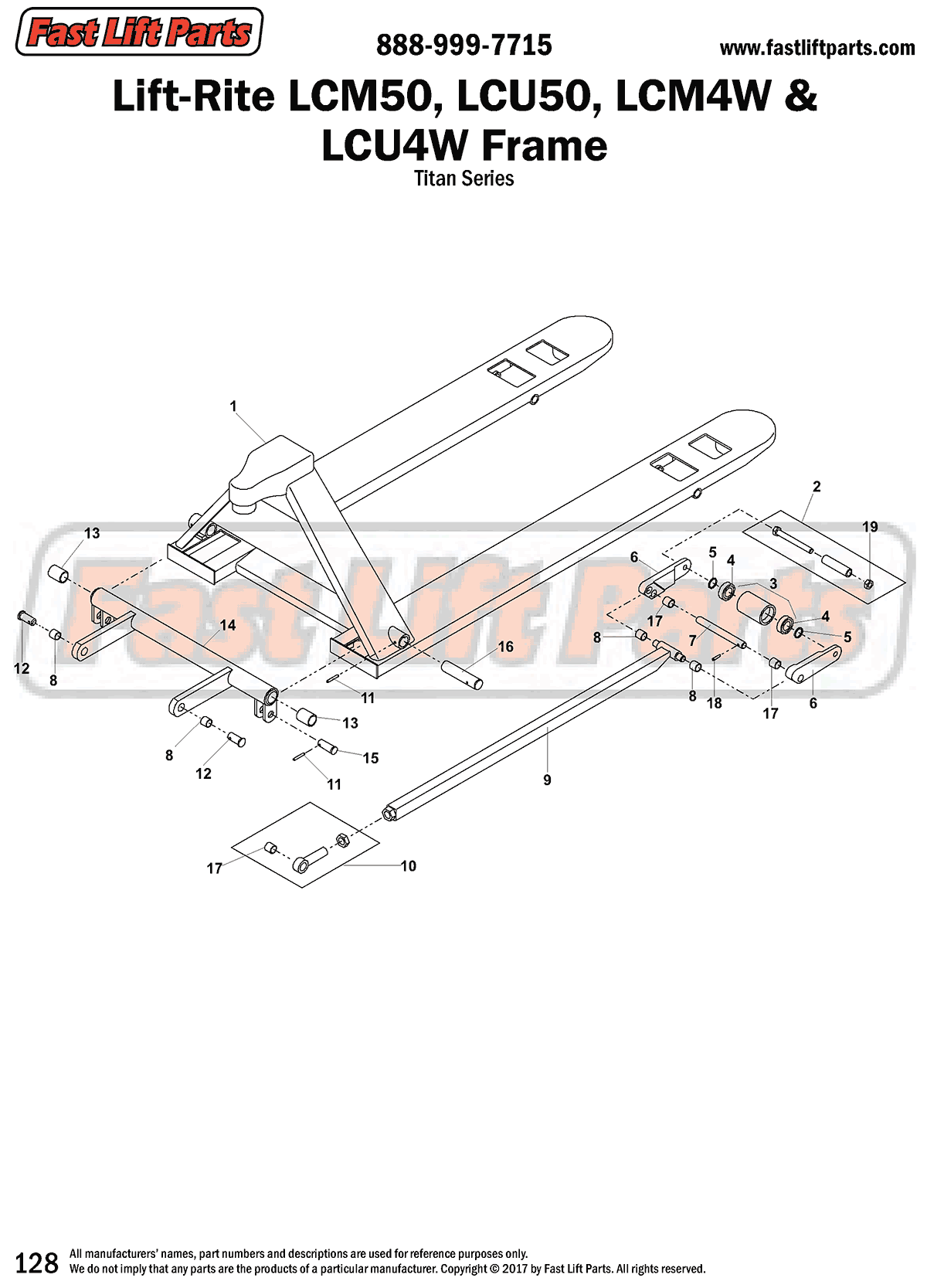

Identify your part using this line drawing of the frame.

Locate a part on the hydraulic unit.

1. LF PM30200 Chassis, LCM50 2" Low Pro
   LF PM30200U Chassis, LCU50 1.75" Ultra Low Pro
   LF PF30200 Chassis LCM4W 2" LH (Specify Length & Width)
   LF PF3200U Chassis LCU4W 1.75" lh (Specify Length & Width)
2. LF PM10215 Axle Assembly
3. LF PM10210S-B Steel Wheel Assy 2" Low Pro (LCM50 & LCM4W)
   LF PM10210P-B Polyurethane Wheel Assy 2" Low Pro (LCM50 & LCM4W)
   GWK-LCMP-LW Poly Load Wheel Kit 2" Low Pro (LCM50 & LCM4W)
   GWK-LCM-LW Steel Load Wheel Kit 2" Low Pro (LCM50 & LCM4W)
   LF PM10210U-B Steel Wheel Assy 1.75" (LCU50 & LCU4W)
   LF PM10210U-P Poly L/W Assy 1.75" (LCU50 & LCU4W)
   GWK-LCUP-LW Poly Load Wheel Kit 1.75"" Low Pro (LCU50 & LCU4W)
   GWK-LCU-LW Steel Load Wheel Kit 1.75"" Low Pro (LCU50 & LCU4W)
4. LF PM10214S Bearings
5. LF PL10216 Spacer Washer
6. LF PM30212 Bracket Assy, LCM50 & LCM4W
   LF PM30212U Bracket Assy, LCU50 & LCU4W
7. LF PM10219 Fork Pin
8. LF PL20206 Bushing
9. LF PM20224X-36 Push Rod, LCM50 & LCM4W
   LF PM20224X-42 Push Rod, LCM50 & LCM4W
   LF PM20224X-48 Push Rod, LCM50 & LCM4W
   LF PM20224X-36U Push Rod LCU50 & LCU4W
   LF PM20224X-42U Push Rod LCU50 & LCU4W
   LF PM20224X-48U Push Rod LCU50 & LCU4W
10. LF PL20226 Eye Bolt
11. LF PL20269 Split Pin
12. LF PL30207 Shoulder Pin
13. LF PL20203A Bushing
14. LF PM30201 Torsion Bar(LCM50 & LCU50 20.5" WIDE)
    LF PM30202 Torsion Bar(LCM50&LCU50 27" WIDE)
    LF PF30203 Torsion Bar 33" Wide (LCM4W & LCU4W)
15. LF PL20227 Shoulder Pin
16. LF PL20204 Bulkhead Pin
17. LF PL20226A Bushing
18. LF PM20269 Split Pin
19. LF PL10218 Lock Nut
