Lift-Rite (Big Joe)

*Lift-Rite (Big Joe) Titan Series Hydraulic Unit

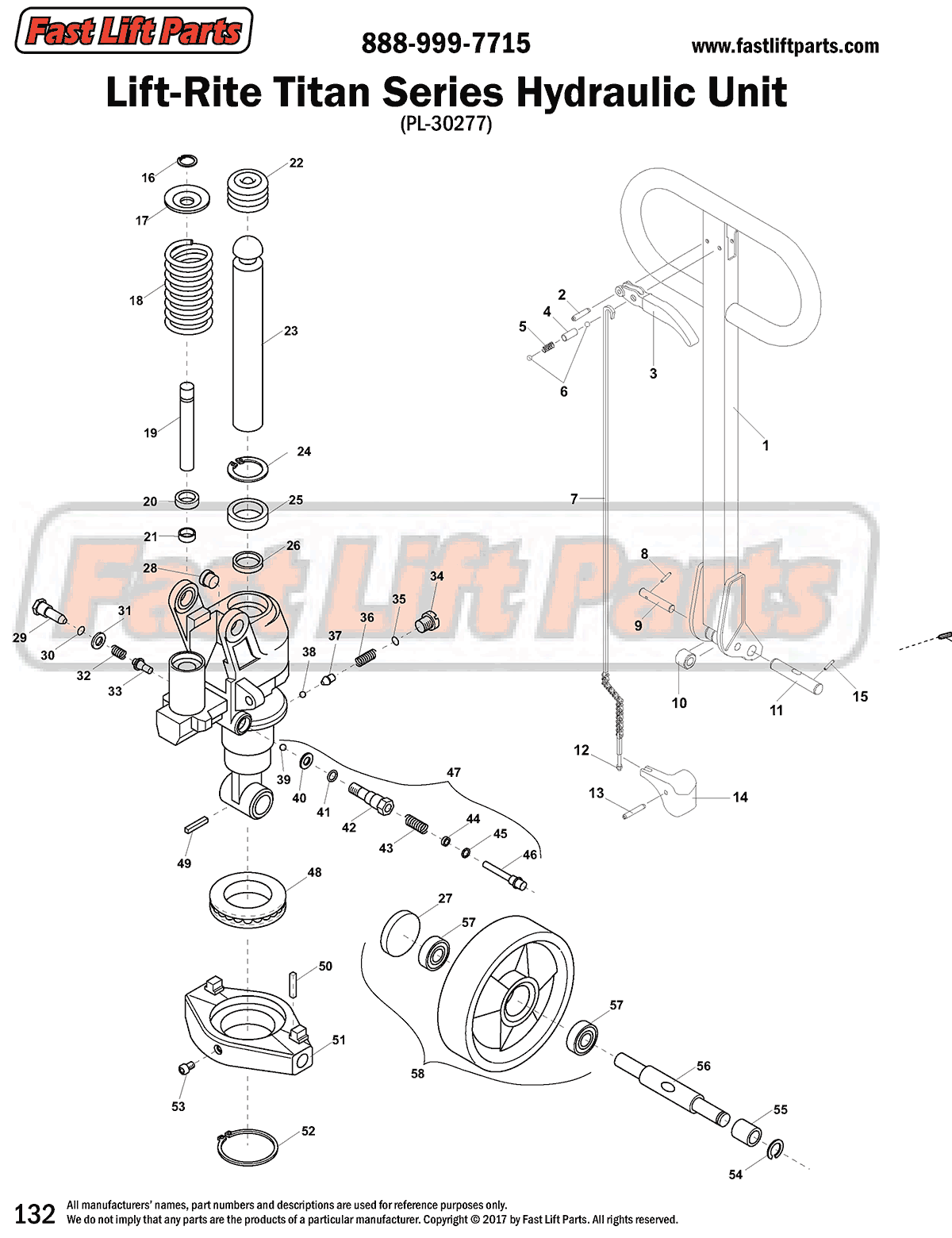

Identify your part using this line drawing of the hydraulic unit.

Locate a part on the frame.

  1. LF PL30276M Handle Assembly
  2. LF 20105 Split Pin
  3. LF PL40274BDM Control Lever
  4. LF 54140 Sleeve
  5. LF 218182 Spring
  6. LF 20065 Chrome Ball
  7. LF 215775 Control Rod Assembly
  8. LF 20461 Split Pin
  9. LF 47930 Axle
  10. LF 202755 Roller W/ Bushing
  11. LF 222750 Axle
  12. LF 21094 Adjusting Nut
  13. LF 220312 Locking Pin
  14. LF 215128 Lowering Arm
  15. LF 156623 Cover
  16. LF 20043 Locking Ring
  17. LF 215282 Washer
  18. LF 215156 Spring
  19. LF 215286 Pump Piston
  20. LF 21060 Wiper Seal
  21. LF 215866 U-Cup
  22. LF 215803 Sleeve
  23. LF 215030 Lift Piston
  24. LF 20642 Locking Ring
  25. LF 20066 Wiper Seal
  26. LF 215867 U-Cup
  27. LF 20014 Locking Pin
  28. LF 215913 Bushing
  29. LF 221586 Screw Plug
  30. LF 24213 O-ring
  31. LF 219201 Washer
  32. LF 39106 Spring
  33. LF 223935 Valve Cone
  34. LF 221232 Overload Valve Screw
  35. LF 22032 O-ring
  36. LF 221227 Over Load Spring
  37. LF 221231 Guide Pin
  38. LF 22055 Overload Ball
  39. LF 20065 Valve Ball
  40. LF 215288 Washer
  41. LF 22032 O-ring
  42. LF 223977 Valve Body
  43. LF 47071 Spring
  44. LF 49513 Spring Guide
  45. LF 22318 U-Cup
  46. LF 47051 Piston
  47. LF 215776 Lowering Valve Kit
  48. LF 213056 Thrust Bearing
  49. LF 220312 Roll Pin
  50. LF 20001 Roll Pin
  51. LF 245552 Thrust Plate
  52. LF 21737 Locking Ring
  53. LF 27662 Grease Fitting
  54. LF 20019 Locking Ring
  55. LF 161637 Spacer (Use with OEM 200965 only)
  56. LF 220310 Axle
  57. LF 22226 Bearing
  58. Steer Wheel Assembly Options

Kit(s):
