*Rol-Lift Series E Frame

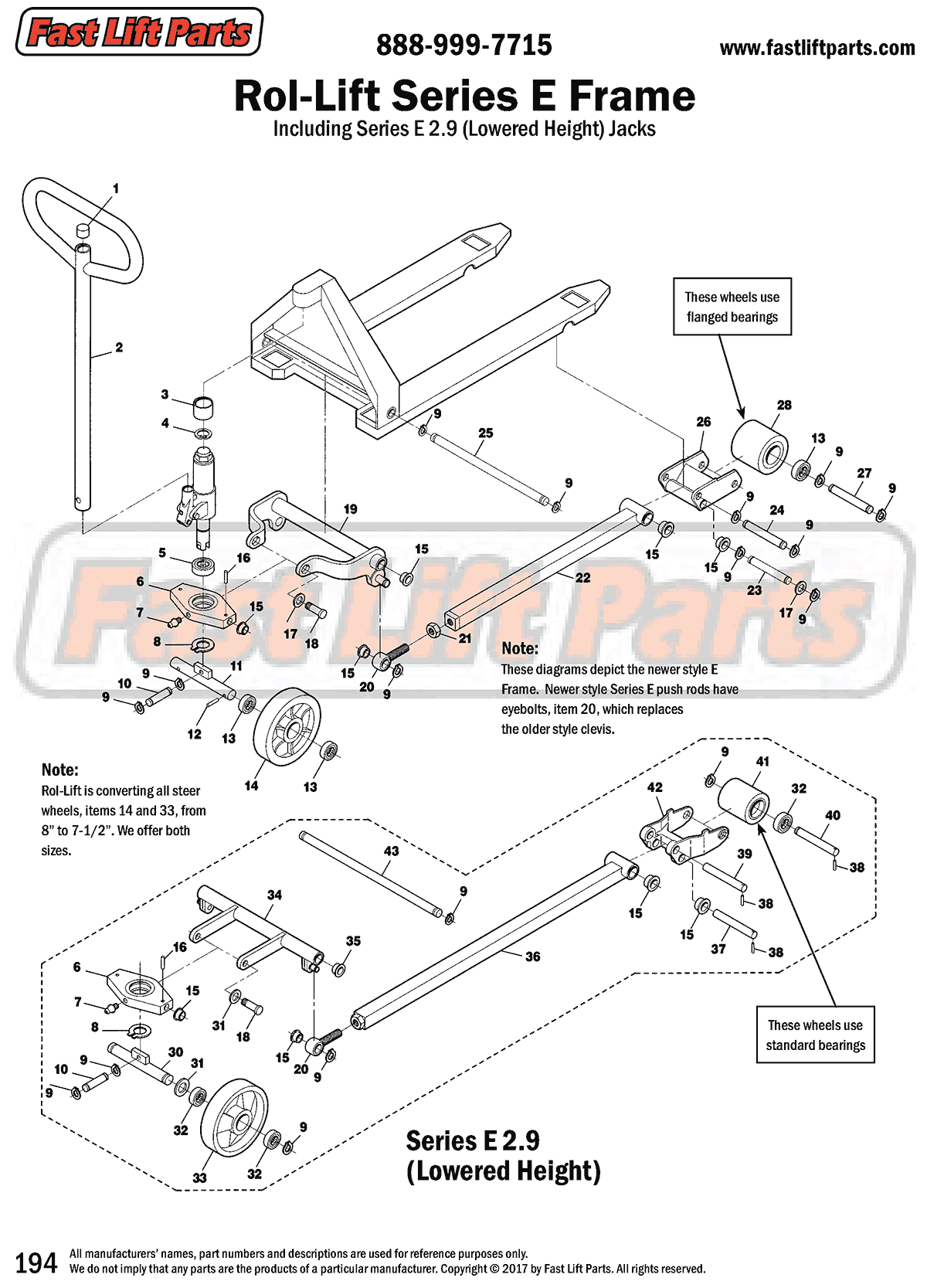

Identify your part using this line drawing of the frame.

Locate a part on the hydraulic unit.

Locate a part on the handle.

  1. RL 3-27137 Handle Plug
  2. RL 7-60017 Handle Frame
  3. RL 4-00103 Bushing
  4. RL 3-11005 Snap Ring
  5. RL 3-70001 Traverse Bearing
  6. No Longer Available
  7. RL 1-20002 Grease Fitting
  8. RL 3-11002 Snap Ring
  9. RL 3-11003 Snap Ring
  10. RL Kit-5144-TPTUM Pin w/ Snap Rings
  11. RL 7-60021 Steer Wheel Axle
  12. RL 3-25801-06 Roll Pin
  13. RL 3-70002 Bearing, Flanged
    RL T-22-WA Bearing, Wet Application
  14. Steer Wheel Assembly Options
  15. RL 3-27020 Bushing
  16. RL 3-25800-07 Roll Pin
  17. RL 3-27021 Washer
  18. RL 4-00107 Shoulder Pin
  19. No Longer Available
  20. RL PHR-5010-TPTUM Eye Bolt
  21. RL 3-50002 Nut
  22. RL 7-10041-03 Push Rod
  23. RL 4-61036 Pivot Axle,7" forks
    RL 4-00102 Pivot Axle,6" forks
  24. RL 4-00100 Push Rod Axle,7" forks
    RL 4-00101 Push Rod Axle,6" forks
  25. RL 4-00106-01 Lifting Link Shaft
  26. RL 4-00089-HD Load Roller Bracket
  27. RL 4-00100 Load Roller Axle
  28. Load Roller Assembly Options
  29. RL KIT-5090-TPTUM Steer Wheel Axle Assy
  30. RL 3-10203 Washer
  31. RL BRG5000-TPTUM Bearing
  32. RL WHL-5012-TPTUM-HD Steer Wheel Assy
  33. RL KIT-5099-EPTFM Lifting Link
  34. RL BSH-5001-TPTUM Bushing
  35. No Longer Available
  36. RL PNB-5025-TPTUM Pivot Axle,7" forks
    RL PNB-5020-TPTUM Pivot Axle,6" forks
  37. RL 3-25801-06 Roll Pin
  38. RL PNB-5019-TPTUM Push Rod Axle
  39. RL KIT-5136-TPTUM Load Roller Axle
  40. Load Roller Assembly Options
  41. No Longer Available
  42. RL KIT-5127-EPTUM Lifting Link Shaft
