*Rol-Lift Series E Handle

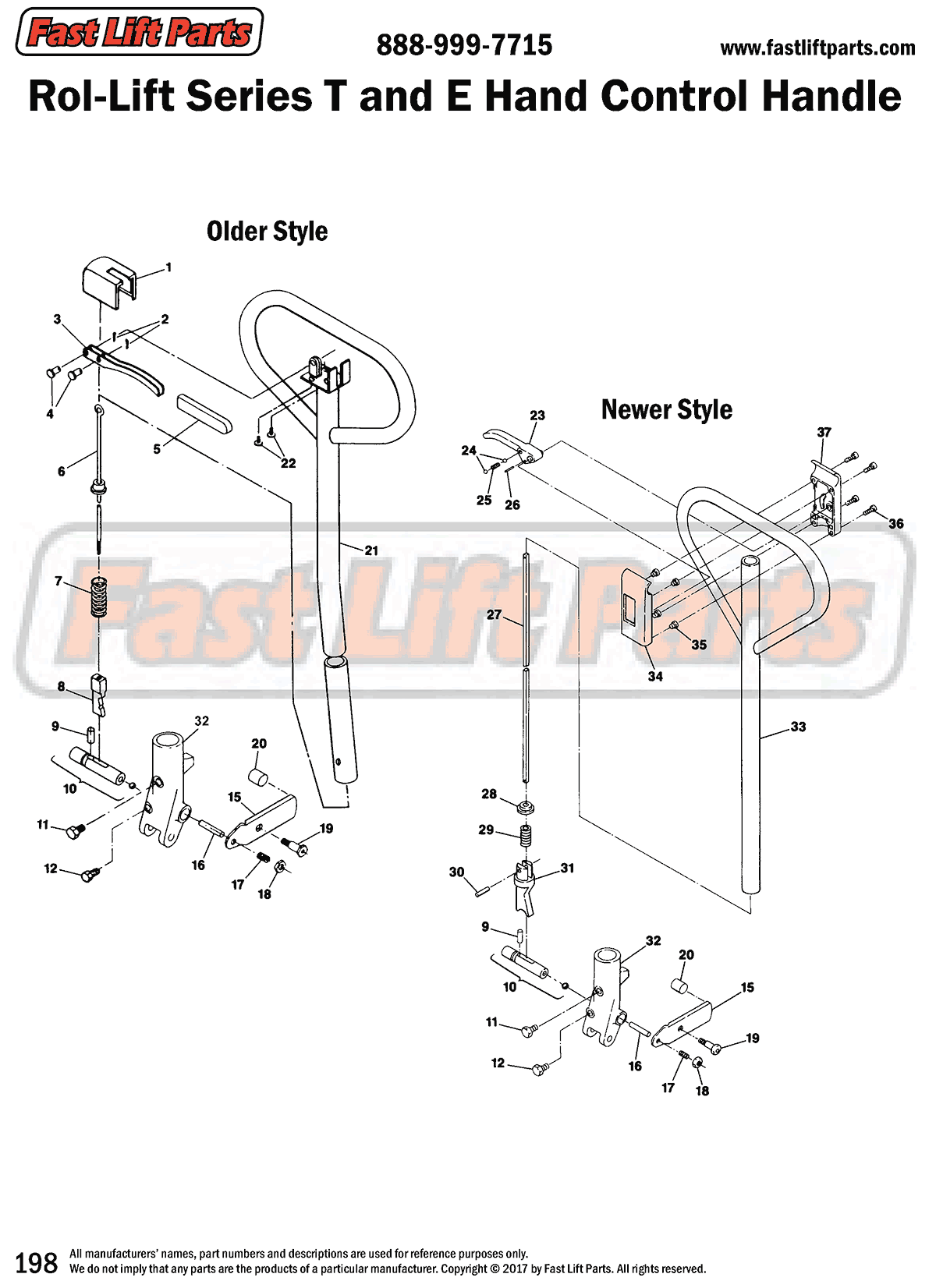

Identify your part using this line drawing of the frame.

Locate a part on the hydraulic unit.

Locate a part on the frame.

  1. No Longer Available
  2. RL 3-25500 Cotter Pin
  3. No Longer Available
  4. RL 3-60000 Pin
  5. No Longer Available
  6. RL 7-00008 Control Rod
  7. RL 3-20001 Spring
  8. RL 3-27003 Actuator
  9. RL 3-27010 Pivot Shaft
  10. RL 3-27163-S Pivot Shaft Assembly
  11. RL 3-02000-03 Handle Bolt
  12. RL 3-04501-07 Set Screw
  13. RL 7-30048 Fulcrum Bar
  14. No Longer Available
  15. RL 3-08006-04 Adjusting Screw
  16. RL 3-50064 Nut
  17. RL 3-00087-04 Bolt
  18. RL 4-00078 Pin
  19. No Longer Available
  20. RL 3-09998 Screw
  21. RL 3-27133 Control Lever - No Longer Available
  22. RL 3-30000 Ball
  23. RL 3-20017 Spring
  24. RL 3-25750-07 Roll Pin
  25. RL 3-27166 Control Rod
  26. RL 3-27134 Spring Retainer (No Longer Available)
  27. RL 3-20016 Spring
  28. RL 3-25750-05 Roll Pin
  29. RL 3-27138 Actuator
  30. RL 4-60082 Handle Socket (Hand Control)
    RL 4-60072 Handle Socket (Foot Control)
  31. No Longer Available
  32. No Longer Available
  33. RL 3-51001 Spacer
  34. RL 3-00006-04 Screw
  35. No Longer Available
