• Uline H-1043, H-1193, H-1366, H-1484 Frame Line Drawing
1 1

Uline

*Uline H-1043, H-1193, H-1366, H-1484 Frame

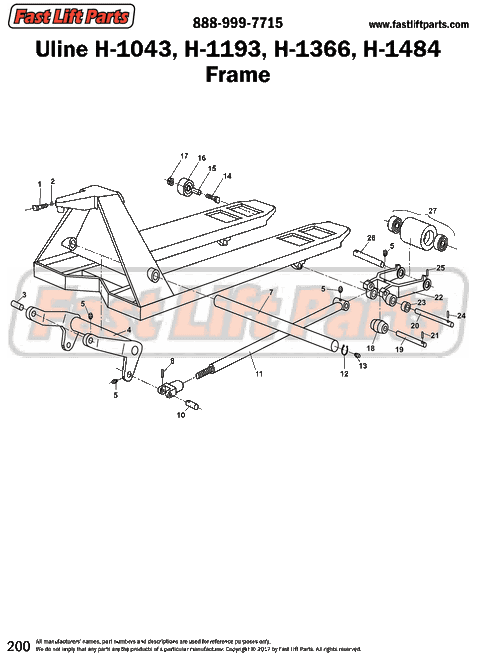

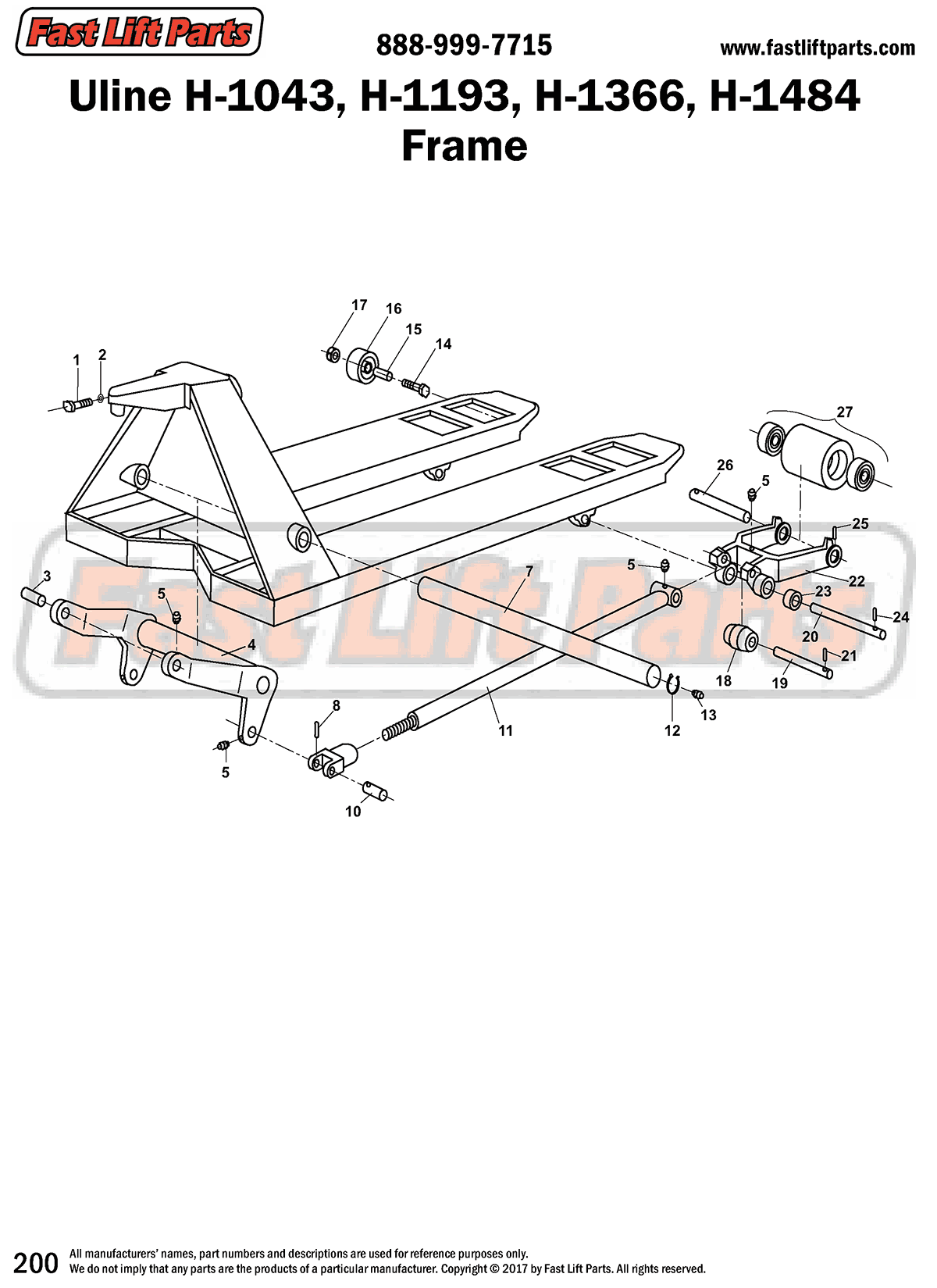

Identify your part using this line drawing of the frame.

Locate a part on the hydraulic unit.

  1. UE H-1043-B42 Bolt
  2. UE H-1043-B4 Lock Washer
  3. UE H-1043-B14 Pin
  4. UE H-1043-B43 Lifting Link 27 inch wide jack , H-1043 & H-1484
  5. UE H-1193-B43 Lifting Link 21 Inch wide jack, H-1193 & H-1366
  6. UE H-1193-B15 Lube Fitting
  7. UE H-1043-B20 Long Shaft 27 Inch wide jack, H-1043 & H-1484
  8. UE H-1193-B20 Long Shaft 21 Inch wide jack, H-1193 & H-1366
  9. UE H-1483-B16 Spring Pin
  10. UE H-1483-B17 Rod Fitting, Joint
  11. UE H-1043-B18 Pin
  12. UE H-1483-B19 Push Rod 48 Inch Fork, H-1043 & H-1193
  13. UE H-1043-B21 Retaining Ring
  14. UE H-1193-B15 Lube Fitting
  15. UE H-1043-B36 Bolt
  16. UE H-1043-B37 Roller Sleeve
  17. UE H-1043-B38 Entry Roller
  18. UE H-1043-B39 Lock Nut
  19. UE H-1043-B23 Exit Roller
  20. UE H-1043-B25 Shaft
  21. UE H-1043-B26 Pivot Shaft
  22. UE H-1043-B24 Spring Pin
  23. UE H-1043-B31 Load Wheel Bracket
  24. UE H-1043-B28 Exit Roller Ring
  25. UE H-1043-B27 Spring Pin
  26. UE H-1043-B30 Spring Pin
  27. UE H-1043-B29 Axle Shaft
  28. Load Wheel Assembly Options

This item is either out of stock or cannot be ordered online. Please call to confirm price, availability, and/or freight costs.
