*Uline H-1043, H-1193, H-1366, H-1484 Hydraulic Unit

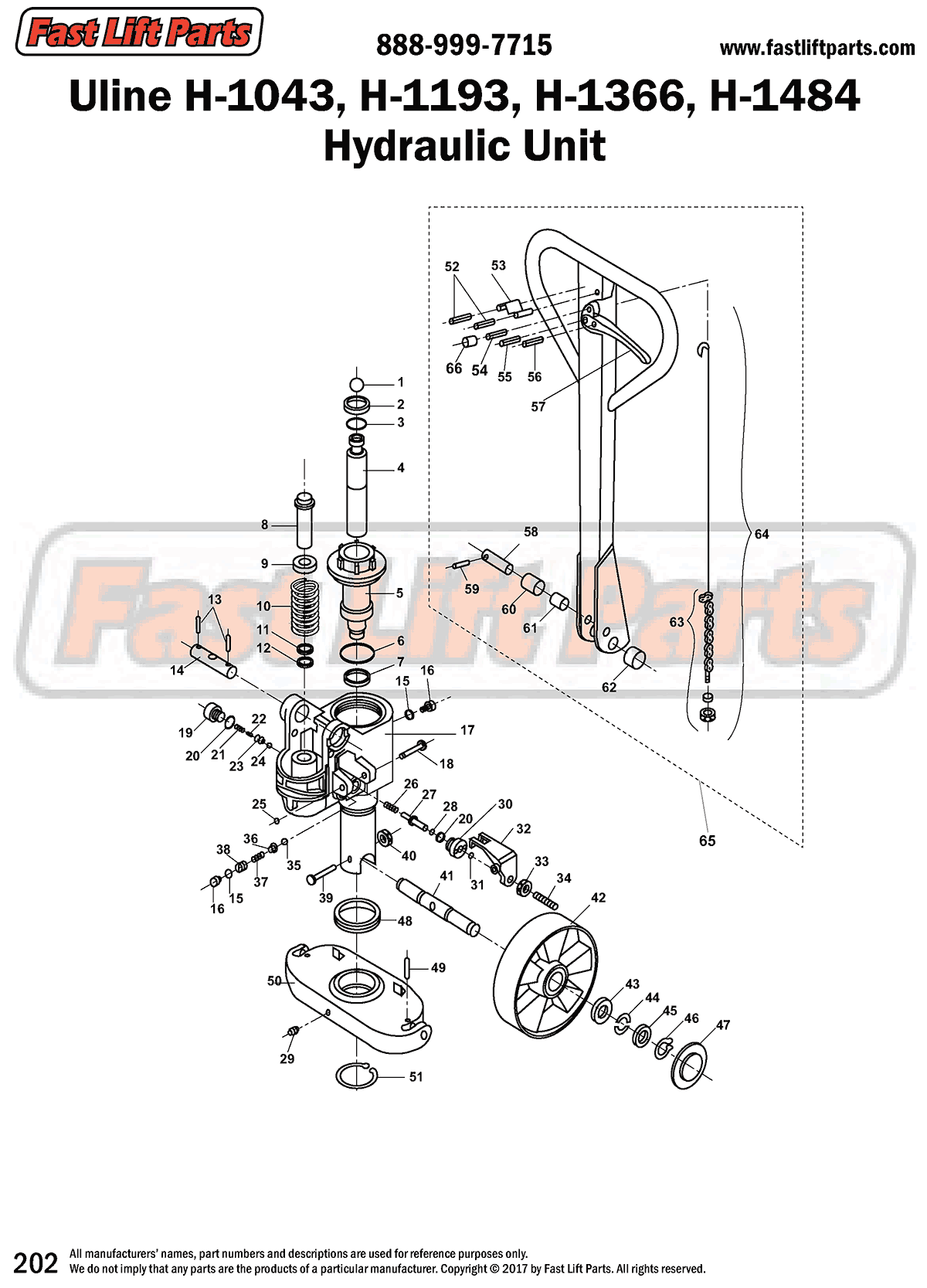

Identify your part using this line drawing of the Hydraulic Unit.

Locate a part on the frame.

  1. UE H-1043-B146 Ball
  2. UE H-1043-B145 Wiper
  3. UE H-1043-B144 O-ring
  4. UE H-1043-B152 Piston Rod
  5. UE H-1043-B143 Cylinder Cap
  6. UE H-1043-B142 O-ring
  7. UE H-1043-B141 U-Cup
  8. UE H-1043-B147 Pump Piston
  9. UE H-1043-B148 Spring Cap
  10. UE H-1043-B149 Spring
  11. UE H-1043-B150 Wiper
  12. UE H-1043-B151 U-Cup
  13. UE H-1043-B117 Spring Pin
  14. UE H-1043-B118 Handle Axle
  15. UE H-1043-B126 Copper Washer
  16. UE H-1043-B127 Plug Bolt
  17. UE H-1043-BP100 Pump Assembly Complete
  18. UE H-1043-B140 Pin
  19. UE H-1043-B119 Screw Plug
  20. UE H-1043-B120 Copper Washer
  21. UE H-1043-B121 Spring
  22. UE H-1193-B122 Spindle Damping Valve
  23. UE H-1193-B123 Damping Valve Seat
  24. UE H-1043-B124 Ball
  25. UE H-1043-B153 Retaining Ring
  26. UE H-1193-B128 Spring
  27. UE H-1193-B129 Release Pin
  28. UE H-1193-B130 O-ring
  29. UE H-1043-B15 Lube Fitting
  30. UE H-1043-B131 Sleeve
  31. UE H-1043-B132 O-ring
  32. UE H-1043-B135 Lever Plate
  33. UE H-1043-B134 Nut
  34. UE H-1043-B133 Set Screw
  35. UE H-1043-B139 Ball
  36. UE H-1043-B138 Ball Base
  37. UE H-1043-B137 Spring
  38. UE H-1043-B136 Adjustment Screw
  39. UE H-1043-B3 Bolt
  40. UE H-1043-B44 Lock Nut
  41. UE H-1366-B2 Axle
  42. Steer Wheel Assembly Options
  43. UE H-1043-B9 Bearing
  44. UE H-1365-B10 Half Circle Washer
  45. UE H-1366-B11 Washer
  46. UE H-1366-B12 Retaining Ring
  47. UE H-1043-B13 Dust Cover
  48. UE H-1365-B4 Thrust Bearing
  49. UE H-1365-B6 Spring Pin
  50. UE H-1043-B5 Traverse
  51. UE H-1043-B7 Retaining Ring
  52. UE H-1043-B102 Roll Pin
  53. UE H-1043-B101 Blade Spring
  54. UE H-1043-B104 Roll Pin
  55. UE H-1043-B105 Roll Pin
  56. UE H-1043-B106 Roll Pin
  57. UE H-1043-B107 Control Lever
  58. UE H-1043-B109 Handle Pin
  59. UE H-1043-B110 Roll Pin
  60. UE H-1043-B111 Roller
  61. UE H-1043-B112 Bushing
  62. UE H-1043-B114 Handle Bushing
  63. UE H-1043-B115 Chain, Adjustment Pin & Nut
  64. UE H-1043-B113A Control Rod Assembly
  65. UE H-1043-SHC Handle Assembly Complete Inc. 52-64
  66. UE H-1043-B103 Lever Roller
  67. UE H-1043-BK100 Seal Kit (Not Shown)

This item is either out of stock or cannot be ordered online. Please call to confirm price, availability, and/or freight costs.
