• Valu-Jack 5500 & 6600 Backrest & Brake Line Drawing
1 1

Valu-Jack

*Valu-Jack 5500 & 6600 Backrest & Brake

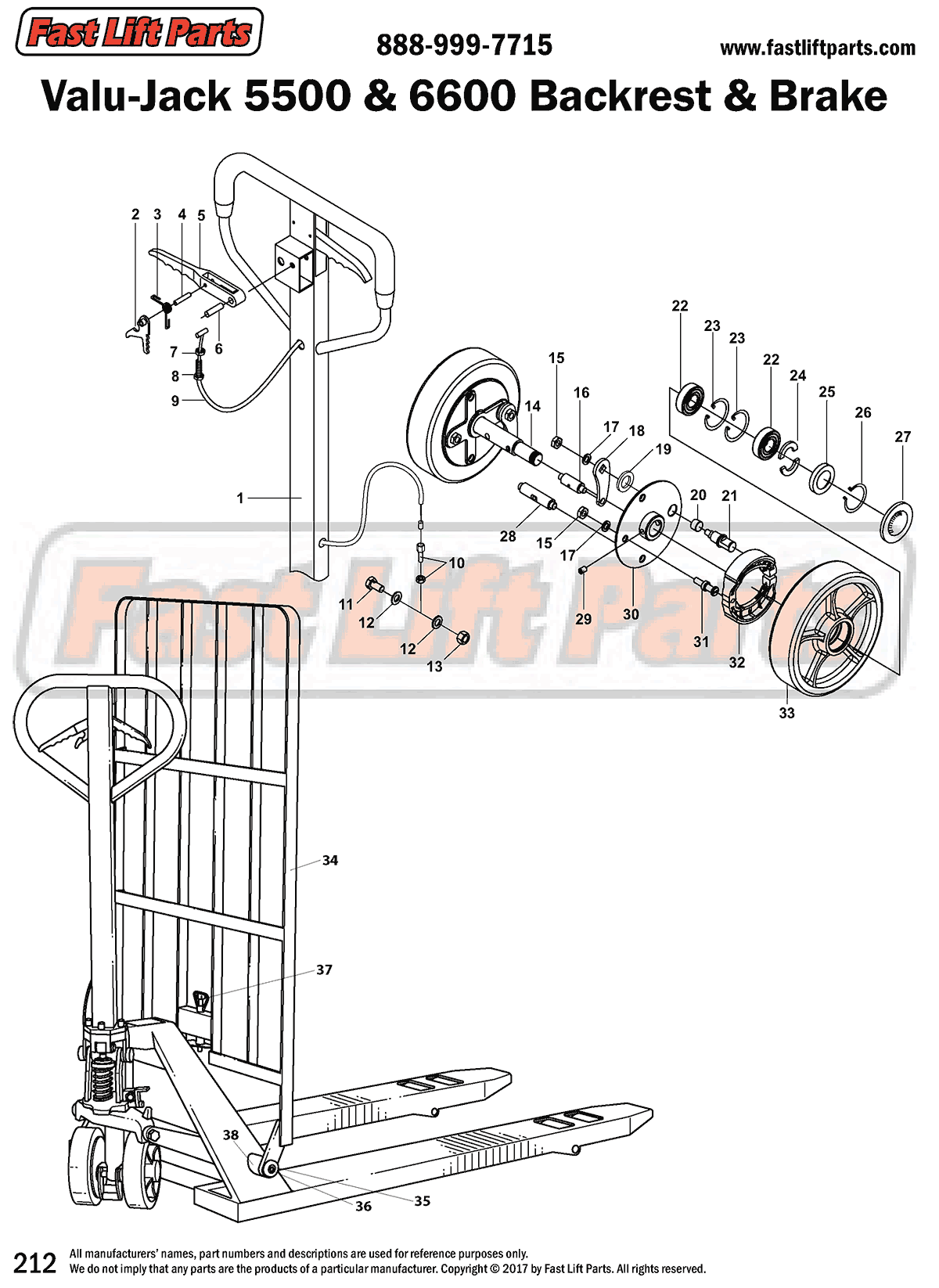

Identify your part using this line drawing of the backrest & Brake.

Locate a part on hydraulic unit.

Locate a part on the frame.

  1. VJ 66S9 Brake Handle Frame
  2. VJ 66S1 Locking Lever
  3. VJ 66S2 Spring
  4. VJ 66S3 Spring Pin
  5. VJ 66S4 Brake Lever
  6. VJ 66S5 Spring Pin
  7. VJ 66S6 Nut
  8. VJ 66S7 Bolt
  9. VJ 66S8 Brake Cable
    (Includes Items 7-15)
  10. VJ 66S21 Cable Adjuster
  11. VJ 66S10 Bolt
  12. VJ 66S11 Washer
  13. VJ 66S12 Nut
  14. VJ 66S26 Shaft
  15. VJ 66S14 Nut
  16. VJ 66S27 Shaft
  17. VJ 66S16 Washer
  18. VJ 66S28 Lever Plate
  19. VJ 66S35 Washer
  20. VJ 66S24 Bushing
  21. VJ 66S25 Shaft
  22. VJ 66S29 Bearing
  23. VJ 66S30 Snap Ring
  24. VJ 66S31 Split Ring
  25. VJ 66S32 Washer
  26. VJ 66S33 Snap Ring
  27. VJ 66S34 Dust Cover
  28. VJ 66S13 Shaft
  29. VJ 66S15 Set Screw
  30. VJ 66S17 Brake Plate
  31. VJ 66S18 Stud
  32. VJ 66S19 Brake Shoe
  33. VJ 66S20 Wheel
  34. VJ 66S38 Backrest
  35. VJ 66S36 Bushing
  36. VJ 66S37 Bolt
  37. VJ 66S39 Backrest Locking Pin (Includes Spring)
  38. VJ 66S40 Lifting Link Shaft
